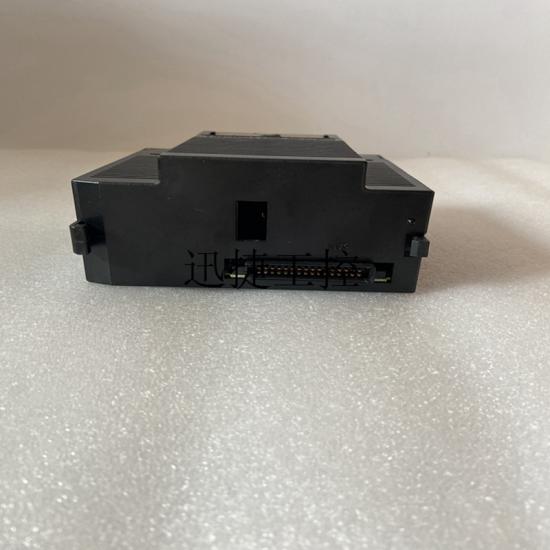

GE IS220PVIBH1A Mark VIe Vibration Monitor I/O Pack

Product Overview:
The GE IS220PVIBH1A is a PVIB Vibration Monitor I/O Pack for the GE Mark VIe turbine control system. It provides the electrical interface between the I/O Ethernet network and the TVBA Vibration Terminal Board, acquiring vibration, proximity, and Keyphasor signals from rotating machinery.

Key Technical Specifications

Parameter	Specification
Brand	GE General Electric
Model	IS220PVIBH1A
Functional Acronym	PVIB
Product Type	Vibration Monitor I/O Pack
Series	Mark VIe
Input Channels	13 differential channels
Channels 1–8	Proximity, Velomitor, seismic, integrated-output accelerometer*
Channels 9–12	Proximity
Channel 13	Keyphasor or proximity
Ethernet	2 × RJ45, 10/100 Mbps
Terminal Board	TVBA Vibration Terminal Board
Probe Power	-24 VDC, 12 mA per transducer
Frame Rates	3.125 / 6.25 / 12.5 / 25 / 50 / 100 Hz
Operating Temperature	-30 to +65°C
Indicators	ATTENTION, POWER, LINK, Tx/Rx
Processor	BPPB
Architecture	Simplex / TMR compatible

*Integrated-output accelerometers are supported on channels 1–3.

Advantages & Features

13-channel vibration and proximity signal acquisition
Supports Keyphasor monitoring
Compatible with GE TVBA Vibration Terminal Board
Dual Ethernet communication capability
Supports simplex and TMR configurations
Designed for continuous rotating-machinery condition monitoring
Suitable for turbine vibration and shaft-position measurement
Built-in diagnostic LEDs for power and communication status

Typical Applications

Gas and steam turbine monitoring
Generator vibration monitoring
Bearing vibration measurement
Shaft displacement monitoring
Rotating machinery condition monitoring
Compressor and pump monitoring
GE Mark VIe turbine control systems

Important Precautions

Verify compatibility with the TVBA terminal board; PVIBH1A is not designed for the TVIB terminal board.
Confirm sensor type and channel assignment before installation.
Verify the required firmware and ControlST version.
IS220PVIBH1A is a legacy BPPB-based version; GE transitioned this product to the newer IS420PVIBH1B platform.
Do not assume IS420PVIBH1B is a direct plug-and-play replacement; terminal-board, firmware, ControlST, and configuration requirements should be checked.
