                                                                                                                                                                                                                                                                                                                                                                                                                              GE IS220PHRAH1A Mark VIe HART Analog I/O Pack

                                                                                                                                                                                                                                                                                                                                                                                                                              Product Overview:
                                                                                                                                                                                                                                                                                                                                                                                                                              The GE IS220PHRAH1A is a HART-enabled Analog I/O Pack for the GE Mark VIe turbine control system. It provides the electrical interface between the Mark VIe I/O Ethernet network and compatible analog terminal boards. It supports 10 analog inputs and 2 analog outputs and is designed for simplex operation.

                                                                                                                                                                                                                                                                                                                                                                                                                              Key Technical Specifications

                                                                                                                                                                                                                                                                                                                                                                                                                              Parameter Specification
                                                                                                                                                                                                                                                                                                                                                                                                                              Brand GE General Electric
                                                                                                                                                                                                                                                                                                                                                                                                                              Model IS220PHRAH1A
                                                                                                                                                                                                                                                                                                                                                                                                                              Functional Acronym PHRA
                                                                                                                                                                                                                                                                                                                                                                                                                              Product Type HART-Enabled Analog I/O Pack
                                                                                                                                                                                                                                                                                                                                                                                                                              Series Mark VIe
                                                                                                                                                                                                                                                                                                                                                                                                                              Configuration Simplex
                                                                                                                                                                                                                                                                                                                                                                                                                              Analog Inputs 10
                                                                                                                                                                                                                                                                                                                                                                                                                              Analog Outputs 2
                                                                                                                                                                                                                                                                                                                                                                                                                              AI Channels 1–8 ±5 VDC or 0–20 mA
                                                                                                                                                                                                                                                                                                                                                                                                                              AI Channels 9–10 ±5 VDC or -1 to 20 mA
                                                                                                                                                                                                                                                                                                                                                                                                                              Analog Outputs 0–20 mA
                                                                                                                                                                                                                                                                                                                                                                                                                              Resolution 16-bit
                                                                                                                                                                                                                                                                                                                                                                                                                              Power Supply 28 VDC nominal
                                                                                                                                                                                                                                                                                                                                                                                                                              Input Power Range 27.4–28.6 VDC
                                                                                                                                                                                                                                                                                                                                                                                                                              Max Supply Current 0.5 A
                                                                                                                                                                                                                                                                                                                                                                                                                              Transmitter Supply 24 VDC nominal
                                                                                                                                                                                                                                                                                                                                                                                                                              I/O Network Dual RJ45 IONet
                                                                                                                                                                                                                                                                                                                                                                                                                              Compatible Terminal Boards IS200SHRAH1A / IS200SHRAH2A

                                                                                                                                                                                                                                                                                                                                                                                                                              GE documentation confirms the electrical ratings and compatible SHRAH terminal boards.

                                                                                                                                                                                                                                                                                                                                                                                                                              Advantages & Features

                                                                                                                                                                                                                                                                                                                                                                                                                              • HART-enabled analog I/O for Mark VIe
                                                                                                                                                                                                                                                                                                                                                                                                                              • Supports 10 AI + 2 AO
                                                                                                                                                                                                                                                                                                                                                                                                                              • Flexible voltage/current input configuration
                                                                                                                                                                                                                                                                                                                                                                                                                              • Supports HART communication with compatible field devices
                                                                                                                                                                                                                                                                                                                                                                                                                              • Dual Ethernet I/O network interfaces
                                                                                                                                                                                                                                                                                                                                                                                                                              • 16-bit analog conversion
                                                                                                                                                                                                                                                                                                                                                                                                                              • Designed for industrial turbine-control applications
                                                                                                                                                                                                                                                                                                                                                                                                                              • Simplex configuration for straightforward I/O deployment

                                                                                                                                                                                                                                                                                                                                                                                                                              Typical Applications

                                                                                                                                                                                                                                                                                                                                                                                                                              • Gas turbine control systems
                                                                                                                                                                                                                                                                                                                                                                                                                              • Steam turbine control
                                                                                                                                                                                                                                                                                                                                                                                                                              • Generator control and monitoring
                                                                                                                                                                                                                                                                                                                                                                                                                              • Process instrumentation
                                                                                                                                                                                                                                                                                                                                                                                                                              • 4–20 mA transmitter interfacing
                                                                                                                                                                                                                                                                                                                                                                                                                              • HART-enabled field instruments
                                                                                                                                                                                                                                                                                                                                                                                                                              • GE Mark VIe turbine control cabinets

                                                                                                                                                                                                                                                                                                                                                                                                                              Important Precautions

                                                                                                                                                                                                                                                                                                                                                                                                                              • Verify the exact IS220PHRAH1A model and revision before replacement.
                                                                                                                                                                                                                                                                                                                                                                                                                              • Compatible terminal boards include IS200SHRAH1A and IS200SHRAH2A.
                                                                                                                                                                                                                                                                                                                                                                                                                              • Do not exceed the specified 28 VDC nominal power supply range.
                                                                                                                                                                                                                                                                                                                                                                                                                              • Confirm whether each input is configured for voltage or current before wiring.
                                                                                                                                                                                                                                                                                                                                                                                                                              • The IS220PHRAH1A is a simplex I/O pack; do not assume it is interchangeable with TMR configurations.
                                                                                                                                                                                                                                                                                                                                                                                                                              • Verify HART requirements and terminal-board compatibility before installation.

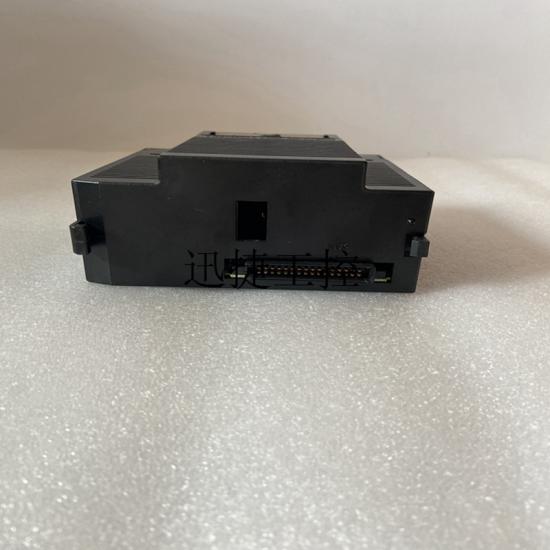

The structure and details of the product：
