                                                                                                                                                                                                            • GE IC755CBS15CDA HMI Panel

                                                                                                                                                                                                              Product Overview

                                                                                                                                                                                                              The GE IC755CBS15CDA is a QuickPanel+ Industrial HMI Operator Interface Panel developed by GE Intelligent Platforms (now Emerson Automation Solutions). It is designed for industrial automation systems, providing operator visualization, machine control, data monitoring, and PLC communication functions.

                                                                                                                                                                                                              The unit features a 15-inch TFT color touchscreen display, embedded control capability, and multiple communication interfaces, making it suitable for factory automation and process control applications.

                                                                                                                                                                                                              ---

                                                                                                                                                                                                              Main Specifications

                                                                                                                                                                                                              • Manufacturer: GE Intelligent Platforms / Emerson Automation Solutions
                                                                                                                                                                                                              • Model: IC755CBS15CDA
                                                                                                                                                                                                              • Series: QuickPanel+
                                                                                                                                                                                                              • Product Type:
                                                                                                                                                                                                                • Industrial HMI Panel
                                                                                                                                                                                                                • Operator Interface Terminal
                                                                                                                                                                                                                • Touchscreen Control Panel
                                                                                                                                                                                                              • Display Size: 15 inch TFT LCD
                                                                                                                                                                                                              • Resolution: 1024 × 768 pixels (XGA)
                                                                                                                                                                                                              • Touch Type: Projected Capacitive Touch
                                                                                                                                                                                                              • Touch Function: Two-point Multi-Touch
                                                                                                                                                                                                              • Bezel Type: Blank Bezel
                                                                                                                                                                                                              • Power Supply: 12/24 VDC

                                                                                                                                                                                                              ---

                                                                                                                                                                                                              Hardware Specifications

                                                                                                                                                                                                              Processor & Memory

                                                                                                                                                                                                              • Processor: ARM Cortex-A8
                                                                                                                                                                                                              • CPU Frequency: 1 GHz
                                                                                                                                                                                                              • RAM: 1 GB DDR3 SDRAM
                                                                                                                                                                                                              • Flash Memory: 512 MB SLC NAND Flash
                                                                                                                                                                                                              • SRAM: 512 KB Battery-backed SRAM
                                                                                                                                                                                                              • Operating System: Windows Embedded Compact 7

                                                                                                                                                                                                              ---

                                                                                                                                                                                                              Communication Interfaces

                                                                                                                                                                                                              Supports multiple industrial communication methods:

                                                                                                                                                                                                              • Ethernet:
                                                                                                                                                                                                                • 2 × 10/100Base-T RJ45 ports
                                                                                                                                                                                                              • Serial Communication:
                                                                                                                                                                                                                • 1 × RS-232
                                                                                                                                                                                                                • 1 × RS-232/RS-485
                                                                                                                                                                                                              • USB:
                                                                                                                                                                                                                • 2 × USB 2.0 Host
                                                                                                                                                                                                                • 1 × USB 2.0 Device
                                                                                                                                                                                                              • Storage:
                                                                                                                                                                                                                • SD/SDHC card slot

                                                                                                                                                                                                              ---

                                                                                                                                                                                                              Functional Features

                                                                                                                                                                                                              The IC755CBS15CDA provides:

                                                                                                                                                                                                              • Industrial machine visualization
                                                                                                                                                                                                              • PLC data monitoring
                                                                                                                                                                                                              • Operator command input
                                                                                                                                                                                                              • Alarm and status display
                                                                                                                                                                                                              • Recipe management
                                                                                                                                                                                                              • Data logging
                                                                                                                                                                                                              • Remote access capability
                                                                                                                                                                                                              • Gateway and controller functions



                                                                                                                                                                                                              ---

                                                                                                                                                                                                              Features & Advantages

                                                                                                                                                                                                              • Original GE QuickPanel+ HMI system
                                                                                                                                                                                                              • Large 15-inch touchscreen display
                                                                                                                                                                                                              • High-performance ARM processor
                                                                                                                                                                                                              • Multi-touch operation for smooth user interaction
                                                                                                                                                                                                              • Multiple communication interfaces for PLC integration
                                                                                                                                                                                                              • Supports industrial automation software
                                                                                                                                                                                                              • Combines HMI, control, gateway, and data management functions
                                                                                                                                                                                                              • Designed for continuous industrial operation



                                                                                                                                                                                                              ---

                                                                                                                                                                                                              Applications

                                                                                                                                                                                                              Used in:

                                                                                                                                                                                                              • Factory automation
                                                                                                                                                                                                              • Manufacturing production lines
                                                                                                                                                                                                              • Packaging machinery
                                                                                                                                                                                                              • Process control systems
                                                                                                                                                                                                              • Energy management systems
                                                                                                                                                                                                              • Industrial equipment monitoring

                                                                                                                                                                                                              Typical applications:

                                                                                                                                                                                                              • PLC operator stations
                                                                                                                                                                                                              • Machine control interfaces
                                                                                                                                                                                                              • Production monitoring
                                                                                                                                                                                                              • Alarm management
                                                                                                                                                                                                              • Industrial data visualization

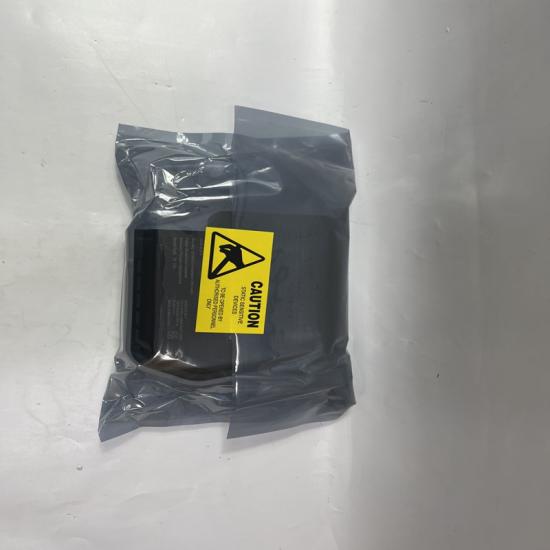

The structure and details of the product：
