• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • GE IC695ETM001 Ethernet Interface Module

                                                            Overview

                                                            IC695ETM001 is a single-port industrial Ethernet communication module for Emerson PACSystems RX3i PLC (formerly GE Fanuc). It expands independent high-speed Ethernet communication channels outside the CPU’s built-in Ethernet port, dedicated to data interaction with upper HMI, SCADA, remote PLCs and third-party intelligent devices. It supports multiple industrial Ethernet protocols and works with all RX3i backplanes for process and power automation systems.

                                                            Specifications

                                                            • Interface: Single RJ45 10/100 Mbps auto-sensing Ethernet port
                                                            • Cable: Standard CAT5/CAT6 twisted pair, max transmission distance 100m
                                                            • Isolation: Built-in electrical isolation between Ethernet port and backplane bus
                                                            • Power draw: 0.3A @ 3.3VDC, 0.15A @ 5VDC backplane power
                                                            • Topology: Supports star, point-to-point network layout via switches
                                                            • Operating temperature: 0°C ~ +60°C, indoor cabinet installation
                                                            • Hot-swappable single-slot design; front LED indicators for module status, link and data activity
                                                            • Firmware upgradable via Proficy Machine Edition software

                                                            Supported Protocols

                                                            • Modbus TCP Client / Server
                                                            • SRTP (Secure Real-time Protocol for GE inter-controller communication)
                                                            • EGD (Ethernet Global Data for fast peer-to-peer real-time data exchange)
                                                            • OPC UA Server for upper monitoring system access
                                                            • SNTP for unified system clock synchronization

                                                            Key Functions

                                                            1. Independent Ethernet communication expansion

                                                               Separates production control network and office monitoring network to avoid network congestion affecting core PLC control logic.
                                                            2. Real-time inter-controller data transmission

                                                               Uses EGD/SRTP to exchange high-speed process data between multiple RX3i PLC racks without CPU load increase.
                                                            3. Modbus TCP cross-system interconnection

                                                               Uploads real-time operating data, alarms and metering values to SCADA/HMI, and receives remote setpoint commands from upper systems.
                                                            4. Network fault self-diagnosis

                                                               Detects cable disconnection, network timeout and IP conflict; uploads communication fault alarms to CPU for maintenance prompt.
                                                            5. Time synchronization service

                                                               Acts as SNTP client to synchronize PLC system clock with plant central time server for unified time-stamped event logs.

                                                            Compatible Equipment

                                                            • RX3i backplanes: IC695CHS007 (7-slot), IC695CHS012 (12-slot)
                                                            • Full series RX3i CPU modules such as IC695CPE305 / IC695CPE305BGAE
                                                            • IC695PSD140 rack power supply, IC695ACC400 backup capacitor module
                                                            • IC695CMM004 serial communication modules, analog & digital I/O modules
                                                            • Proficy Machine Edition programming software
                                                            • Industrial switches, plant SCADA servers, touchscreen HMIs and third-party PLCs

                                                            Applications

                                                            Industrial automation and power generation control systems:
                                                            • Thermal power turbine auxiliary PLC control cabinets
                                                            • Petrochemical continuous process control panels
                                                            • Water treatment pump station monitoring racks
                                                            • Factory assembly line and packaging machine control systems
                                                            • Small substation secondary distribution automation cubicles

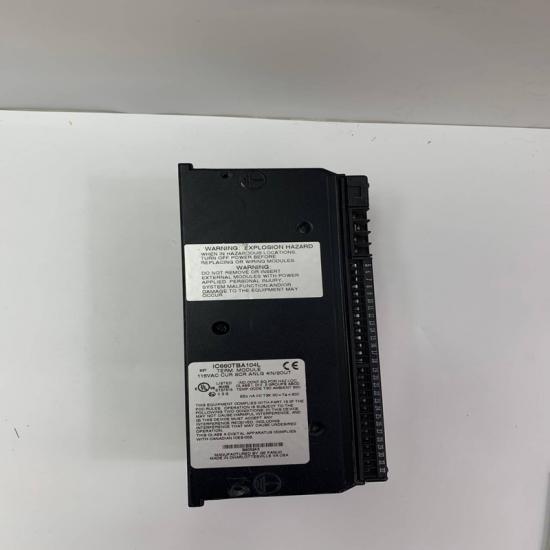

The structure and details of the product：
