                                                        • GE IC695CMM004 4-Port Serial Communication Module



                                                          IC695CMM004 Module Front




                                                          Module Side View



                                                          Overview

                                                          IC695CMM004 is a 4-channel isolated serial communication module for Emerson PACSystems RX3i PLC (formerly GE Fanuc). It expands serial communication capacity for the RX3i rack, enabling data exchange between the RX3i CPU and third-party instruments, protection relays, remote RTUs and SCADA systems. All four ports are independently configurable with electrical isolation to resist industrial electromagnetic interference, supporting multiple mainstream industrial serial protocols for power and process automation.

                                                          Specifications

                                                          • Ports: 4 isolated RJ45 serial ports, each with independent status LED indicator
                                                          • Signal Types: Software-selectable RS232, RS422, RS485 per port
                                                          • Baud Rate: 1200 ~ 115200 bps adjustable
                                                          • Isolation: 500VDC continuous isolation between ports and between ports & backplane
                                                          • Power Consumption: 0.7A @ 3.3VDC, 0.15A @ 5VDC backplane power
                                                          • Max Quantity per Rack: Up to 6 CMM serial modules in one RX3i backplane
                                                          • Duplex Mode: Full-duplex default; half-duplex configurable on new firmware
                                                          • Flow Control: RTS/CTS hardware handshake, XON/XOFF software flow control
                                                          • Operating Temperature: 0°C ~ +60°C for indoor industrial cabinets
                                                          • Hot-swappable single-slot rack card, firmware upgradable via Proficy Machine Edition
                                                          • Front panel dual status LEDs: Module OK, Port Fault

                                                          Supported Communication Protocols

                                                          1. Modbus RTU Master / Slave (most widely used for third-party device interconnection)
                                                          2. CCM Slave (GE legacy serial communication for older GE controllers)
                                                          3. DNP3 Master / Slave (power grid substation SCADA communication; all ports must use DNP3 if one port is set to DNP3)
                                                          4. Generic Serial I/O for custom serial instrument data collection

                                                          Key Functions

                                                          1. Multi-device serial data gateway

                                                             Collect measurement data, fault alarms and setpoints from field transmitters, motor relays, analyzers and remote RTUs, and forward data to the RX3i CPU for logic processing.
                                                          2. Multi-protocol flexible interconnection

                                                             Realize seamless data exchange between RX3i PLC, substation protection relays, HMI, and third-party brand PLCs via Modbus or DNP3 protocols.
                                                          3. Electrical noise isolation protection

                                                             Independent isolation circuits block surge and interference from field wiring to avoid damaging the main CPU and disrupting control logic.
                                                          4. Independent port operation

                                                             Each of the 4 ports runs separate communication tasks without mutual interference, supporting multi-drop serial bus topology.
                                                          5. Real-time communication self-diagnosis

                                                             Detects cable disconnection, communication timeout and parity errors; uploads fault codes to CPU for HMI alarm display and maintenance troubleshooting.
                                                          6. System expandability

                                                             Add multiple CMM004 modules to expand serial interface quantity for large-scale distributed equipment monitoring systems.

                                                          Compatible Equipment

                                                          • RX3i universal backplanes: IC695CHS007 (7-slot), IC695CHS012 (12-slot)
                                                          • IC695CPE305 / full series RX3i CPU modules
                                                          • IC695PSD140 rack power supply, IC695ACC400 backup capacitor pack
                                                          • All IC695 analog/digital I/O modules
                                                          • Proficy Machine Edition programming & configuration software
                                                          • Substation protection relays, motor management relays, flow analyzers, remote RTUs and SCADA systems

                                                          Applications

                                                          Industrial automation & power generation control scenarios requiring serial communication expansion:
                                                          • Thermal power plant turbine auxiliary PLC cabinets connecting vibration monitors and protection relays
                                                          • Petrochemical process control panels linking analyzers and local field instruments
                                                          • Power substation secondary control racks for DNP3 SCADA data upload
                                                          • Water & wastewater pump station multi-device serial signal collection
                                                          • Factory production line multi-brand equipment interconnection via Modbus RTU

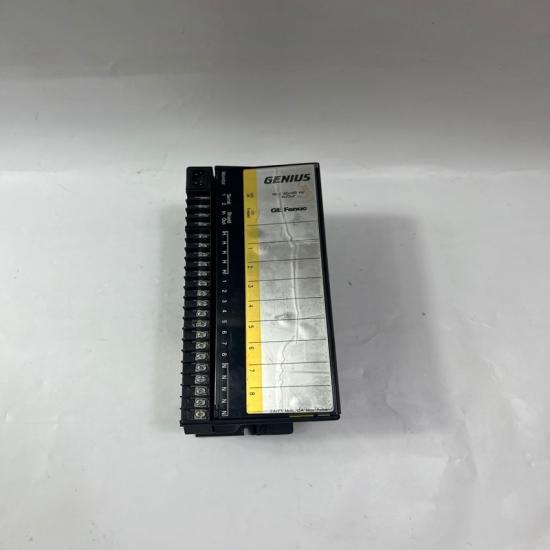

The structure and details of the product：
