GE IC695ECM850 Ethernet Communication Module

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •
                                                                        • • GE IC695ECM850 IEC 61850 Gigabit Ethernet Communication Module

                                                                          • Overview

                                                                            IC695ECM850 is a dedicated gigabit Ethernet communication module for Emerson PACSystems RX3i PLC (formerly GE Fanuc). It is specially designed for power grid substation automation, acting as an IEC 61850 client gateway to connect RX3i controllers with substation IED protection relays. It integrates a built-in 4-port managed gigabit switch, supporting both copper and fiber optical networking, far more powerful than general IC695ETM001 single-port Ethernet modules, and supports hot-swap operation for non-stop maintenance.

                                                                            Core Specifications

                                                                            Port Configuration

                                                                            • 2 × shielded RJ45 gigabit copper ports (10/100/1000 Mbps auto-negotiation)
                                                                            • 2 × SFP optical slots (support single/multi-mode fiber, 100/1000 Mbps)
                                                                            • 1 × Micro USB local debugging port for CLI configuration
                                                                            • Total 5 independent MAC addresses (4 external ports + internal switch)
                                                                            • Single module uses one IP address for network communication

                                                                            Electrical & Environmental

                                                                            • Backplane power consumption: 1.2A @3.3VDC base load; max 1.9A with dual SFP modules
                                                                            • Operating temperature: 0°C ~ +60°C (indoor industrial cabinet)
                                                                            • Form factor: Single-slot hot-swappable rack module
                                                                            • Max 4 ECM850 modules allowed in one RX3i main rack
                                                                            • Compatible RX3i CPU: CPE305 / CPE305BGAE / CPE310 / CPU315 / CRU320 (firmware V8.05+)
                                                                            • Configuration software: Proficy Machine Edition V8.0 SIM7 or above

                                                                            Supported Industrial Protocols

                                                                            1. IEC 61850 MMS Client (Core function)

                                                                               Communicate with substation protection IEDs, acquire measurement data, fault alarms, remote control signals, fully compliant with IEC 61850 standard for power grid automation.
                                                                            2. General industrial Ethernet protocols
                                                                            • Modbus TCP Client/Server
                                                                            • EGD (Ethernet Global Data) high-speed peer-to-peer PLC intercommunication
                                                                            • SRTP secure controller programming & data exchange
                                                                            • OPC UA secure upper monitoring connection
                                                                            3. Time synchronization: SNTP unified clock sync for time-stamped fault event logs

                                                                            Key Functions

                                                                            1. Substation IEC 61850 gateway

                                                                               The core capability of this module; enables RX3i PLC to interact with bay protection relays, transformer protection devices, fault recorders, realize remote bay control, electrical quantity collection and fault signal upload to SCADA systems.
                                                                            2. Integrated 4-port gigabit switch

                                                                               Eliminates extra external industrial switches; supports star, daisy-chain linear network topologies, flexible copper/fiber hybrid wiring for long-distance substation layout.
                                                                            3. Redundant network architecture support

                                                                               Dual RJ45 or dual SFP fiber ports can build redundant communication links to avoid single network point failure, improving power system reliability.
                                                                            4. Multi-protocol concurrent data exchange

                                                                               Simultaneously run IEC61850 substation communication, Modbus TCP HMI data upload and EGD inter-PLC real-time data sharing without mutual bandwidth interference.
                                                                            5. Rich network diagnosis & alarm

                                                                               Built-in port link status, packet error, communication timeout monitoring; uploads network fault codes to CPU for HMI alarm display, convenient for post-fault troubleshooting.
                                                                            6. Hot-swap maintenance

                                                                               Replace faulty modules without powering down the whole rack, minimizing power station automation system downtime.
                                                                            7. Local offline debugging

                                                                               Micro USB port connects PC via command line interface to set IP, port parameters and check network status without rack program download.

                                                                            Compatible Equipment

                                                                            • RX3i universal backplanes: IC695CHS007 (7-slot), IC695CHS012 (12-slot)
                                                                            • RX3i CPU series: IC695CPE305, IC695CPE305BGAE
                                                                            • IC695PSD140 rack power supply, IC695ACC400 capacitor backup module
                                                                            • Full series IC695 analog/digital I/O, serial communication modules
                                                                            • Substation IEC61850 protection relays, SCADA servers, industrial gigabit switches
                                                                            • Proficy Machine Edition programming & configuration software

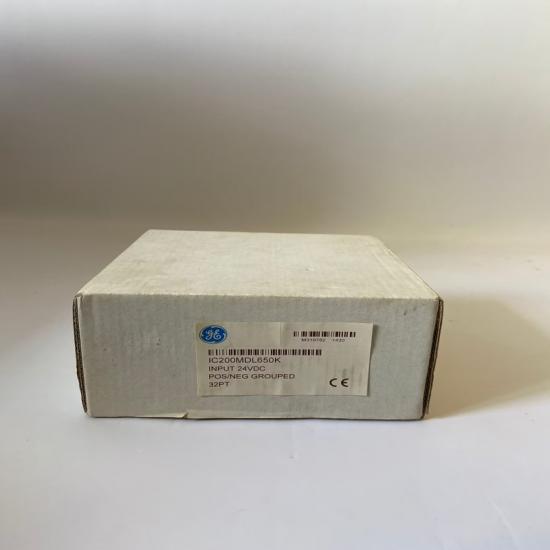

The structure and details of the product：
