                                                                                                                                                                                                                                              • GE IC695CHS012 Universal Backplane

                                                                                                                                                                                                                                                Product Description

                                                                                                                                                                                                                                                The GE IC695CHS012 is a 12-slot Universal Backplane designed for the GE PACSystems RX3i programmable automation controller platform. It provides the mechanical mounting structure, backplane communication bus, and power distribution for RX3i CPU, I/O, communication, and option modules. The dual-bus architecture supports both PCI-based (IC695) and high-speed serial (IC693/IC694) modules, allowing compatibility with PACSystems RX3i and selected Series 90-30 modules.

                                                                                                                                                                                                                                                Detailed Specifications

                                                                                                                                                                                                                                                Parameter	Specification
                                                                                                                                                                                                                                                Manufacturer	GE Intelligent Platforms / Emerson
                                                                                                                                                                                                                                                Model	IC695CHS012
                                                                                                                                                                                                                                                Product Type	Universal Backplane
                                                                                                                                                                                                                                                Platform	PACSystems RX3i
                                                                                                                                                                                                                                                Number of Slots	12
                                                                                                                                                                                                                                                Backplane Type	Dual-Bus Universal Backplane
                                                                                                                                                                                                                                                Bus Support	PCI & High-Speed Serial
                                                                                                                                                                                                                                                Compatible Modules	RX3i IC695 Modules, Selected Series 90-30 Modules
                                                                                                                                                                                                                                                Hot Swap Support	Yes
                                                                                                                                                                                                                                                Power Consumption	600 mA @ 3.3 VDC; 240 mA @ 5 VDC
                                                                                                                                                                                                                                                Input Power	Isolated 24 VDC
                                                                                                                                                                                                                                                Mounting	Horizontal Rack Mount
                                                                                                                                                                                                                                                Dimensions	Approx. 457 × 141 × 147 mm
                                                                                                                                                                                                                                                Protection Rating	NEMA/UL Type 1 (IP20 enclosure required)



                                                                                                                                                                                                                                                Advantages & Features

                                                                                                                                                                                                                                                • 12-slot high-capacity backplane for RX3i systems
                                                                                                                                                                                                                                                • Supports both PCI and high-speed serial communication buses
                                                                                                                                                                                                                                                • Compatible with PACSystems RX3i CPUs, I/O, and communication modules
                                                                                                                                                                                                                                                • Supports hot-swappable module replacement
                                                                                                                                                                                                                                                • Built-in grounding bar and isolated 24 VDC terminal
                                                                                                                                                                                                                                                • Provides reliable high-speed module communication
                                                                                                                                                                                                                                                • Rugged industrial design for continuous operation
                                                                                                                                                                                                                                                • Suitable for machine and process automation



                                                                                                                                                                                                                                                Applications

                                                                                                                                                                                                                                                • PACSystems RX3i PLC Systems
                                                                                                                                                                                                                                                • Factory Automation
                                                                                                                                                                                                                                                • Process Control
                                                                                                                                                                                                                                                • Power Generation
                                                                                                                                                                                                                                                • Oil & Gas
                                                                                                                                                                                                                                                • Water & Wastewater Treatment
                                                                                                                                                                                                                                                • Manufacturing Production Lines

                                                                                                                                                                                                                                                Precautions

                                                                                                                                                                                                                                                • Install the backplane horizontally to ensure proper cooling.
                                                                                                                                                                                                                                                • Maintain at least 102 mm (4 in.) clearance around the backplane for ventilation.
                                                                                                                                                                                                                                                • Verify compatibility of all installed modules before commissioning.
                                                                                                                                                                                                                                                • Ensure proper grounding and 24 VDC power wiring.
                                                                                                                                                                                                                                                • Disconnect system power before installing or removing modules.
                                                                                                                                                                                                                                            •

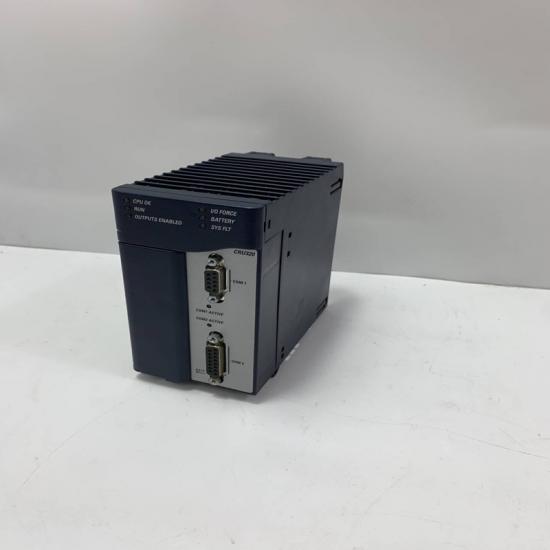

The structure and details of the product：
