                                                                                                                                                                                                                                                      Product Description

                                                                                                                                                                                                                                                      The GE IC695ALG708 is an 8-Channel Analog Output Module designed for the GE PACSystems RX3i PLC platform. It provides configurable voltage and current analog outputs for industrial control applications, allowing the PLC system to control devices such as valves, actuators, drives, and process instruments.

                                                                                                                                                                                                                                                      Each channel can be independently configured as a voltage or current output, making it suitable for flexible process control applications requiring accurate analog signal generation.

                                                                                                                                                                                                                                                      Detailed Specifications

                                                                                                                                                                                                                                                      Parameter	Specification
                                                                                                                                                                                                                                                      Manufacturer	GE Intelligent Platforms / Emerson
                                                                                                                                                                                                                                                      Model	IC695ALG708
                                                                                                                                                                                                                                                      Product Type	Analog Output Module
                                                                                                                                                                                                                                                      Platform	PACSystems RX3i
                                                                                                                                                                                                                                                      Output Channels	8 Channels
                                                                                                                                                                                                                                                      Output Type	Voltage / Current
                                                                                                                                                                                                                                                      Voltage Output Range	0 to +10 VDC, ±10 VDC
                                                                                                                                                                                                                                                      Current Output Range	0–20 mA, 4–20 mA
                                                                                                                                                                                                                                                      Resolution	14.9–15.9 bits (depending on range)
                                                                                                                                                                                                                                                      Update Rate	8 ms
                                                                                                                                                                                                                                                      Output Load	Max. 850 Ω
                                                                                                                                                                                                                                                      Isolation	Field to Backplane isolation
                                                                                                                                                                                                                                                      Mounting	RX3i Universal Backplane
                                                                                                                                                                                                                                                      Terminal Block	IC694TBB032 / IC694TBS032 series



                                                                                                                                                                                                                                                      Advantages & Features

                                                                                                                                                                                                                                                      • 8-channel configurable analog output design
                                                                                                                                                                                                                                                      • Supports both voltage and current output signals
                                                                                                                                                                                                                                                      • Software-configurable channel settings
                                                                                                                                                                                                                                                      • High-resolution analog signal conversion
                                                                                                                                                                                                                                                      • Supports output scaling, offset adjustment, and alarm settings
                                                                                                                                                                                                                                                      • Provides output hold-last-state and default output functions
                                                                                                                                                                                                                                                      • Built-in module diagnostics and fault reporting
                                                                                                                                                                                                                                                      • Suitable for precise industrial process control applications



                                                                                                                                                                                                                                                      Applications

                                                                                                                                                                                                                                                      • Industrial automation systems
                                                                                                                                                                                                                                                      • Process control equipment
                                                                                                                                                                                                                                                      • Motor speed control
                                                                                                                                                                                                                                                      • Valve and actuator control
                                                                                                                                                                                                                                                      • Temperature and pressure regulation
                                                                                                                                                                                                                                                      • Chemical processing systems
                                                                                                                                                                                                                                                      • Power generation equipment
                                                                                                                                                                                                                                                      • Manufacturing production lines

                                                                                                                                                                                                                                                      Precautions

                                                                                                                                                                                                                                                      • Confirm compatibility with the GE RX3i Universal Backplane before installation.
                                                                                                                                                                                                                                                      • Verify output signal type (4–20 mA, 0–10 VDC, etc.) before wiring.
                                                                                                                                                                                                                                                      • Use the correct terminal block for installation.
                                                                                                                                                                                                                                                      • Ensure proper shielding and grounding of analog signal cables.
                                                                                                                                                                                                                                                      • Configure channels using compatible GE/Emerson programming software.
                                                                                                                                                                                                                                                  •

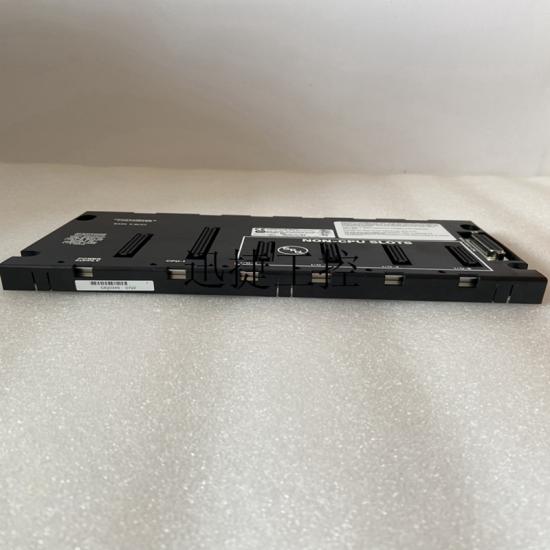

The structure and details of the product：
