                                                                                                                                                                                                                                                  • GE IC695ALG616 Analog Input Module

                                                                                                                                                                                                                                                    Product Description

                                                                                                                                                                                                                                                    The GE IC695ALG616 is a PACSystems RX3i Analog Input Module designed for the GE Intelligent Platforms PACSystems RX3i PLC platform (now supported by Emerson). It is a high-density, non-isolated analog input module used to collect voltage and current signals from field devices such as transmitters, sensors, and process instruments.

                                                                                                                                                                                                                                                    The module supports 16 single-ended inputs or 8 differential inputs, providing accurate analog signal conversion for industrial process monitoring and control applications.

                                                                                                                                                                                                                                                    Detailed Specifications

                                                                                                                                                                                                                                                    Parameter	Specification
                                                                                                                                                                                                                                                    Manufacturer	GE Intelligent Platforms / Emerson
                                                                                                                                                                                                                                                    Model	IC695ALG616
                                                                                                                                                                                                                                                    Product Type	Analog Input Module
                                                                                                                                                                                                                                                    Platform	PACSystems RX3i
                                                                                                                                                                                                                                                    Input Channels	16 single-ended / 8 differential
                                                                                                                                                                                                                                                    Signal Type	Voltage & Current Analog Input
                                                                                                                                                                                                                                                    Current Input Range	0–20 mA, 4–20 mA, ±20 mA
                                                                                                                                                                                                                                                    Voltage Input Range	±10 VDC, 0–10 VDC, ±5 VDC, 0–5 VDC, 1–5 VDC
                                                                                                                                                                                                                                                    Resolution	24-bit ADC
                                                                                                                                                                                                                                                    Slots Occupied	1 slot
                                                                                                                                                                                                                                                    Backplane	RX3i Universal Backplane
                                                                                                                                                                                                                                                    Input Type	Non-isolated Differential
                                                                                                                                                                                                                                                    Terminal Block	IC694TBB032 / IC694TBS032 series
                                                                                                                                                                                                                                                    Configuration	Software configurable



                                                                                                                                                                                                                                                    Advantages & Features

                                                                                                                                                                                                                                                    • High-density analog input capability
                                                                                                                                                                                                                                                    • Supports both voltage and current signals
                                                                                                                                                                                                                                                    • Flexible configuration with single-ended or differential inputs
                                                                                                                                                                                                                                                    • High-resolution 24-bit analog-to-digital conversion
                                                                                                                                                                                                                                                    • Software configuration without hardware jumpers
                                                                                                                                                                                                                                                    • Built-in diagnostics and fault monitoring
                                                                                                                                                                                                                                                    • Supports alarm settings including High, High-High, Low, and Low-Low limits
                                                                                                                                                                                                                                                    • Provides open-circuit detection for supported inputs
                                                                                                                                                                                                                                                    • Suitable for precise industrial measurement applications



                                                                                                                                                                                                                                                    Applications

                                                                                                                                                                                                                                                    • Process Control Systems
                                                                                                                                                                                                                                                    • Factory Automation
                                                                                                                                                                                                                                                    • Temperature Monitoring
                                                                                                                                                                                                                                                    • Pressure and Flow Measurement
                                                                                                                                                                                                                                                    • Chemical Processing Equipment
                                                                                                                                                                                                                                                    • Power Generation Systems
                                                                                                                                                                                                                                                    • Oil & Gas Automation
                                                                                                                                                                                                                                                    • Industrial Instrumentation

                                                                                                                                                                                                                                                    Precautions

                                                                                                                                                                                                                                                    • Confirm compatibility with the PACSystems RX3i Universal Backplane before installation.
                                                                                                                                                                                                                                                    • Verify input signal type (4–20 mA, 0–10 V, etc.) before wiring.
                                                                                                                                                                                                                                                    • Use the correct terminal block model.
                                                                                                                                                                                                                                                    • Ensure proper shielding and grounding for analog signal cables.
                                                                                                                                                                                                                                                    • Configure channels correctly using compatible PLC programming software.
                                                                                                                                                                                                                                                  •

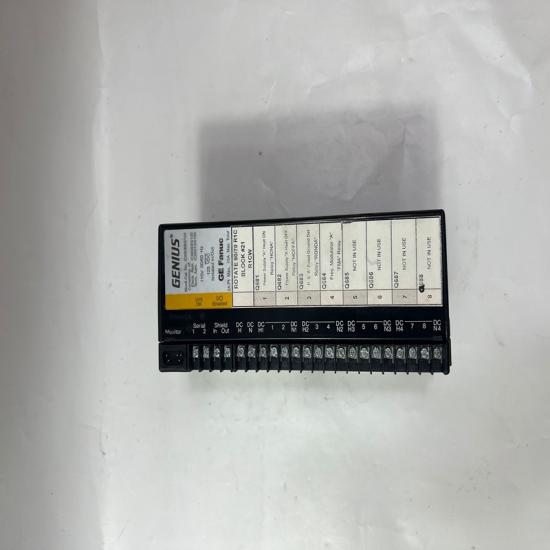

The structure and details of the product：
