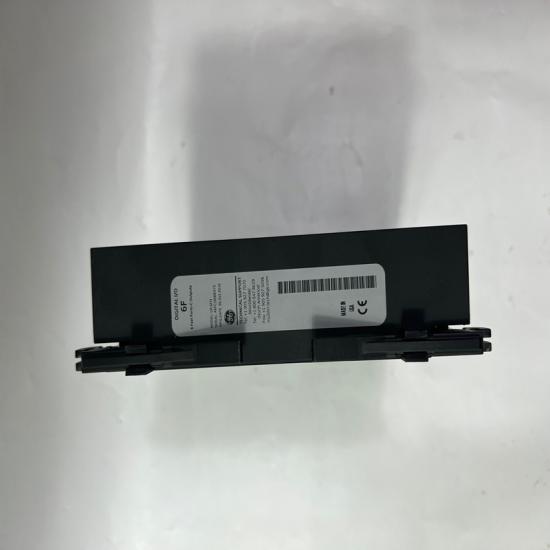

GE IC695ALG616 PACSystems Analog Input Module

Item NO.:
IC695ALG616
Payment:
T/T
Price:
$938/
Product Origin:
USA
Color:
NEW
Product weight:
1.21KG
Lead Time:
In stock

- - - - GE IC695ALG616 PACSystems RX3i Analog Input Module

        Product Overview

        Brand: GE Fanuc / Emerson
        Series: PACSystems RX3i
        Model: IC695ALG616
        Product Type: Analog Input Module
        Function: A high-density analog input module designed for GE PACSystems RX3i PLC systems. It collects voltage and current signals from field instruments such as transmitters, sensors, and measurement devices, converts analog signals into digital data, and transfers them to the PLC CPU for monitoring and control.

        Technical Specifications

        Module Type: Analog Input Module

        Series Compatibility: GE PACSystems RX3i

        Input Channels:

        16 single-ended inputs

        8 differential inputs

        Input Type: Configurable Voltage / Current Input

        Current Input Range:

        0–20 mA

        4–20 mA

        ±20 mA

        Voltage Input Range:

        0–10 VDC

        ±10 VDC

        0–5 VDC

        ±5 VDC

        1–5 VDC

        Resolution: 24-bit ADC conversion

        Input Mode: Single-ended / Differential selectable

        Input Filter: Configurable

        8 Hz

        12 Hz

        16 Hz

        40 Hz

        200 Hz

        500 Hz

        Data Format:

        IEEE 32-bit floating point

        16-bit integer format

        Power Consumption:

        3.3 VDC: approx. 450 mA

        5 VDC: approx. 600 mA

        Backplane Type: RX3i Universal Backplane

        Installation: Single-slot rack mounting

        Operating Temperature: 0°C to 60°C

        Diagnostics:

        Open circuit detection

        Short circuit detection

        Channel fault reporting

        High/Low alarm monitoring

        Advantages & Features

        High-Density Analog Acquisition

        Provides up to 16 analog input channels in a single module, reducing cabinet space and improving system efficiency.

        Flexible Signal Configuration

        Each channel can be configured independently for voltage or current input, supporting a wide range of industrial instruments.

        High-Precision Measurement

        Advanced ADC conversion technology provides accurate acquisition of process signals for reliable automation control.

        Multiple Diagnostic Functions

        Built-in diagnostics detect wiring faults, input errors, and abnormal conditions, simplifying troubleshooting and maintenance.

        Configurable Filtering

        Adjustable input filtering helps reduce electrical noise and improves signal stability in industrial environments.

        Easy PACSystems Integration

        Designed for RX3i universal backplanes, allowing simple installation and integration with CPUs, communication modules, and other I/O modules.

        Typical Applications

        Process automation systems

        Factory automation equipment

        Oil & gas control systems

        Chemical processing plants

        Power generation systems

        Water treatment facilities

        Temperature, pressure, and flow monitoring

        Industrial instrumentation systems

        Precautions

        Confirm compatibility with the GE PACSystems RX3i platform before installation.

        Verify input signal type and range before wiring.

        Use shielded cables for analog signals to reduce electrical interference.

        Ensure correct grounding and wiring polarity.

        Configure channel parameters correctly in PLC software.

        Disconnect power before installation or replacement.

        Check terminal block compatibility before use.

        Perform calibration and I/O testing after installation.
