                                                                                                                                                                                                                                                  • GE IC694TBB032 Terminal Block

                                                                                                                                                                                                                                                    Product Description

                                                                                                                                                                                                                                                    The GE IC694TBB032 is a High-Density Box-Style Terminal Block designed for GE Fanuc Series 90-30 and PACSystems RX3i PLC I/O modules. It provides a reliable field wiring interface between external devices and PLC modules, allowing convenient connection of digital and analog signals.

                                                                                                                                                                                                                                                    The terminal block features a 36-position screw terminal design and is commonly used with high-density RX3i I/O modules such as digital input/output and analog modules.

                                                                                                                                                                                                                                                    Detailed Specifications

                                                                                                                                                                                                                                                    Parameter	Specification
                                                                                                                                                                                                                                                    Manufacturer	GE Fanuc / Emerson
                                                                                                                                                                                                                                                    Model	IC694TBB032
                                                                                                                                                                                                                                                    Product Type	High-Density Box-Style Terminal Block
                                                                                                                                                                                                                                                    Compatible Platform	PACSystems RX3i / Series 90-30
                                                                                                                                                                                                                                                    Terminal Type	Screw Terminal
                                                                                                                                                                                                                                                    Number of Terminals	36 Points
                                                                                                                                                                                                                                                    Connection Type	Box Style
                                                                                                                                                                                                                                                    Wire Size	14–26 AWG
                                                                                                                                                                                                                                                    Tightening Torque	7 in-lb
                                                                                                                                                                                                                                                    Mounting	I/O Module Mounted
                                                                                                                                                                                                                                                    Application	Field Wiring Connection



                                                                                                                                                                                                                                                    Advantages & Features

                                                                                                                                                                                                                                                    • Designed for GE RX3i high-density I/O modules
                                                                                                                                                                                                                                                    • Provides organized and secure field wiring connections
                                                                                                                                                                                                                                                    • 36 screw terminal points for flexible wiring
                                                                                                                                                                                                                                                    • Supports a wide range of industrial wire sizes
                                                                                                                                                                                                                                                    • Easy installation and maintenance
                                                                                                                                                                                                                                                    • Reliable connection for digital and analog signals
                                                                                                                                                                                                                                                    • Suitable for industrial control cabinet applications



                                                                                                                                                                                                                                                    Applications

                                                                                                                                                                                                                                                    • GE PACSystems RX3i PLC Systems
                                                                                                                                                                                                                                                    • GE Series 90-30 Control Systems
                                                                                                                                                                                                                                                    • Factory Automation Equipment
                                                                                                                                                                                                                                                    • Process Control Systems
                                                                                                                                                                                                                                                    • Manufacturing Production Lines
                                                                                                                                                                                                                                                    • Industrial Control Panels
                                                                                                                                                                                                                                                    • Machine Automation

                                                                                                                                                                                                                                                    Precautions

                                                                                                                                                                                                                                                    • Confirm compatibility with the installed I/O module before use.
                                                                                                                                                                                                                                                    • Check terminal assignment before wiring.
                                                                                                                                                                                                                                                    • Ensure correct wire size and tightening torque.
                                                                                                                                                                                                                                                    • Disconnect power before installation or replacement.
                                                                                                                                                                                                                                                    • Verify signal type (digital/analog) according to the connected module.

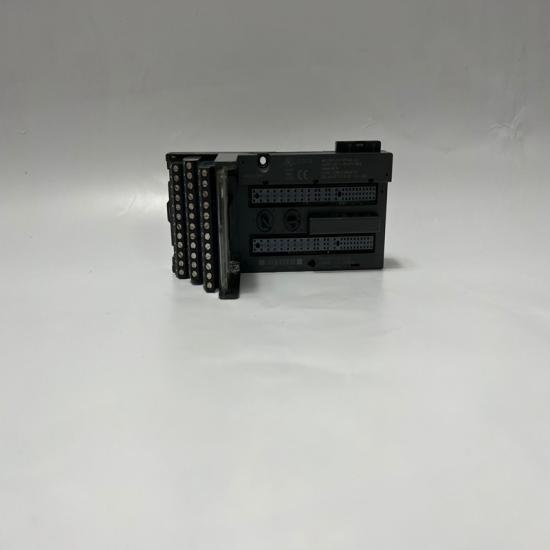

The structure and details of the product：
