                                                                                                                                                                                                                                                        • GE IC694MDL754 Digital Output Module

                                                                                                                                                                                                                                                          Product Description

                                                                                                                                                                                                                                                          The GE IC694MDL754 is a 12/24 VDC Digital Output Module designed for the GE Fanuc PACSystems RX3i PLC platform. It provides 32 discrete output points for controlling external devices such as solenoid valves, relays, contactors, indicators, and other industrial actuators.

                                                                                                                                                                                                                                                          The module uses positive logic (sourcing) outputs and includes Electronic Short Circuit Protection (ESCP), providing protection against overcurrent, short circuit, and overtemperature conditions for reliable industrial operation.

                                                                                                                                                                                                                                                          Detailed Specifications

                                                                                                                                                                                                                                                          Parameter	Specification
                                                                                                                                                                                                                                                          Manufacturer	GE Fanuc / Emerson
                                                                                                                                                                                                                                                          Model	IC694MDL754
                                                                                                                                                                                                                                                          Product Type	Digital Output Module
                                                                                                                                                                                                                                                          Platform	PACSystems RX3i / Series 90-30
                                                                                                                                                                                                                                                          Output Channels	32 Points
                                                                                                                                                                                                                                                          Output Type	DC Transistor Output
                                                                                                                                                                                                                                                          Logic Type	Positive Logic (Source Output)
                                                                                                                                                                                                                                                          Rated Voltage	12/24 VDC
                                                                                                                                                                                                                                                          Output Voltage Range	10.2–30 VDC
                                                                                                                                                                                                                                                          Output Current	0.75 A per point
                                                                                                                                                                                                                                                          Output Groups	2 isolated groups × 16 outputs
                                                                                                                                                                                                                                                          Protection	Electronic Short Circuit Protection (ESCP)
                                                                                                                                                                                                                                                          Response Time	0.5 ms maximum
                                                                                                                                                                                                                                                          Isolation	Optical isolation between field and backplane
                                                                                                                                                                                                                                                          Power Consumption	300 mA from 5 VDC backplane
                                                                                                                                                                                                                                                          Mounting	RX3i Universal Backplane
                                                                                                                                                                                                                                                          Terminal Block	IC694TBB032 / IC694TBS032



                                                                                                                                                                                                                                                          Advantages & Features

                                                                                                                                                                                                                                                          • 32-channel high-density digital output design
                                                                                                                                                                                                                                                          • Supports 12/24 VDC industrial loads
                                                                                                                                                                                                                                                          • Positive logic sourcing output configuration
                                                                                                                                                                                                                                                          • Individual electronic overcurrent and short-circuit protection
                                                                                                                                                                                                                                                          • Fast 0.5 ms output response time
                                                                                                                                                                                                                                                          • Optical isolation improves system reliability
                                                                                                                                                                                                                                                          • Supports different voltage loads between output groups
                                                                                                                                                                                                                                                          • Suitable for demanding industrial automation environments



                                                                                                                                                                                                                                                          Applications

                                                                                                                                                                                                                                                          • PLC Control Systems
                                                                                                                                                                                                                                                          • Factory Automation Equipment
                                                                                                                                                                                                                                                          • Motor Control Panels
                                                                                                                                                                                                                                                          • Solenoid Valve Control
                                                                                                                                                                                                                                                          • Conveyor Systems
                                                                                                                                                                                                                                                          • Packaging Machinery
                                                                                                                                                                                                                                                          • Process Automation Systems
                                                                                                                                                                                                                                                          • Industrial Machine Control

                                                                                                                                                                                                                                                          Precautions

                                                                                                                                                                                                                                                          • Verify compatibility with the RX3i rack and CPU configuration before installation.
                                                                                                                                                                                                                                                          • Confirm output voltage and load current requirements.
                                                                                                                                                                                                                                                          • Use the correct terminal block for wiring.
                                                                                                                                                                                                                                                          • Ensure external field power supply is properly connected.
                                                                                                                                                                                                                                                          • Disconnect system power before installation or replacement.
                                                                                                                                                                                                                                                  •

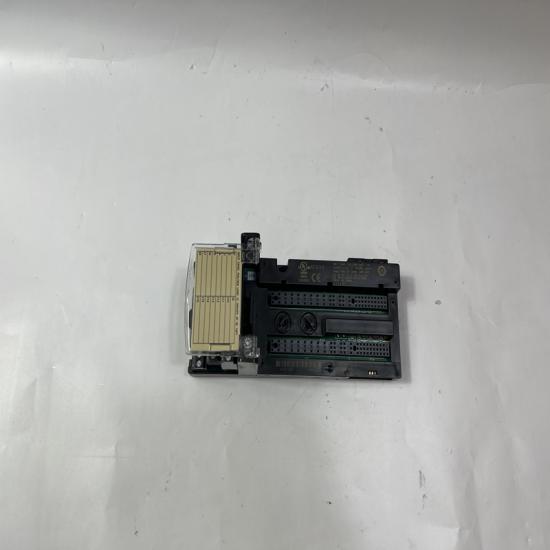

The structure and details of the product：
