                                                                              GE IC210DAR020 Durus-20 PLC Controller (Critical Correction: Not Analog Output Module)

                                                                              1. Basic Product Overview

                                                                              • Model: IC210DAR020
                                                                              • Manufacturer: GE Fanuc (Emerson Automation)
                                                                              • Series: Durus Compact PLC Series (Durus-20 AC Main Controller)
                                                                              • Core Clarification: This unit is a 20-point integrated main PLC controller, not an analog output module. It integrates CPU, power supply, digital I/O, LCD operator screen and keypad in one compact DIN rail housing, and supports external expansion I/O modules.
                                                                              • Power Input: Wide-range AC power 85–265 VAC (100–240VAC nominal)

                                                                              2. Built-in Native I/O Configuration

                                                                              Total 20 discrete I/O points on main unit:

                                                                              • 12 × AC Digital Inputs (100–240VAC sensor/switch input)
                                                                              • 8 × Relay Discrete Outputs (Form A relay, 8A per channel, drives AC/DC loads)
                                                                              • Built-in analog expansion capability: Supports adding analog input/output via IC210 series expansion modules (e.g. analog expansion cards with 4–20mA / 0–10V signals)

                                                                              3. Key Electrical Specifications

                                                                              Power Supply

                                                                              • Input Voltage: 85–264 VAC, 50/60Hz
                                                                              • Operating Current Draw: 90mA at rated AC input
                                                                              • Auxiliary sensor power: 24VDC logic power for field sensors

                                                                              Digital Inputs

                                                                              • Input Type: AC sinking/sourcing compatible
                                                                              • Rated Input Current: 1.3mA per channel at 100–240VAC
                                                                              • Input Filter: Built-in hardware debounce filter for switch anti-chattering

                                                                              Relay Outputs

                                                                              • Contact Rating: 8A resistive @ 240VAC / 24VDC
                                                                              • Mechanical life: 10 million operations; Electrical life: 100,000 cycles at full 8A load
                                                                              • Each relay channel has independent LED status indicator

                                                                              Program & Memory

                                                                              • User Logic Rungs: Max 200 ladder logic rungs
                                                                              • Internal Data Registers: Support analog scaling, PID closed-loop control registers
                                                                              • Built-in PID function blocks for temperature, pressure flow regulation (requires external analog expansion modules for analog signal transmission)

                                                                              4. Hardware & Mechanical Features

                                                                              1. Operator Interface
                                                                                 • Integrated LCD display + tactile keypad for on-site parameter modification, alarm viewing, program monitoring
                                                                              2. Expansion Port
                                                                                 • Dedicated side latch connector for linking IC210 series expansion modules (digital relay, analog I/O)
                                                                              3. Mounting
                                                                                 • Standard 35mm DIN rail horizontal mounting; vertical panel mounting permitted
                                                                                 • Forbidden: Vertical upside-down or rotated horizontal installation
                                                                              4. Dimension & Weight
                                                                                 • Net weight: ~570g
                                                                              5. Environmental Ratings
                                                                                 • Operating Temperature: 0°C ~ +55°C
                                                                                 • Storage Temperature: -20°C ~ +70°C
                                                                                 • Humidity: 5%–95% RH non-condensing
                                                                                 • Protection Class: IP20 (indoor control cabinet only)
                                                                              6. Communication
                                                                                 • Built-in RS485 serial port for Modbus RTU slave/master communication, HMI touchscreen connection

                                                                              5. Matching Expansion Modules (For Analog Signal Control)

                                                                              Since IC210DAR020 has no native analog channels, analog output control requires external expansion cards:

                                                                              • IC210EAR008: 8-point AC/relay digital expansion
                                                                              • Analog expansion modules (supply 4–20mA / 0–10V analog output signals): Durus analog expansion units for valve, VFD proportional control

                                                                              6. Core Functions

                                                                              1. Execute ladder logic sequence control, interlock logic, timing & counting tasks
                                                                              2. Collect digital switch/sensor signals via 12 built-in AC inputs
                                                                              3. Drive solenoid valves, indicator lights, small contactors via 8 relay outputs
                                                                              4. Run PID closed-loop control algorithms when paired with analog expansion I/O modules
                                                                              5. Local operation via LCD/keypad without laptop programming software
                                                                              6. Modbus RTU communication to exchange data with HMI, upper SCADA or other PLCs

                                                                              7. Key Advantages

                                                                              1. All-in-one compact design: CPU, power, I/O, display integrated, reduces cabinet space for small automation stations
                                                                              2. Wide AC universal power supply, compatible with global industrial mains voltage
                                                                              3. Expandable architecture, supports adding digital/analog I/O as process demands expand
                                                                              4. Onboard LCD & keypad enables on-site troubleshooting and parameter adjustment without programming tools
                                                                              5. Relay outputs with high 8A contact capacity directly drive medium-power field loads without intermediate relays
                                                                              6. Cost-effective small-scale automation solution for packaging, water treatment, HVAC, material handling

                                                                              8. Typical Application Scenarios

                                                                              • Small packaging machinery conveyor & sequence control
                                                                              • HVAC air handling unit fan, damper, pump interlock control
                                                                              • Water treatment small dosing, filtration and tank level logic
                                                                              • Material handling conveyors, lifting equipment discrete control
                                                                              • Light manufacturing assembly line small station automation
                                                                              • Compact machine control systems requiring simple PID analog regulation with external analog expansion modules

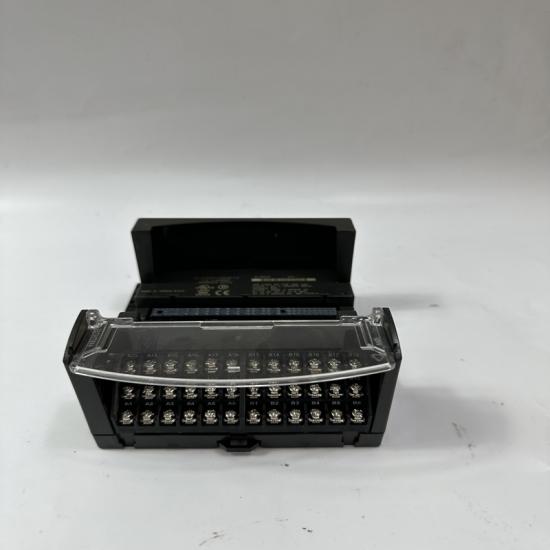

The structure and details of the product：
