                                                                                                                                                                                                                                                                                                                  • GE IC200UEX626 Expansion Module

                                                                                                                                                                                                                                                                                                                    Product Description

                                                                                                                                                                                                                                                                                                                    GE IC200UEX626 is a VersaMax Micro Analog Expansion Module manufactured by GE Fanuc / GE Intelligent Platforms (now Emerson Automation). It is designed to expand the analog I/O capability of VersaMax Micro PLC systems, providing additional analog input and output channels for industrial control applications.

                                                                                                                                                                                                                                                                                                                    The module supports multiple analog signal types, including voltage and current signals, allowing connection to transmitters, sensors, and industrial instruments.

                                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                                    Specifications

                                                                                                                                                                                                                                                                                                                    • Brand: GE Fanuc / Emerson
                                                                                                                                                                                                                                                                                                                    • Model: IC200UEX626
                                                                                                                                                                                                                                                                                                                    • Product Type: Analog Expansion Module
                                                                                                                                                                                                                                                                                                                    • Series: VersaMax Micro
                                                                                                                                                                                                                                                                                                                    • Module Type: Analog I/O Expansion Unit
                                                                                                                                                                                                                                                                                                                    • Power Supply: 24 VDC
                                                                                                                                                                                                                                                                                                                    • Analog Channels: 6 Channels
                                                                                                                                                                                                                                                                                                                      • 4 × Analog Inputs
                                                                                                                                                                                                                                                                                                                      • 2 × Analog Outputs
                                                                                                                                                                                                                                                                                                                    • Analog Input Ranges:
                                                                                                                                                                                                                                                                                                                      • 0–10 VDC
                                                                                                                                                                                                                                                                                                                      • ±10 VDC
                                                                                                                                                                                                                                                                                                                      • 0–20 mA
                                                                                                                                                                                                                                                                                                                      • 4–20 mA
                                                                                                                                                                                                                                                                                                                    • Analog Output Ranges:
                                                                                                                                                                                                                                                                                                                      • 0–10 VDC
                                                                                                                                                                                                                                                                                                                      • 0–20 mA
                                                                                                                                                                                                                                                                                                                      • 4–20 mA
                                                                                                                                                                                                                                                                                                                    • Dimensions: Approx. 150 × 90 × 76 mm
                                                                                                                                                                                                                                                                                                                    • Mounting: VersaMax Micro expansion connection
                                                                                                                                                                                                                                                                                                                    • Input Power: Approx. 24 VDC, 3 W

                                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                                    Functions

                                                                                                                                                                                                                                                                                                                    • Expands VersaMax Micro PLC analog processing capability
                                                                                                                                                                                                                                                                                                                    • Collects analog signals from field sensors and transmitters
                                                                                                                                                                                                                                                                                                                    • Converts analog signals into PLC-readable data
                                                                                                                                                                                                                                                                                                                    • Provides analog control outputs to external devices
                                                                                                                                                                                                                                                                                                                    • Supports process monitoring and closed-loop control applications



                                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                                    Advantages & Features

                                                                                                                                                                                                                                                                                                                    • Provides additional analog I/O without replacing the PLC CPU
                                                                                                                                                                                                                                                                                                                    • Supports common industrial voltage and current signals
                                                                                                                                                                                                                                                                                                                    • Compact design for space-saving control cabinets
                                                                                                                                                                                                                                                                                                                    • Suitable for sensor monitoring and process control
                                                                                                                                                                                                                                                                                                                    • Easy integration with VersaMax Micro PLC systems
                                                                                                                                                                                                                                                                                                                    • Reliable GE industrial automation hardware

                                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                                    Applications

                                                                                                                                                                                                                                                                                                                    • Factory automation systems
                                                                                                                                                                                                                                                                                                                    • Process control equipment
                                                                                                                                                                                                                                                                                                                    • Temperature, pressure, and flow monitoring
                                                                                                                                                                                                                                                                                                                    • Industrial sensor data acquisition
                                                                                                                                                                                                                                                                                                                    • Machine control systems
                                                                                                                                                                                                                                                                                                                    • Small PLC automation projects

                                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                                    Notes

                                                                                                                                                                                                                                                                                                                    • IC200UEX626 is an analog expansion module, not a CPU module
                                                                                                                                                                                                                                                                                                                    • Requires a compatible GE VersaMax Micro PLC system
                                                                                                                                                                                                                                                                                                                    • Confirm analog signal type before configuration
                                                                                                                                                                                                                                                                                                                    • Check wiring method for current and voltage inputs/outputs
                                                                                                                                                                                                                                                                                                                    • Ensure 24VDC power supply meets module requirements

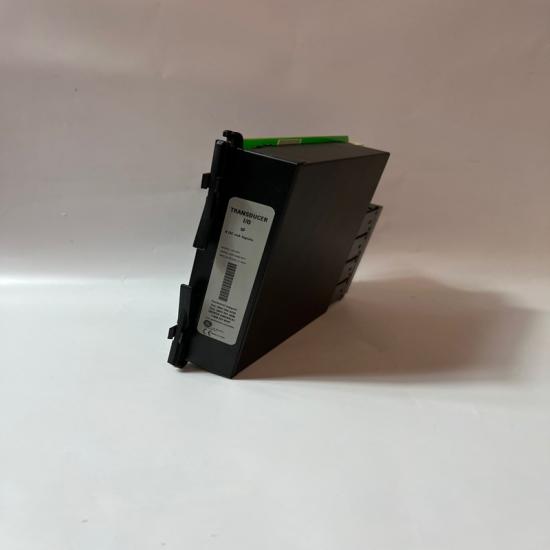

The structure and details of the product：
