                                                                                                                                                                                                                                                                                                                      Product Description

                                                                                                                                                                                                                                                                                                                      GE IC200UDD040 is a VersaMax Micro 40-Point PLC Controller manufactured by GE Fanuc / GE Intelligent Platforms (now Emerson Automation). It integrates discrete digital inputs, discrete outputs, CPU control, and 24VDC power supply in one compact PLC unit.

                                                                                                                                                                                                                                                                                                                      The unit provides 24 digital inputs and 16 digital outputs, making it suitable for small machine control, automation equipment, and standalone PLC applications.

                                                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                                                      Specifications

                                                                                                                                                                                                                                                                                                                      • Brand: GE Fanuc / Emerson
                                                                                                                                                                                                                                                                                                                      • Model: IC200UDD040
                                                                                                                                                                                                                                                                                                                      • Product Type: VersaMax Micro PLC / Discrete I/O Controller
                                                                                                                                                                                                                                                                                                                      • Series: VersaMax Micro
                                                                                                                                                                                                                                                                                                                      • Total I/O Points: 40 Points
                                                                                                                                                                                                                                                                                                                      • Digital Inputs:
                                                                                                                                                                                                                                                                                                                        • 24 × 24VDC discrete inputs
                                                                                                                                                                                                                                                                                                                        • Positive or negative logic configurable
                                                                                                                                                                                                                                                                                                                      • Digital Outputs:
                                                                                                                                                                                                                                                                                                                        • 16 × 24VDC transistor outputs
                                                                                                                                                                                                                                                                                                                        • Sourcing type outputs
                                                                                                                                                                                                                                                                                                                        • Outputs 5–16 with Electronic Short Circuit Protection (ESCP)
                                                                                                                                                                                                                                                                                                                      • Power Supply: 24VDC
                                                                                                                                                                                                                                                                                                                      • Input Voltage Range: 19.2–30VDC
                                                                                                                                                                                                                                                                                                                      • Output Voltage: 12/24VDC
                                                                                                                                                                                                                                                                                                                      • Output Current:
                                                                                                                                                                                                                                                                                                                        • Q1–Q4: 0.5A/point
                                                                                                                                                                                                                                                                                                                        • Q5–Q16: 0.7A/point
                                                                                                                                                                                                                                                                                                                      • High-Speed Counter: Supports multiple high-speed counter configurations
                                                                                                                                                                                                                                                                                                                      • User Program Memory: Approx. 24K words
                                                                                                                                                                                                                                                                                                                      • Register Memory: 32K words
                                                                                                                                                                                                                                                                                                                      • Mounting: VersaMax Micro PLC mounting

                                                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                                                      Functions

                                                                                                                                                                                                                                                                                                                      • Executes PLC control programs
                                                                                                                                                                                                                                                                                                                      • Receives ON/OFF signals from sensors, switches, and field devices
                                                                                                                                                                                                                                                                                                                      • Controls actuators, valves, relays, lamps, and contactors
                                                                                                                                                                                                                                                                                                                      • Provides high-speed counting functions for motion and production applications
                                                                                                                                                                                                                                                                                                                      • Supports expansion with additional VersaMax Micro I/O modules

                                                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                                                      Advantages & Features

                                                                                                                                                                                                                                                                                                                      • Integrated PLC and I/O design saves cabinet space
                                                                                                                                                                                                                                                                                                                      • 40-point digital I/O capability
                                                                                                                                                                                                                                                                                                                      • Supports both positive and negative logic inputs
                                                                                                                                                                                                                                                                                                                      • Built-in output short-circuit protection
                                                                                                                                                                                                                                                                                                                      • Supports high-speed counter applications
                                                                                                                                                                                                                                                                                                                      • Compact solution for small automation systems
                                                                                                                                                                                                                                                                                                                      • Reliable GE industrial control technology

                                                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                                                      Applications

                                                                                                                                                                                                                                                                                                                      • Machine automation systems
                                                                                                                                                                                                                                                                                                                      • Packaging equipment
                                                                                                                                                                                                                                                                                                                      • Conveyor control systems
                                                                                                                                                                                                                                                                                                                      • Small production lines
                                                                                                                                                                                                                                                                                                                      • Material handling systems
                                                                                                                                                                                                                                                                                                                      • Industrial equipment control
                                                                                                                                                                                                                                                                                                                      • OEM automation solutions

                                                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                                                      Notes

                                                                                                                                                                                                                                                                                                                      • IC200UDD040 is a complete Micro PLC controller, not only an I/O expansion module
                                                                                                                                                                                                                                                                                                                      • Requires compatible programming software and communication interface for configuration
                                                                                                                                                                                                                                                                                                                      • Verify output type and load current before connection
                                                                                                                                                                                                                                                                                                                      • Check 24VDC power supply polarity before installation
                                                                                                                                                                                                                                                                                                                      • Confirm firmware and expansion compatibility when replacing existing units

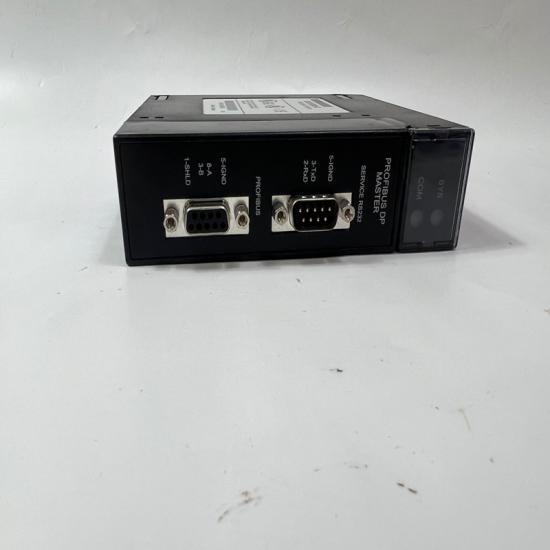

The structure and details of the product：
