                                                                                                                                                                                            Product Description

                                                                                                                                                                                            GE IC200ALG230D is a VersaMax Series Analog Input Module developed by GE Fanuc (now Emerson Automation). It provides four configurable analog input channels for receiving voltage or current signals from industrial field devices and converting them into digital values for PLC processing.

                                                                                                                                                                                            The module supports common industrial analog signals such as 0–10 VDC, ±10 VDC, and 4–20 mA, making it suitable for monitoring process variables including pressure, temperature, flow, level, and speed.

                                                                                                                                                                                            ---

                                                                                                                                                                                            Technical Parameters

                                                                                                                                                                                            • Brand: GE Fanuc / Emerson
                                                                                                                                                                                            • Model: IC200ALG230D
                                                                                                                                                                                            • Series: VersaMax
                                                                                                                                                                                            • Product Type: Analog Input Module
                                                                                                                                                                                            • Input Channels: 4 single-ended analog inputs
                                                                                                                                                                                            • Input Signal Type:
                                                                                                                                                                                              • Voltage input
                                                                                                                                                                                              • Current input
                                                                                                                                                                                            • Voltage Range:
                                                                                                                                                                                              • 0 to 10 VDC
                                                                                                                                                                                              • ±10 VDC
                                                                                                                                                                                              • ±5 VDC
                                                                                                                                                                                            • Current Range:
                                                                                                                                                                                              • 4–20 mA
                                                                                                                                                                                              • 0–20 mA (with external resistor)
                                                                                                                                                                                            • Resolution: 12-bit (4096 counts)
                                                                                                                                                                                            • Update Rate: 0.4 ms
                                                                                                                                                                                            • Input Filter Response: 5 ms
                                                                                                                                                                                            • Input Type: Single-ended, common return
                                                                                                                                                                                            • Power Consumption: 125 mA from +5 VDC backplane supply
                                                                                                                                                                                            • Status Indicators:
                                                                                                                                                                                              • OK LED
                                                                                                                                                                                              • INT PWR LED
                                                                                                                                                                                            • Mounting: VersaMax I/O carrier base
                                                                                                                                                                                            • Operating Temperature: 0°C to 60°C

                                                                                                                                                                                            ---

                                                                                                                                                                                            Advantages & Features

                                                                                                                                                                                            • Original GE Fanuc VersaMax PLC module
                                                                                                                                                                                            • 4-channel analog signal acquisition capability
                                                                                                                                                                                            • Supports both voltage and current measurement
                                                                                                                                                                                            • 12-bit high-resolution analog conversion
                                                                                                                                                                                            • Fast response time for industrial control applications
                                                                                                                                                                                            • Compact modular design for easy installation
                                                                                                                                                                                            • Compatible with VersaMax PLC control systems
                                                                                                                                                                                            • Reliable performance for continuous automation operation

                                                                                                                                                                                            ---

                                                                                                                                                                                            Applications

                                                                                                                                                                                            • Factory automation systems
                                                                                                                                                                                            • Process monitoring and control
                                                                                                                                                                                            • Temperature measurement systems
                                                                                                                                                                                            • Pressure and flow monitoring
                                                                                                                                                                                            • Level control systems
                                                                                                                                                                                            • Motor and drive feedback monitoring
                                                                                                                                                                                            • Water treatment equipment
                                                                                                                                                                                            • Manufacturing production lines

                                                                                                                                                                                            ---

                                                                                                                                                                                            Notes

                                                                                                                                                                                            • IC200ALG230D is an analog input module, not an analog output module.
                                                                                                                                                                                            • Requires a compatible VersaMax I/O carrier for installation.
                                                                                                                                                                                            • Voltage and current input modes are configured through module jumpers.
                                                                                                                                                                                            • Do not connect voltage and current signals simultaneously on the same channel.
                                                                                                                                                                                            • Confirm PLC configuration and wiring before replacement.

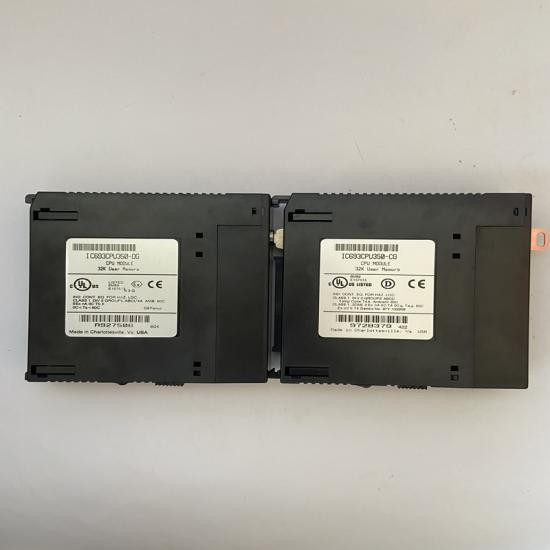

The structure and details of the product：
