                                      • Beckhoff EL1018 Digital Input Terminal

                                        Product Type: EtherCAT Digital Input Terminal
                                        Model: EL1018
                                        Function: 8-Channel Digital Input, 24 V DC
                                        Manufacturer: Beckhoff Automation

                                        The Beckhoff EL1018 is an 8-channel EtherCAT digital input terminal for acquiring binary 24 V DC control signals from sensors and field devices. It provides electrically isolated signal transmission, individual LED indicators and a fast 10 µs input filter, making it suitable for fast industrial automation applications.

                                        Technical Specifications

                                        Parameter	Specification
                                        Model	EL1018
                                        Product Type	EtherCAT Digital Input Terminal
                                        Number of Inputs	8
                                        Input Type	Digital
                                        Connection	1-wire
                                        Nominal Voltage	24 V DC (-15% / +20%)
                                        Signal “0”	-3 to +5 V
                                        Signal “1”	11 to 30 V
                                        Input Current	Typ. 3 mA
                                        Input Filter	Typ. 10 µs
                                        Input Specification	EN 61131-2 Type 1/3
                                        E-bus Current	Approx. 90 mA
                                        Electrical Isolation	500 V
                                        Power Contact Load	Max. 10 A
                                        Diagnostics	LED per channel
                                        Distributed Clocks	No
                                        Configuration	No address/configuration setting
                                        Mounting	35 mm DIN rail
                                        Protection Rating	IP20
                                        Operating Temperature	-25°C to +60°C
                                        Storage Temperature	-40°C to +85°C
                                        Dimensions	12 × 100 × 68 mm
                                        Weight	Approx. 55 g

                                        Specifications are based on Beckhoff's official product information.

                                        Advantages & Features

                                        • 8 Digital Inputs: Allows eight independent 24 V DC signals to be monitored.
                                        • Fast 10 µs Filtering: Provides low input delay for fast switching signals.
                                        • Wide Sensor Compatibility: Suitable for inductive, capacitive and other binary sensors.
                                        • Individual LED Indicators: Provides convenient visual monitoring of each input channel.
                                        • Electrical Isolation: 500 V isolation between E-bus and field potential.
                                        • Compact Design: Only 12 mm wide, saving valuable control cabinet space.
                                        • Simple Integration: Direct EtherCAT connection without address setting or additional configuration.
                                        • Industrial Reliability: Designed for continuous operation in demanding automation environments.

                                        Typical Applications

                                        • Industrial automation
                                        • PLC control systems
                                        • Factory automation
                                        • Machine automation
                                        • Sensor signal acquisition
                                        • Conveyor systems
                                        • Packaging machinery
                                        • Robotics
                                        • Production lines
                                        • Distributed EtherCAT I/O systems

The structure and details of the product：

Please make an inquiry for more models

Beckhoff    AX8620-0000-0000

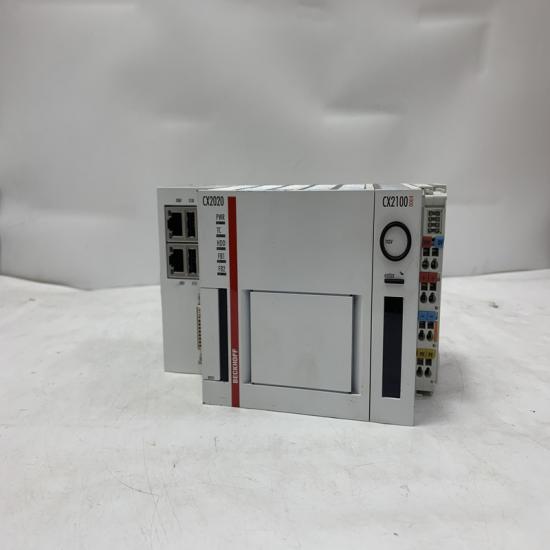

 BECKHOFF        CX2100-0004
