                                                      • BECKHOFF CX1020-0113 Embedded PC

                                                        The BECKHOFF CX1020-0113 is a CX1020 Embedded PC / Industrial Controller with a 1 GHz Intel Celeron M ULV processor, DVI/USB system interface, and TwinCAT 2 NC I Runtime. It is designed for PLC, motion-control and industrial automation applications.

                                                        Key Technical Specifications

                                                        Parameter	Specification
                                                        Brand	BECKHOFF
                                                        Model	CX1020-0113
                                                        Product Type	Embedded PC / Industrial Controller
                                                        Series	CX1020
                                                        Processor	Intel Celeron M ULV
                                                        CPU Speed	1 GHz
                                                        CPU Cores	1
                                                        Main Memory	256 MB DDR RAM
                                                        Flash Storage	CompactFlash, 128 MB included
                                                        Ethernet	2 × RJ45 10/100 Mbit/s
                                                        Ethernet Switch	Integrated
                                                        DVI/USB	DVI-I + 2 × USB 2.0
                                                        Operating System	Windows Embedded CE 6.0
                                                        Software	TwinCAT 2 NC I Runtime
                                                        Cooling	Passive
                                                        Power Supply	Via CX1100 series power supply module
                                                        Max. Power Consumption	Approx. 11 W
                                                        Dimensions	Approx. 96 × 112 × 99 mm
                                                        Weight	Approx. 550 g
                                                        Protection	IP20
                                                        Operating Temperature	0 to +55°C

                                                        The “-0113” configuration specifically identifies DVI/USB, Windows Embedded CE and TwinCAT NC I Runtime.

                                                        Features & Advantages

                                                        • Compact industrial Embedded PC
                                                        • 1 GHz Intel Celeron M processor
                                                        • Dual 10/100 Mbit/s Ethernet ports with integrated switch
                                                        • DVI-I and dual USB 2.0 interfaces
                                                        • TwinCAT 2 NC I Runtime for advanced motion control
                                                        • Fanless/passive cooling design
                                                        • Compact DIN-rail/control-cabinet architecture

                                                        Typical Applications

                                                        • PLC control
                                                        • CNC and motion control
                                                        • Machine automation
                                                        • Industrial networking
                                                        • Material handling
                                                        • Manufacturing systems
                                                        • Beckhoff TwinCAT automation systems

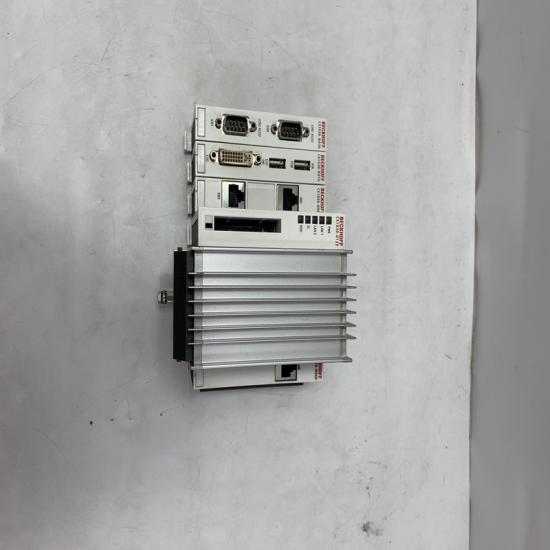

The structure and details of the product：
