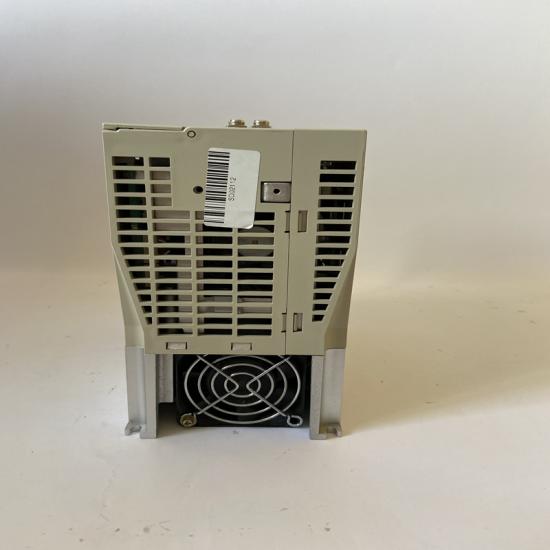

YASKAWA SGD7S-5R5A00A Servo Amplifier Product Information

Model: SGD7S-5R5A00A
Brand: YASKAWA
Product Type: AC Servo Amplifier / Servo Drive (SERVOPACK)
Series: Sigma-7 Series
Application: High-performance servo motor control for industrial automation equipment

Technical Specifications

• Product Type: Single-Axis AC Servo Amplifier
• Series: Sigma-7S
• Model: SGD7S-5R5A00A
• Control Method: Digital servo control
• Number of Axes: 1 Axis
• Input Power Supply: 200 V AC
• Power Phase: 3-Phase
• Applicable Motor Capacity: 0.75 kW
• Rated Output Current: 5.5 A
• Maximum Output Current: Approx. 16.9 A
• Control Interface:
  • Analog Voltage
  • Pulse Train
• Speed Frequency Response: 3.1 kHz
• Feedback: Supports high-resolution encoder feedback
• Safety Functions:
  • STO (Safe Torque Off)
  • SS1 (Safe Stop 1)
  • SS2 (Safe Stop 2)
  • SLS (Safely Limited Speed)
• Mounting: Panel mounting
• Cooling Method: Forced air cooling
• Communication: Compatible with YASKAWA Sigma-7 control systems
• Protection Functions:
  • Overcurrent protection
  • Overvoltage protection
  • Overload protection
  • Encoder error detection

Advantages & Features

High-Speed Servo Response

With a speed frequency response of up to 3.1 kHz, the amplifier provides fast response and improved positioning performance.

High Precision Motion Control

Provides accurate torque, speed, and position control for demanding automation applications.

Advanced Vibration Suppression

Built-in vibration suppression functions help reduce machine vibration and improve positioning stability.

Easy Tuning Function

Supports tuning-less operation and advanced auto-tuning features, reducing commissioning time.

Integrated Safety Functions

Supports STO and advanced safety functions, helping improve machine safety and compliance.

Compact and Reliable Design

Sigma-7 series servo amplifiers provide high performance in a compact industrial package.

Applications

• CNC machines
• Robotics systems
• Semiconductor manufacturing equipment
• Packaging machinery
• Printing machinery
• Electronic assembly equipment
• Material handling systems
• Precision positioning systems
• Industrial automation production lines

Precautions

• Confirm compatibility between servo amplifier and motor model before installation.
• Verify the correct 200 V AC three-phase power supply.
• Ensure encoder wiring is correctly connected.
• Do not exceed rated motor capacity and output current.
• Perform servo parameter configuration before operation.
• Ensure proper grounding to reduce electrical interference.
• Avoid installation in environments with excessive dust, moisture, or vibration.
• Maintenance should be performed by qualified technicians.
