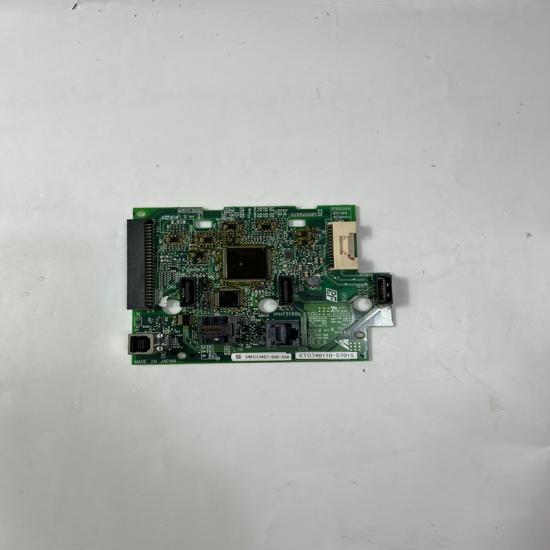

YASKAWA PG-X3 Encoder Feedback Option Card

Product Description

The Yaskawa PG-X3 Encoder Feedback Option Card is a motor encoder feedback interface option designed for Yaskawa AC drives. It allows connection to incremental line driver encoders to provide motor speed feedback, improving speed control accuracy and performance in closed-loop vector control applications.

Technical Specifications

Advantages & Features

• Provides high-precision motor speed feedback
• Supports closed-loop vector control operation
• Improves motor speed stability and torque performance
• Supports incremental line driver encoder connection
• High-speed encoder signal processing up to 300 kHz
• Provides accurate feedback for load variation compensation
• Compact plug-in design for easy installation
• Enhances drive control accuracy and system performance

Applications

• Industrial Motor Control Systems
• Hoisting and Crane Equipment
• Elevators and Lifting Systems
• Conveyor Systems
• Machine Tools
• High-Precision Motion Control
• Factory Automation Equipment
• Pump and Fan Control Systems

Precautions

• Confirm compatibility between PG-X3 and the Yaskawa drive model before installation.
• Use only compatible incremental line driver encoders.
• Do not use open collector encoder types with PG-X3.
• Check encoder wiring polarity and shielding.
• Configure encoder parameters correctly in the drive.
