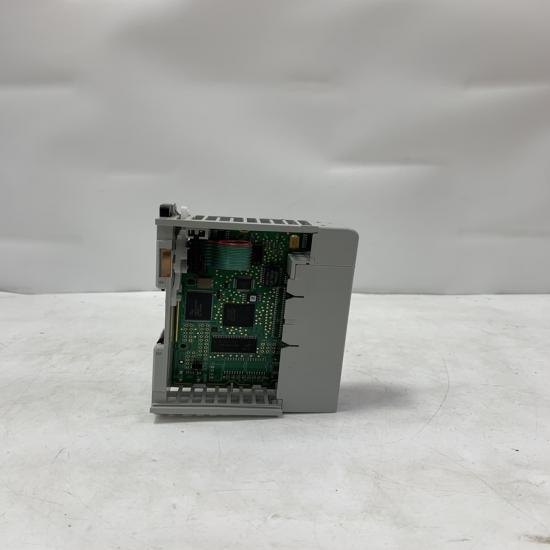

• • • • • • • • • • • PROSOFT PLX51-DF1-ENI DF1 Ethernet Gateway

                      Specification	Details
                      Brand	ProSoft Technology
                      Model	PLX51-DF1-ENI
                      Product Name	DF1 Routing Module
                      Product Type	DF1-to-EtherNet/IP Gateway
                      Ethernet Protocol	EtherNet/IP
                      Ethernet Connector	RJ45
                      Ethernet Speed	10/100 Mbps
                      Ethernet Connections	Up to 20 ARP / 20 TCP / 10 CIP
                      DF1 Protocols	DF1 Full Duplex, Half Duplex, Radio Modem
                      DF1 Baud Rate	1,200–115,200 bps
                      DF1 Data Bits	8
                      DF1 Stop Bits	1
                      DF1 Parity	None, Even, Odd
                      DF1 Error Detection	CRC, BCC
                      Bridge Mode	Up to 20 routes / 8 controllers
                      Slave Mode	Up to 20 routes
                      Power Supply	10–28 VDC
                      Current Consumption	70 mA @ 24 VDC; 130 mA @ 10 VDC
                      Power Consumption	1.7 W
                      Dimensions (H × W × D)	101 × 22.5 × 120 mm
                      Enclosure Rating	IP20 / NEMA UL Open Type
                      Operating Temperature	-20°C to +70°C
                      Mounting	DIN Rail
                      Configuration Software	ProSoft PLX50 Configuration Utility

                      Key Technical Specifications

                      • Converts/routs DF1 communications to EtherNet/IP.

                      • Supports DF1 Full Duplex, Half Duplex and Radio Modem protocols.

                      • Ethernet communication at 10/100 Mbps with Auto-MDIX.

                      • Supports up to 8 Logix controllers in bridge applications.

                      • Supports PLC-5, SLC and PLC-2 message types.

                      • Compatible with SLC 500, MicroLogix, CompactLogix and other DF1-enabled devices.

                      • Provides a modernization path from legacy 1761-NET-ENI applications.

                      Advantages & Features

                      • Enables legacy DF1 devices to communicate with modern EtherNet/IP systems.

                      • Direct-to-tag technology simplifies data mapping.

                      • Built-in packet analyzer assists DF1 network troubleshooting.

                      • Configuration can be secured using the module switch.

                      • Suitable for controller-to-controller and HMI communication.

                      • Compact DIN-rail design.

                      Applications

                      • Allen-Bradley SLC 500 modernization

                      • MicroLogix to EtherNet/IP integration

                      • PLC-5 communication

                      • CompactLogix integration with legacy DF1 devices

                      • SCADA and DCS gateways

                      • HMI modernization

                      • Remote PLC programming

                      • Industrial automation network migration

                      Precautions

                      • This is a communication gateway/routing module, not a PLC.

                      • Verify the DF1 device protocol, baud rate, parity and addressing before configuration.

                      • Use the ProSoft PLX50 Configuration Utility for setup.

                      • Use shielded/appropriate Ethernet cabling for the industrial environment.

                      • Confirm the supply voltage is within 10–28 VDC.

                      • Check firmware and configuration compatibility when replacing an existing gateway.
