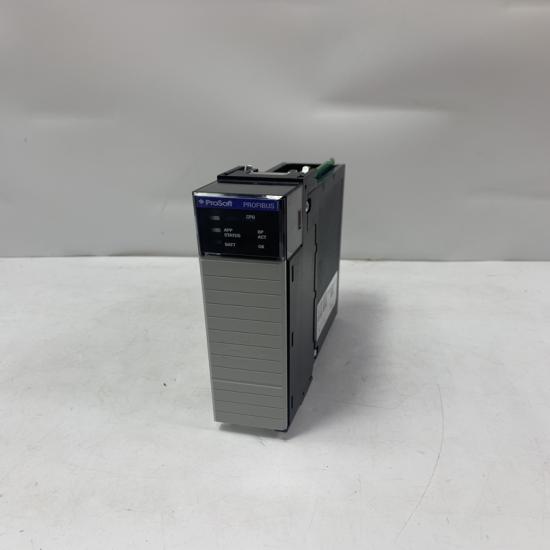

PROSOFT MVI56-PDPMV1 Communication Module

• Multi-protocol Communication Conversion: It supports the PROFIBUS DP master protocol and can communicate with a variety of PROFIBUS-standard slave devices (such as sensors, drivers, instruments, etc.). At the same time, it is perfectly adapted to the ControlNet/ EtherNet/IP networks of Rockwell ControlLogix series PLCs, enabling fast data conversion and two-way transmission between different protocols, breaking down the barriers of industrial network communication.​

• High-speed Data Transmission: Using high-speed communication chips and optimized communication algorithms, the data transmission rate can reach up to 12Mbps. It can quickly process a large amount of data, ensuring that there is no delay or loss of data in industrial control scenarios with high real-time requirements, and guaranteeing the smooth operation of the production process.​

• Flexible Configuration and Management: Through the supporting MVI configuration software, users can easily set communication parameters, define data mapping, and monitor the module status. It supports online configuration and firmware upgrades, allowing parameter adjustment and function updates to be completed without downtime, which is convenient and greatly improves system maintenance efficiency.​

• Fault Diagnosis and Redundancy: It has a complete fault diagnosis function. Through LED indicator lights and diagnostic information output, it can quickly locate communication failures, equipment abnormalities, and other problems. It supports hot standby redundancy. When the main module fails, the standby module can automatically switch seamlessly, ensuring continuous system operation and enhancing system reliability.​

• Communication Interfaces: Equipped with 1 PROFIBUS DP interface (9-pin D-type connector), compliant with EN 50170 standard; integrated with ControlLogix backplane interface, which can be directly installed in the ControlLogix rack.​

• Supported Protocols: PROFIBUS DP V0 master protocol, ControlNet, EtherNet/IP protocol.​

• Data Capacity: Supports a maximum input/output data volume of 244 bytes, meeting the data interaction requirements of complex industrial applications.​

• Working Environment: The operating temperature is -40°C - 70°C, and the storage temperature is -40°C - 85°C; the relative humidity is 5% - 95% (non-condensing); the protection level is IP20, adapting to harsh industrial environments.​

• Power Supply Requirements: Powered by the ControlLogix rack, with low power consumption and no additional power supply burden.​

• High Compatibility: Deeply integrated with Rockwell ControlLogix series PLCs, and at the same time compatible with a wide range of PROFIBUS DP slave devices, it can be seamlessly integrated into existing industrial automation systems, reducing the difficulty and cost of system integration.​

• Stable and Reliable: Using industrial-grade components, and through strict testing and verification, it has a long Mean Time Between Failures (MTBF). It can operate stably in harsh environments such as high temperature, humidity, and strong electromagnetic interference, ensuring the continuity of industrial production.​

• Easy to Use: The graphical configuration interface and detailed user manual enable engineers to quickly get started. Even non-professionals can easily complete the installation, configuration, and maintenance of the module.​

• Comprehensive Technical Support: PROSOFT provides comprehensive technical support and training services, including online technical documents, telephone support, on-site debugging guidance, etc., to solve various problems encountered by users during use.​

• Automobile Manufacturing Production Lines: During the automobile assembly process, it enables communication between PLCs and various PROFIBUS devices (such as robot controllers, torque wrenches, sensors), precisely controlling the production process and improving assembly accuracy and production efficiency.​

• Petrochemical Industry: Used to connect PLCs with field instruments, valve positioners, and other PROFIBUS devices, it can collect process parameters in real time, realize remote monitoring and automated control, and ensure safe and stable production.​

• Power Automation Systems: In scenarios such as substations and switchgear rooms, it connects PLCs with smart meters, relay protection devices, etc., enabling fast transmission and centralized management of power data, and enhancing the intelligence level of the power system.​

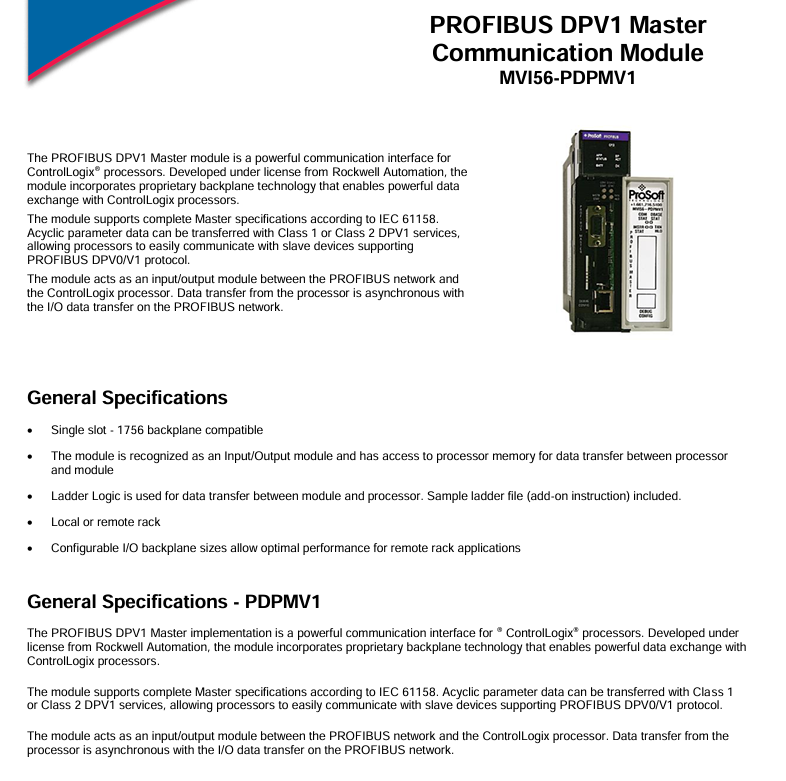

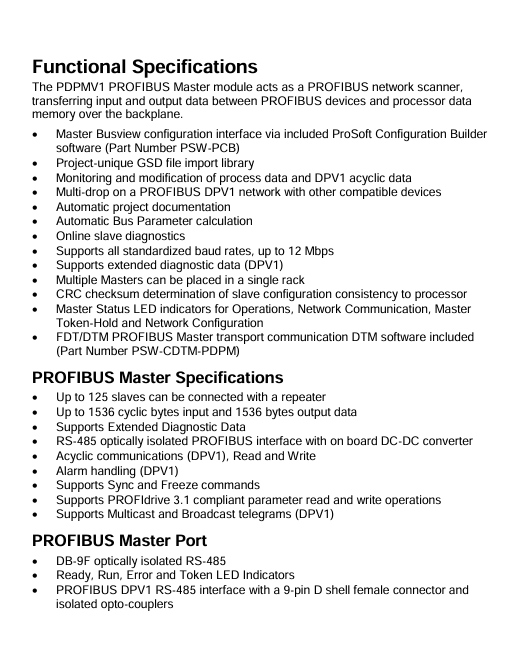

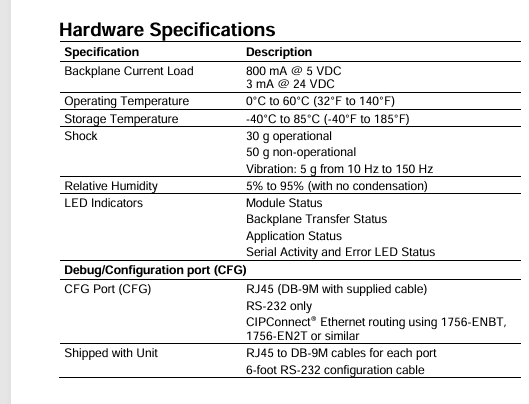

The structure and details of the product：
