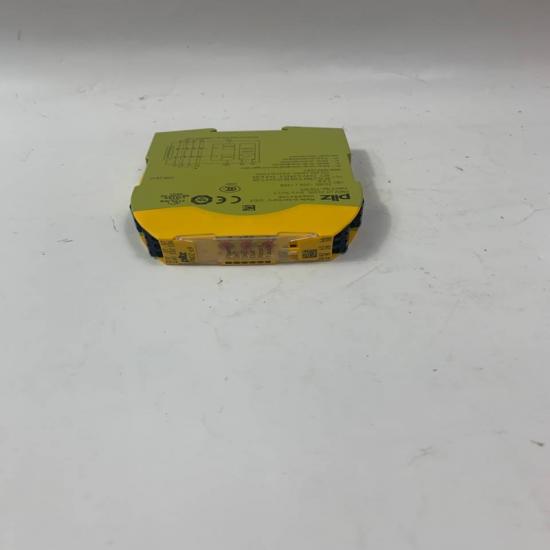

PILZ PNOZ M1P 773100 Safety Controller

Product Overview

The PILZ PNOZ m1p (773100) is a configurable PNOZmulti Classic safety controller base unit for monitoring and controlling safety functions such as emergency stops, safety gates, and light barriers. It has 20 safe digital inputs, 4 safe semiconductor outputs, and 2 safe relay outputs, with an RS-232 serial interface.

Key Technical Specifications

The semiconductor outputs are short-circuit-proof, while the relay outputs provide galvanically isolated safety contacts.

Advantages & Features

• Configurable safety control architecture
• 20 safe digital inputs
• Four powerful semiconductor outputs
• Two galvanically isolated relay outputs
• Expandable PNOZmulti Classic platform
• RS-232 communication interface
• Suitable for multiple safety functions in one controller
• Compact DIN-rail installation

Typical Applications

• Emergency-stop monitoring
• Safety door and gate monitoring
• Light curtain / light barrier monitoring
• Two-hand control systems
• Machine safety systems
• Packaging machinery
• Industrial automation equipment
• Production and manufacturing lines

Important Notes

• The unit requires 24 VDC supply and should only be installed and commissioned by qualified personnel.
• The correct PNOZmulti Configurator project and compatible configuration must be used.
• Verify the connected safety devices, wiring, and output ratings before commissioning.
• Do not use the safety outputs beyond their specified voltage/current ratings.
• PILZ currently lists 773100 as no longer available and at the end of its product lifecycle; replacement/successor selection should be confirmed with PILZ.
