PILZ 750109 safety relay

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

PILZ 750109 Safety Relay (PNOZ S9 Series)

Product Overview

The PILZ 750109 is a compact safety relay from the PNOZ S9 series, designed for emergency stop (E-STOP), safety door monitoring, and light curtain control in industrial automation. It features dual-channel fault detection and time-delay functions, ensuring compliance with PL e (ISO 13849-1) and SIL CL 3 (IEC 61508) safety standards .

Key Features & Technical Specifications

1. Safety & Control Functions

• Input Configuration:

  • 1 or 2-channel wiring (supports contact short-circuit detection) .

  • 24V DC power supply (compatible with industrial control systems) .

• Output Configuration:

  • 3 normally open (NO) safety contacts (5A @ 24V DC / 240V AC) .

  • 1 normally closed (NC) auxiliary contact (for feedback signals) .

  • 1 semiconductor output (for diagnostic signals) .

• Timing Functions:

  • Adjustable delay (0.04–300 seconds) for power-on delay, power-off delay, or pulse mode .

2. Electrical & Environmental Specs

• Power Supply: 24V DC (2W power consumption) .

• Contact Material: AgCuNi (silver-copper-nickel alloy) with 0.2µm gold plating for durability.

• Operating Temperature: -10°C to +55°C (with 93% humidity tolerance @ 40°C) .

• Protection Rating: IP20 (control cabinet use).

3. Mechanical & Installation

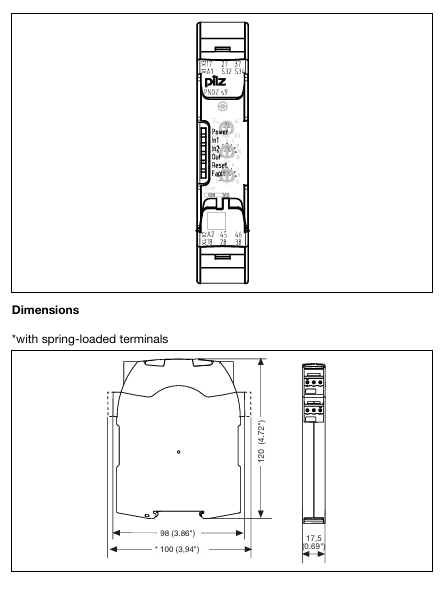

• Dimensions: 17.5 mm (W) × 98 mm (H) × 120 mm (D) .

• Terminal Type: Plug-in screw terminals (supports 24–12 AWG wires) .

• Mounting: DIN rail or panel-mounted .

4. Certifications

• CE, cULus, TÜV, KOSHA, CCC (global compliance) .

Applications

1. Emergency Stop Circuits:

   • Immediate power cutoff in CNC machines, presses, and robotic cells .

2. Safety Door Monitoring:

   • Prevents machine startup if safety gates are open .

3. Light Curtain & Sensor Integration:

   • Stops equipment when personnel enter hazardous zones.

Installation & Usage Notes

1. Wiring:

   • Use shielded cables to prevent EMI interference.

2. Testing:

   • Regularly test delay functions and contact resistance (normal: <0.1Ω for closed contacts) .

3. Maintenance:

   • Inspect gold-plated contacts for wear in high-frequency switching applications .

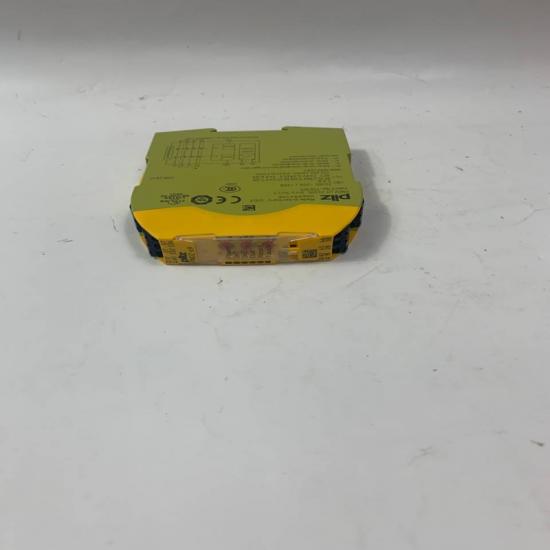

The structure and details of the product：
