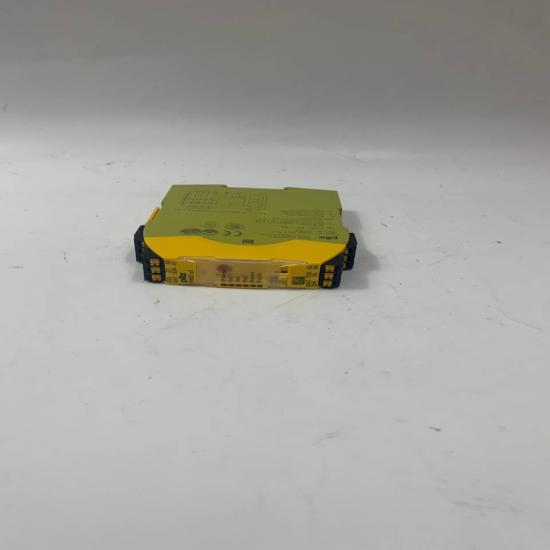

PILZ 774131 Safety Relay Module

Product Overview

Brand: PILZ
Model: 774131
Product Type: Safety Relay Module
Series: PNOZ e1vp
Application: Emergency Stop, Safety Gate Monitoring, Machine Safety Control

The PILZ 774131 PNOZ e1vp is a compact safety switching relay used for monitoring emergency stop devices, safety doors, light curtains, and feedback loops in industrial safety circuits. It provides safe shutdown functions for machinery and automation systems.

Technical Specifications

Main Features

• Emergency stop monitoring
• Safety door monitoring
• Feedback loop monitoring
• Single-channel / dual-channel wiring support
• Short circuit detection between contacts
• Automatic or monitored manual reset
• Adjustable off-delay time
• LED status indication

Safety Functions

Supports:

• Emergency stop circuits
• Safety gate switches
• Light beam safety devices
• Machine shutdown control
• Safe delay timer functions

The module provides delayed safety outputs with selectable delay times (up to 10 seconds).

Applications

• Industrial machinery
• Packaging equipment
• Robotics systems
• Production lines
• Automation safety systems
• Machine guarding systems
