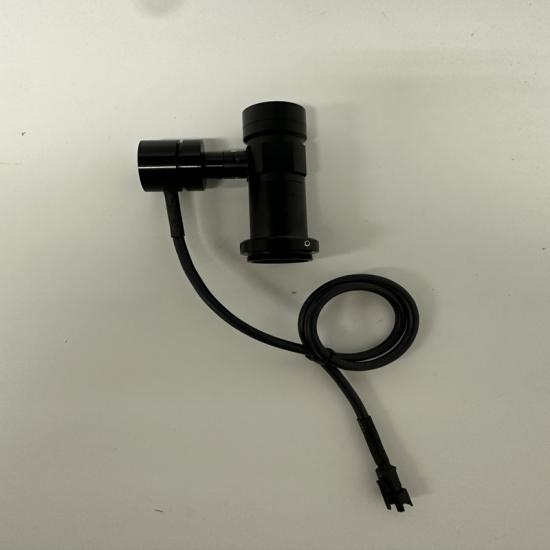

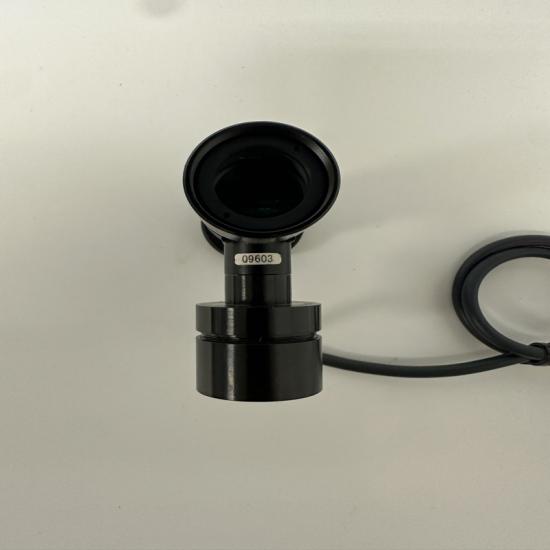

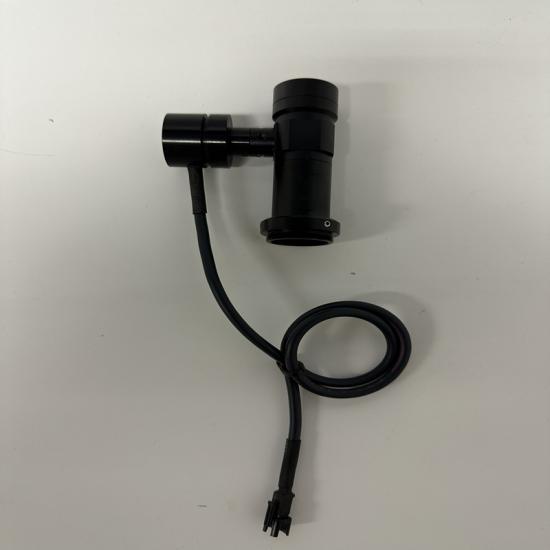

MORITEX Q9603 Machine Vision Optical Component

Product Overview

The MORITEX Q9603 is an industrial machine vision optical component, typically used as part of a lighting or optical transmission system in automated inspection setups.

Unlike a standalone lens (such as MML series telecentric lenses), the Q9603 is generally used as a supporting optical element, working together with:

• machine vision lenses
• LED illumination systems
• fiber light guides

Manufacturer Context

MORITEX is a Japanese-origin (now Cognex group) company specializing in:

• machine vision lenses
• telecentric optics
• LED illumination systems
• fiber light guides
• optical modules for automation

The Q9603 belongs to this industrial optical subsystem ecosystem, not a general consumer optical part.

Functional Role (Typical Use)

Depending on system configuration, components like Q9603 are commonly used for:

• Light conditioning (diffusion / homogenization)
• Beam shaping in inspection systems
• Optical coupling between illumination and lens system
• Improving image uniformity in machine vision cameras
• Reducing glare or hot spots in inspection lighting

Key Characteristics (General Industrial Level)

Although Q9603 is not always published as a standalone spec sheet like lenses, MORITEX optical modules typically share:

• High optical precision manufacturing
• Designed for industrial machine vision environments
• Compatible with LED / fiber illumination systems
• Low distortion optical behavior (system-level)
• Stable performance in continuous operation
• Dust-resistant industrial construction (depending housing type)

Typical Applications

• Semiconductor inspection systems
• Electronics PCB inspection lines
• LCD / display manufacturing
• Automotive component inspection
• Precision assembly verification
• Automated optical inspection (AOI) systems
• Robotics vision lighting systems
