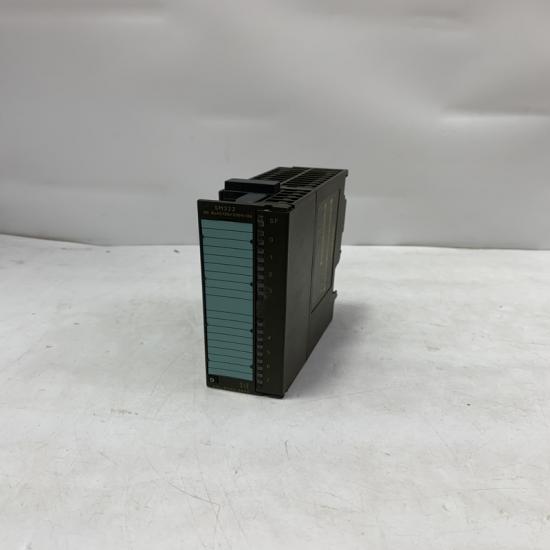

SIEMENS c digital output module
The SIEMENS 6ES7322-1FF01-0AA0 digital output module is a core component of the SIMATIC S7-300 series, specifically designed for precise command output in industrial automation control systems. With its high reliability, fast response capabilities, and flexible configuration options, this module is widely used in industries such as manufacturing, energy, and building automation, providing a solid guarantee for the stable operation and efficient control of automated equipment.

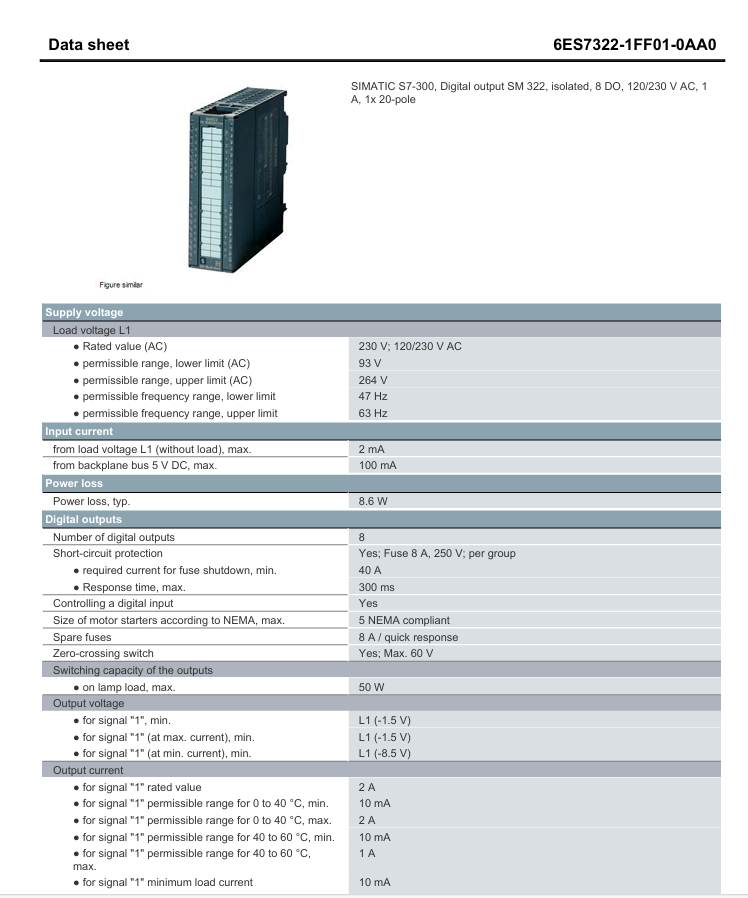

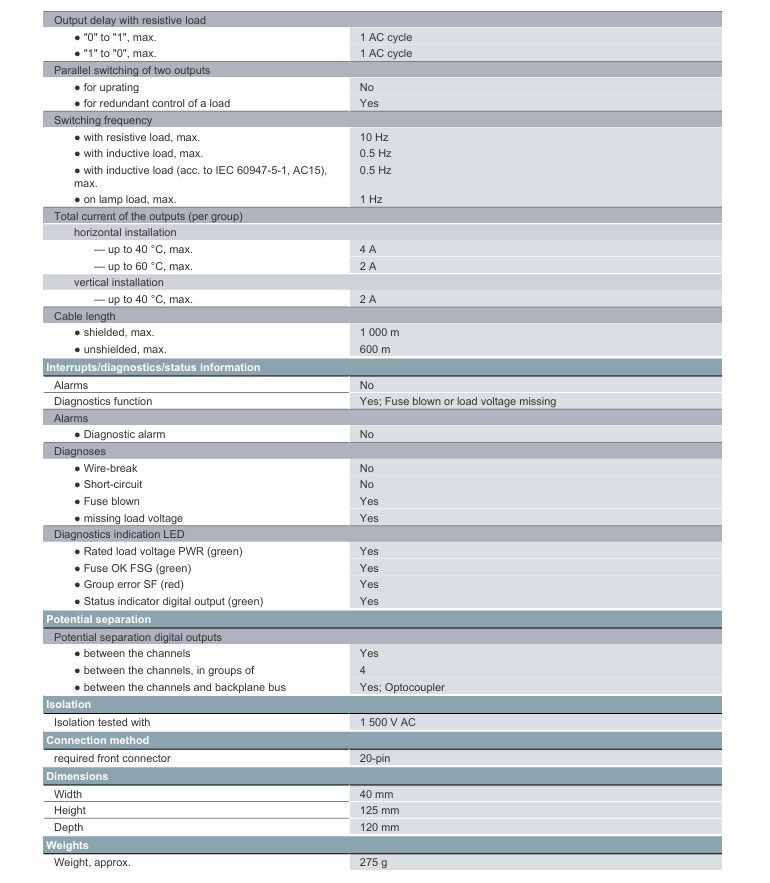

Product Specifications
- Series Affiliation：As an important part of the SIEMENS SIMATIC S7-300 series, the 6ES7322-1FF01-0AA0 digital output module can be seamlessly integrated with S7-300 series PLC controllers. Leveraging SIEMENS' mature automation ecosystem, it enables efficient collaborative operation between devices, meeting the diverse requirements of various industrial automation projects.
- Output Channel Configuration：Equipped with 16 digital output channels, each channel supports PNP output. It can reliably drive various loads such as solenoid valves, contactors, and indicator lights, and can simultaneously control the start-stop and switch actions of multiple devices. It is suitable for centralized control scenarios of multiple devices in complex industrial processes.
- Electrical Specifications：The output voltage is 24V DC, and the rated output current of each channel reaches 0.5A. Some channels can withstand an inrush current of up to 2A for a short time, demonstrating strong load-carrying capacity. It supports short-circuit protection. When a short circuit occurs in the output circuit, it can quickly cut off the current, effectively protecting the module and load devices and enhancing system safety.
- Response Time：The output response speed is extremely fast. From the moment the PLC sends a control signal to the completion of the output action by the module, the turn-on delay time is ≤1.2ms, and the turn-off delay time is ≤0.5ms. It can quickly respond to control system commands, ensuring that equipment performs operations in a timely manner, meeting the requirements of automation control scenarios with high real-time requirements.
- Communication Interface：It communicates with the PLC at high speed through the PROFIBUS DP bus, supporting a variety of transmission rates from 9.6 kbps to 12 Mbps, which can be flexibly configured according to the actual application scenario. The communication process is stable and reliable, ensuring that control commands are accurately transmitted to the output module for precise control.
- Diagnostic Function：It has a built-in intelligent diagnostic system that can monitor the status of each output channel in real time, such as output overload, short circuit, and disconnection faults. Once an anomaly is detected, the module intuitively displays fault information through LED indicators and simultaneously feeds back diagnostic data to the PLC, facilitating maintenance personnel to quickly locate and troubleshoot faults and reducing equipment downtime.
Product Attributes
- Physical Dimensions：The module size is 125mm×100mm×120mm (Length×Width×Height). With a compact modular design, it can be conveniently installed on a standard DIN rail, effectively saving space in the control cabinet. It is easy to integrate with other S7-300 series modules and is suitable for various industrial control cabinet layouts.
- Weight：Approximately 0.3kg. The lightweight makes it easy to install, handle, and maintain, reducing the workload of operators and improving work efficiency.
- Environmental Adaptability：The operating temperature range is 0°C to 60°C, allowing it to operate stably in most conventional industrial environment temperatures. The storage temperature range is - 25°C to 70°C, ensuring that the product is not affected by extreme temperatures during transportation and storage. The relative humidity is 5% - 95% (non-condensing), and the protection level reaches IP20, providing basic dust-proof capability. It can adapt to the environmental conditions of most industrial production workshops.
- Certification Standards：It has passed international authoritative certifications such as CE and UL. Manufactured in strict accordance with international electrical safety, electromagnetic compatibility, and other standards, the product quality and safety are globally recognized, and it can be safely applied to industrial automation projects around the world.
-
- The structure and details of the product：
-
