Siemens 6BK1700-2BA80-0AA0 Communication Module

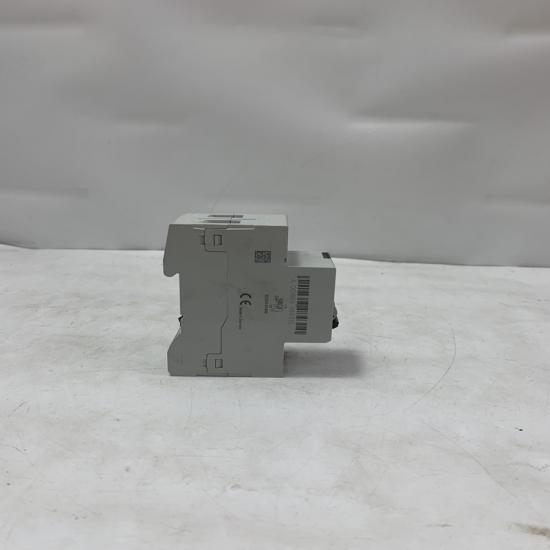

Siemens 6BK1700-2BA80-0AA0 Digital Output Module (SIPLUS HCS300I DM6)

Product Description
Siemens 6BK1700-2BA80-0AA0 is a SIPLUS HCS300I DM6 Digital Output Module designed for industrial heating control systems. It provides six digital outputs with an integrated interface for connecting solid-state relays (SSR), allowing precise control of heating elements and power switching devices.

Technical Parameters

• Brand: Siemens
• Model: 6BK1700-2BA80-0AA0
• Product Type: Digital Output Module
• Series: SIPLUS HCS300I Heating Control System
• Module Type: DM6 Digital Module
• Digital Outputs: 6 channels
• Output Type: Semiconductor output (High-side switch)
• Rated Output Voltage: 24 V DC
• Output Voltage Range: 18.2…28.8 V DC
• Maximum Output Current: 500 mA per channel
• Short-Circuit Protection: Yes
• Interface: Integrated interface for solid-state relay connection
• Power Supply: Supplied via base unit
• Mounting: DIN rail mounting / screw mounting
• Protection Class: IP20
• Operating Temperature: -25°C to +60°C

Advantages & Features

• Designed specifically for industrial heating control applications
• Six-channel digital output control
• Direct connection interface for solid-state relays
• Reliable semiconductor switching performance
• Short-circuit protected outputs
• Compact modular design for easy installation
• Suitable for continuous industrial operation

Applications

• Industrial heating control systems
• Plastic processing machinery
• Semiconductor manufacturing equipment
• Packaging machines
• Thermal processing systems
• Factory automation equipment

Notes

• Confirm compatibility with SIPLUS HCS300I system before installation.
• Check output voltage and SSR connection requirements.
• Ensure correct wiring and grounding.
• Disconnect power before installation or maintenance.
