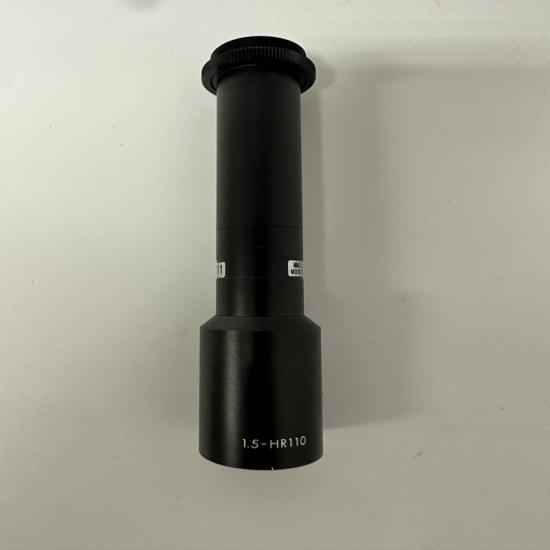

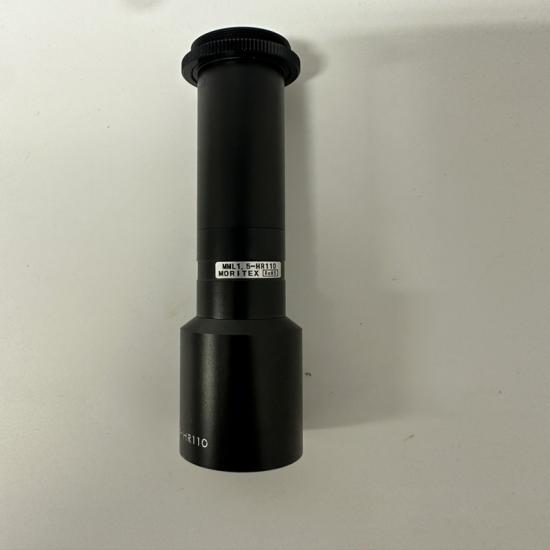

MORITEX MML1.5-HR110 Industrial Machine Vision Lens

Product Overview

The MORITEX MML1.5-HR110 is a fixed-magnification telecentric machine vision lens designed for high-precision measurement, alignment, and industrial inspection. It belongs to the MORITEX MML High Resolution series and is optimized for machine vision systems requiring minimal image distortion and excellent edge-to-edge resolution.

Key Specifications

• Brand: MORITEX
• Model: MML1.5-HR110
• Product Type: Object-side telecentric machine vision lens
• Magnification: 1.5× (±5%)
• Working Distance (WD): 111 mm
• Resolution: 5.4 μm
• Depth of Field: 0.42 mm
• Numerical Aperture (NA): 0.063
• Effective F-Number: F12
• Optical Distortion: 0.076%
• Largest Compatible Sensor: 2/3-inch
• Lens Mount: C-Mount
• Weight: Approximately 98 g
• Designed For: High-resolution industrial cameras and precision measurement applications.

What It Does (Simple Explanation)

Unlike conventional lenses, a telecentric lens keeps the viewing angle nearly constant across the entire field of view.

This provides:

• Highly accurate dimensional measurements
• Extremely low perspective error
• Consistent magnification even when object height changes slightly
• Sharp focus across the inspection area

It is especially suitable for automated optical inspection where measurement accuracy is critical.

Key Features

• Fixed 1.5× optical magnification
• Object-side telecentric optical design
• High-resolution imaging (5.4 μm)
• Very low image distortion
• Excellent edge-to-edge image quality
• C-Mount compatibility
• Supports cameras up to 2/3-inch sensors
• Compact and lightweight industrial design

Advantages

• Ideal for precision dimensional measurement
• Eliminates perspective distortion
• Excellent repeatability for automated inspection
• High image contrast and sharpness
• Easy integration with industrial machine vision cameras
• Suitable for continuous industrial operation

Applications

• Machine vision inspection
• Precision dimensional measurement
• Electronic component inspection
• Semiconductor manufacturing
• PCB inspection
• Alignment systems
• Robotics vision guidance
• Automated optical inspection (AOI)
• Quality control systems
