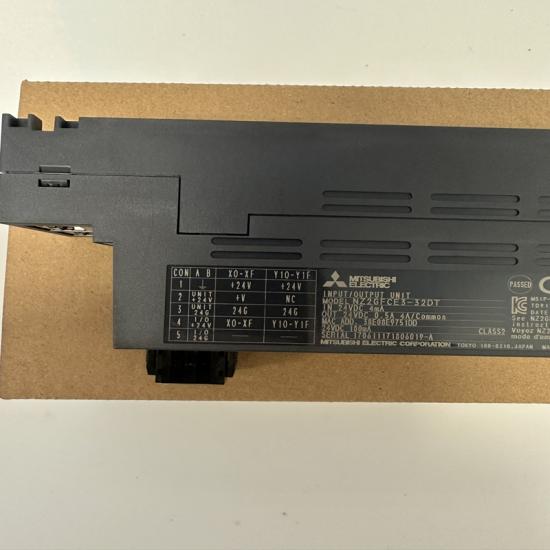

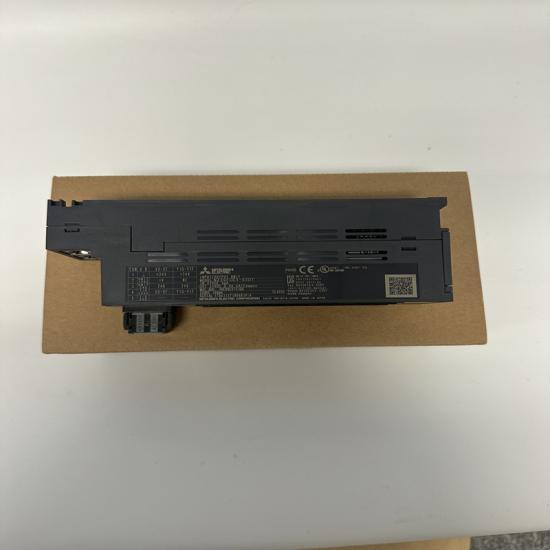

Mitsubishi NZ2GFCE3-32DT CC-Link IE Field Network Module

Mitsubishi NZ2GFCE3-32DT | CC‑Link IE Field Network Remote I/O Module

Specifications

• I/O Configuration: 16 × DC input (DI) + 16 × transistor output (DO) = 32 points total
• Input: 24 V DC, positive common (+COM), sink; 4 mA typical per point
• Output: 24 V DC, sink transistor; max 0.5 A per point
• Power Supply: 24 V DC (20.4–28.8 V); consumption ≤ 180 mA
• Communication: CC‑Link IE Field, 1 station occupied
• Isolation: Photocoupler isolated (input & output)
• Wiring: e‑CON quick connectors (field‑wirable)

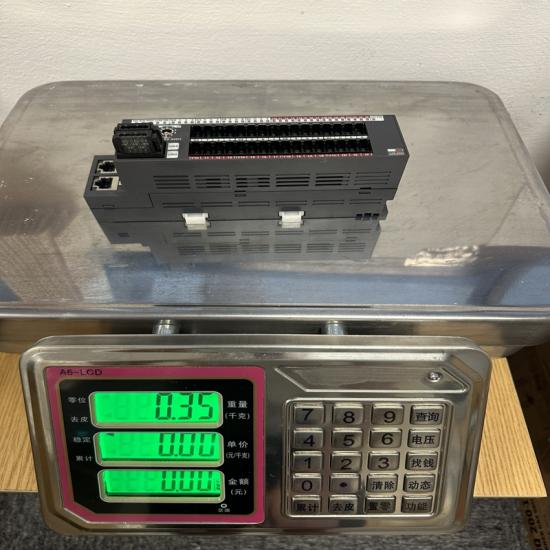

• Dimensions: 194 × 50 × 68 mm; weight ~0.3 kg
• Operating Temp: –10 °C to +55 °C; storage –25 °C to +75 °C
• Certifications: CE, UL, cUL, RCM; conforms to IEC 61131‑2

Key Features

1. Compact 32‑Point I/O: 16DI + 16DO in a slim block design, saves cabinet space.
2. e‑CON Quick Connection: Tool‑less wiring, reduces installation time and errors.
3. High‑Speed CC‑Link IE: 10 Mbps communication for fast, deterministic I/O control.
4. Sink Logic (NPN): Common +24 V input/output, widely compatible with sensors/actuators.
5. Industrial Hardened: Shock/vibration resistant (147 m/s²), suitable for factory floor environments.

Applications

• Factory automation, assembly lines, material handling
• Packaging machinery, machine tools, robotics
• Distributed I/O systems with CC‑Link IE Field networks
• General‑purpose digital sensing and actuation
