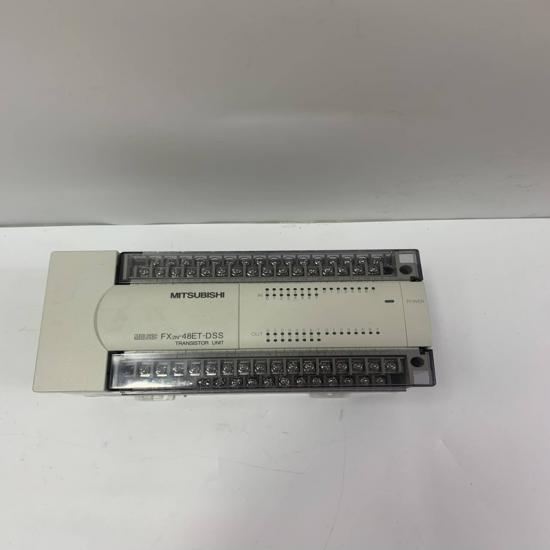

MITSUBISHI FX2N-48ET-DSS Compact Expansion Unit

• I/O Point Expansion: It provides 24 input points and 24 transistor output points, effectively expanding the control scale of the PLC system. It can connect more sensors, switches, solenoid valves, motors and other devices, meeting the demand for I/O quantity in complex industrial control.​

• High-speed Pulse Output: It supports high-speed pulse output function, with a maximum output frequency of up to 200kHz. It is suitable for precise control of stepper motors and servo motors, helping to achieve high-precision positioning and motion control tasks.​

• Convenient Communication Connection: Equipped with an RS-485 communication interface, it supports Mitsubishi's proprietary communication protocol and Modbus RTU protocol, facilitating data exchange with the PLC main unit and other devices, enabling system integration and remote monitoring.​

• Reliable Electrical Isolation: The input/output channels adopt optoelectronic isolation technology, with good electrical isolation performance, effectively isolating external electrical interference and enhancing system stability and anti-interference ability.​

• Input Characteristics: 24 DC 24V input points, with an adjustable response time of 1 - 15ms, supporting the access of NPN/PNP sensors.​

• Output Characteristics: 24 transistor output points, with a maximum load current of 0.5A per point and a response time of less than 0.2ms, capable of driving various DC loads.​

• Power Requirements: Powered by the PLC main unit without the need for an additional independent power supply, reducing the complexity and cost of system cabling.​

• Working Environment: The operating temperature is 0°C - 55°C, and the storage temperature is -20°C - 70°C; the relative humidity is 35% - 85% (non-condensing); the protection level is IP20, adapting to conventional industrial environments.​

• Compact and Easy to Install: Small in size, it adopts a rail-mounted installation method and can be easily installed in the control cabinet, saving installation space, especially suitable for industrial applications with limited space.​

• High Compatibility: It is seamlessly compatible with the FX2N series PLCs, plug-and-play, without the need for complex settings and debugging. It can quickly integrate into the existing PLC control system to achieve function expansion.​

• Stable and Reliable: Using industrial-grade components and undergoing strict testing, it has the ability to resist vibration and electromagnetic interference, with a long mean time between failures, ensuring stable system operation.​

• Cost-effective: It realizes the function expansion of the PLC system at a low cost, avoiding the replacement of large-scale PLCs due to insufficient I/O points, helping enterprises save automation transformation costs.​

• Small-scale Automated Production Lines: In small-scale production lines such as food packaging and electronics assembly, it expands the I/O points of the PLC to achieve precise control of conveyor belt start/stop, robotic arm movement, product sorting and other processes.​

• Machine Tool Control: Used for the automation transformation of ordinary machine tools or CNC machine tools, it controls the motor through high-speed pulse output to achieve precise motion control such as tool feed and spindle speed regulation.​

• Building Automation Subsystems: In the lighting, ventilation, water supply and drainage and other subsystems of intelligent buildings, it connects various sensors and actuators to achieve automatic control and status monitoring of equipment.​

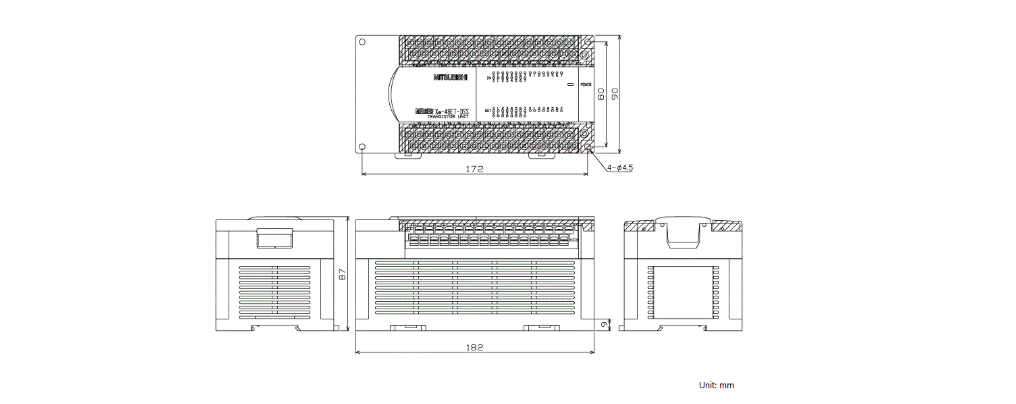

The structure and details of the product：
