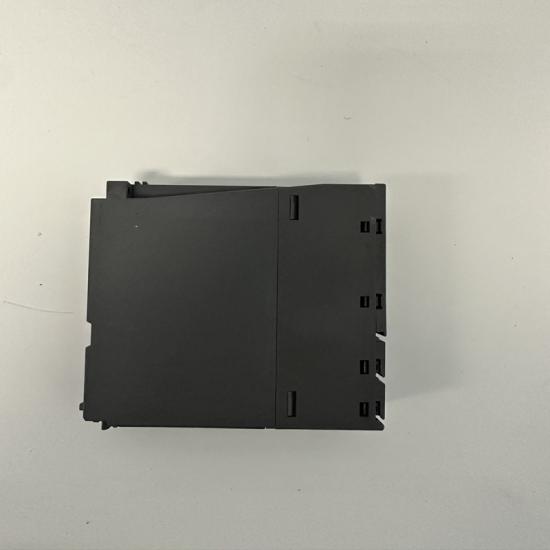

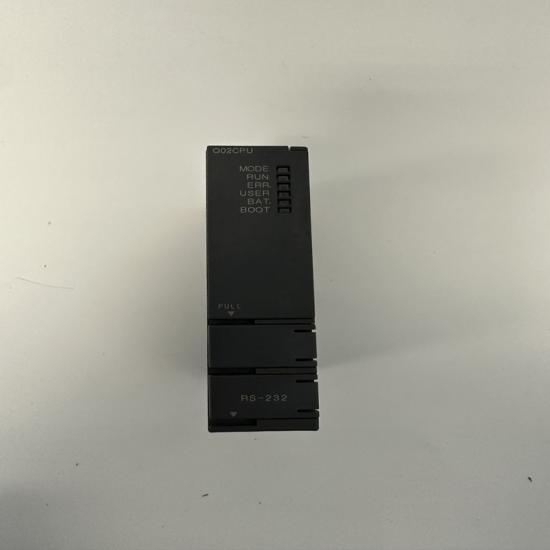

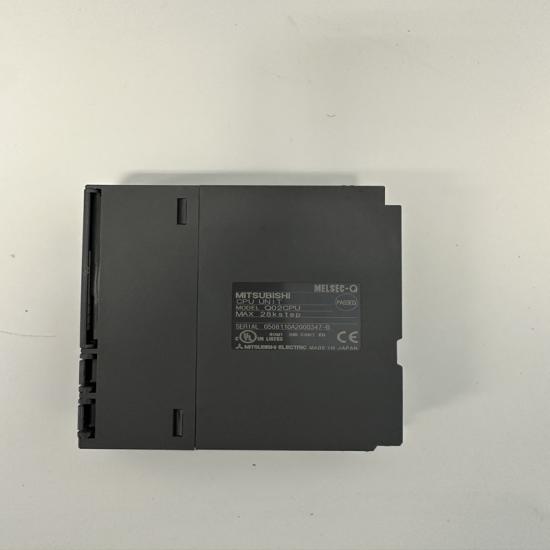

Mitsubishi Q02CPU PLC CPU Module

Mitsubishi Q02CPU | PLC CPU Module

Specifications

• Program Capacity: 28K steps (112 KB program memory)MITSUBISHI ELECTRIC
• Max I/O Points: 4,096 (local); 8,192 (soft components X/Y)MITSUBISHI ELECTRIC
• Processing Speed:
  • LD X0: 79 nsMITSUBISHI ELECTRIC
  • MOV: ~158 ns
• Memory:
  • Standard RAM: 64 KB
  • Standard ROM: 112 KB
  • External memory card: RAM up to 2 MB, ROM up to 32 MB
• Interfaces:
  • RS‑232 (D‑Sub 9‑pin, for programming & communication)
  • Memory card slot (Q2MEM series)MITSUBISHI ELECTRIC
• Power Consumption: 5 VDC @ 0.23 A (from backplane)
• Dimensions (W×H×D): 27.4 × 98 × 90 mm
• Weight: 0.13 kg
• Certifications: UL, cUL, CE (EMC/RoHS), KC, DNV, ABSMITSUBISHI ELECTRIC

Key Features

1. High‑speed logic: 79 ns per basic instruction, ideal for fast cycle applicationsMITSUBISHI ELECTRIC。
2. Large I/O capacity: 4,096 local I/O, supports complex machine & process controlMITSUBISHI ELECTRIC。
3. Onboard RS‑232: direct connection to HMI, PC, or serial devices without extra modules。
4. Memory expandable: supports external RAM/ROM cards for data logging & program backup。
5. Multi‑language programming: Ladder, ST, SFC, FBD, MELSAP3。

Applications

• Factory automation, assembly lines, packaging machinery
• Process control, water treatment, HVAC
• High‑speed machines requiring fast logic & large I/O
• Retrofit projects (Q‑series replacement for older systems)
