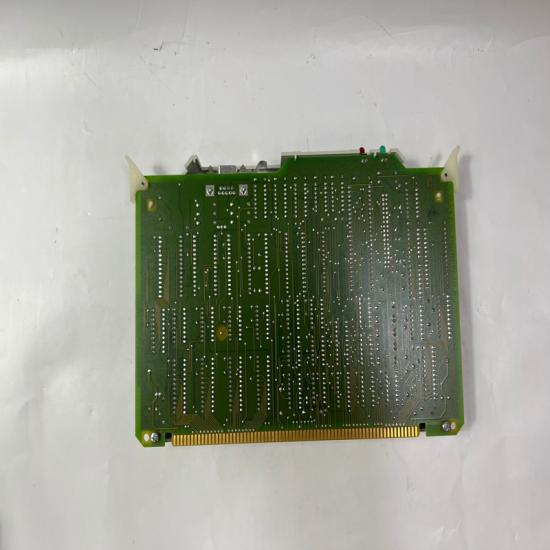

Honeywell TK-PRR021 Redundancy Module

Basic Overview

Core Technical Specifications

Electrical Parameters

• Chassis slot occupation: 2 slots per module
• Power consumption:

  24VDC supply: 0.09A

  5VDC internal bus: 1.0A

  3.3VDC core circuit: 0.75A
• Isolation: 1500VAC dielectric isolation
• Redundancy link speed: Up to 1Gbps high-speed dedicated sync bus
• Failover switching time: <10ms, zero process disturbance
• Safety compliance: SIL 2, IEC 61508, CE, UL certified

Mechanical & Environment

• Dimension: 160 × 90 × 60 mm
• Net weight: 0.45 kg
• Protection grade: IP40, cabinet rack-mounted only
• Operating temperature: 0℃ ~ +60℃
• Storage temperature: -40℃ ~ +85℃
• Humidity: 5%~95% RH non-condensing

Hardware Interface

1. Front panel LED indicators: Power, link status, active/standby, fault alarm
2. Dedicated high-speed redundancy port: Connect two TK-PRR021 modules via special sync cable
3. Backplane gold finger connector: Plug into C200 controller rack backplane for data exchange
4. Integrated status diagnostic circuit for online fault self-check

Core Working Functions

1. Real-time full data mirroring

   Continuously synchronize control logic, I/O status, alarm records, PID parameters, historical data between master and backup C200 controller; standby CPU maintains identical running state as primary.
2. Automatic bumpless failover

   When primary controller fails (power loss, hardware breakdown, communication interruption), the module triggers instant switchover to standby CPU within 10ms; process output maintains stable value without fluctuation, no shutdown risk.
3. Real-time dual-side health monitoring

   Mutual heartbeat detection between two redundant modules, immediately report abnormal communication or controller fault to DCS operation station.
4. Redundancy logic management

   Automatically determine master/standby role after power-on; support manual forced switchover for equipment maintenance without stopping production.
5. Fault event logging

   Record switchover time, fault root cause, module status for post-failure troubleshooting analysis.

System Matching Requirements

• A complete redundant C200 system requires two TK-PRR021 modules + two C200 CPU controllers + dedicated redundancy sync cable
• Applicable DCS platform: Experion PKS, Experion LS, TPS plant control system
• Cannot be used for single non-redundant controller configuration

Key Advantages

1. Millisecond-level seamless switching, suitable for continuous production processes that cannot stop
2. High-speed isolated synchronization bus, anti-electromagnetic interference in chemical/power plant environments
3. Online hot-swap support; replace faulty module without system shutdown
4. Complete front LED diagnosis, quick on-site fault positioning
5. SIL2 safety level, meets high-risk process safety interlock standards

Typical Application Scenarios

• Petrochemical refining, natural gas processing plants
• Thermal power, hydropower station boiler & turbine control systems
• Pharmaceutical continuous production lines
• Large sewage treatment, water supply central DCS
• Fertilizer, coal chemical, hazardous material process control
• All critical industrial processes requiring zero unplanned downtime
