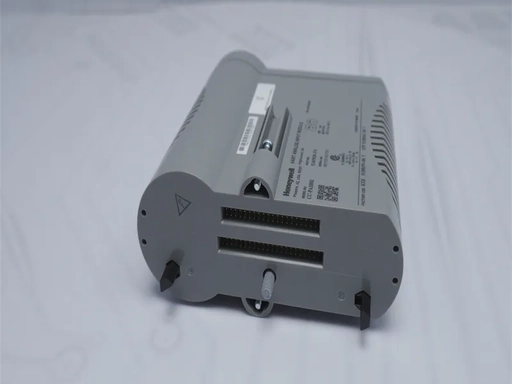

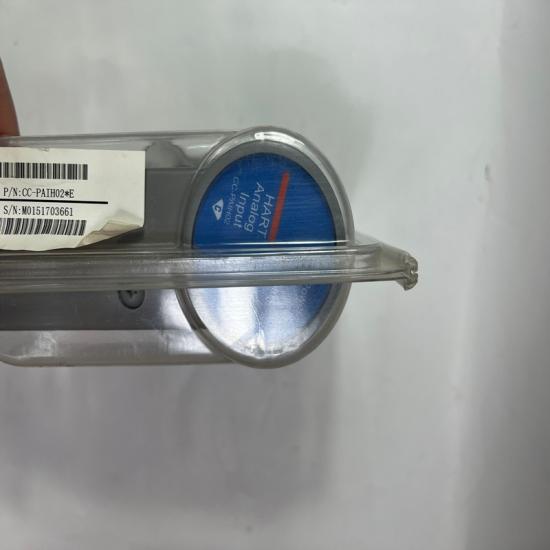

Honeywell CC-PAIH02 Analog Input Module

Overview

Core Technical Specifications

1. Channel Configuration

• Total channels: 16 mixed input channels
  • 12 single-ended inputs / 4 differential inputs, flexible configuration
• Supported signal ranges:

  4–20mA (2-wire transmitter loop power), 0–5V, 1–5V, 0.4–2V DC voltage signals
• ADC resolution: 16-bit high-precision conversion
• Basic measurement accuracy: ±0.075% FS (23.5℃), full temperature drift ±0.15% FS (0~60℃)
• Scan cycle: Configurable 50ms channel sampling rate

2. HART Communication Performance

• Compatible HART versions: HART 5 / HART 6 / HART 7 universal protocols
• Realize two-way digital interaction on existing analog wiring:

  Read transmitter tag, temperature compensation value, flow correction, sensor fault diagnosis

  Remote zero / span calibration, instrument parameter modification without field wiring
• Per-channel independent HART modem, no signal crosstalk between measuring points

3. Anti-interference & Isolation

• Common-mode rejection ratio: 70dB (50/60Hz industrial frequency)
• Channel-to-channel crosstalk: ≤ -60dB
• Built-in RC low-pass filter (-3dB @6.5Hz) to suppress field electromagnetic interference
• Support matched redundant / non-redundant IOTA terminal base: CC-TAIX01 / CC-TAIX11 series terminal assemblies

4. Mechanical & Environmental

• Form factor: Series C vertical plug-in rack module, backplane hot-swappable (RIUP)
• Dimension: 176 × 35.2 × 212 mm; weight ~0.7kg
• Operating temperature: 0℃ ~ +60℃; storage temperature: -40℃ ~ +85℃
• Humidity: 5%–95% RH non-condensing
• Protection grade: IP20 (for cabinet internal installation)
• Certifications: UL508, CE, FM Class I Div.2 hazardous area approval, ATEX compliant

Key Features

1. High-density integrated design

   16-channel single module reduces cabinet I/O slot occupation, lower spare parts inventory cost compared with 8-channel modules.
2. Native HART all-in-one function

   No additional HART expansion card required; simultaneously collect analog process value and digital instrument diagnostic information, realize intelligent field device management.
3. Complete self-diagnosis system

   Real-time detection of loop open circuit, short circuit, over-range, module communication failure, channel abnormal alarm, fault status uploaded to Experion SCADA system.
4. Redundancy support

   Can be paired with redundant IOTA terminal base to realize full channel redundancy, suitable for high-reliability critical process loops.
5. Hot plug & play maintenance

   Module can be replaced online without stopping the whole controller, minimize production downtime during maintenance.
6. Wide signal compatibility

   Adapt to 2-wire loop-powered transmitters and self-powered voltage signal sensors, covering pressure, temperature, flow, liquid level all standard process measuring instruments.

Application Scenarios

• Petrochemical refinery, chemical plant reactor, pipeline flow/pressure/temperature monitoring
• Thermal power plant boiler, turbine auxiliary parameter measurement
• Water treatment, pharmaceutical, metallurgy continuous production DCS measurement system
• Marine ship engine room automation, LNG storage and transportation process monitoring
• Hazardous area Class I Div.2 process control cabinets with large quantity of HART smart transmitters
