GE IS420ESWBH1A Ethernet Switch Module

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

                                                                                                                                                                                                                      • GE IS420ESWBH1A Ethernet Switch Module

                                                                                                                                                                                                                        Product Description

                                                                                                                                                                                                                        The GE IS420ESWBH1A is an Industrial Ethernet Switch / IONet Switch Module designed for GE Mark VIe and Mark VIeS turbine control systems. It provides reliable network communication between control system components through copper Ethernet ports and fiber optic connections, supporting high-speed and deterministic data transmission in industrial environments.

                                                                                                                                                                                                                        Technical Specifications

                                                                                                                                                                                                                        • Brand: GE (General Electric)
                                                                                                                                                                                                                        • Model: IS420ESWBH1A
                                                                                                                                                                                                                        • Product Type: Industrial Ethernet Switch Module
                                                                                                                                                                                                                        • Series: Mark VIe / Mark VIeS
                                                                                                                                                                                                                        • Network Type: IONet Industrial Ethernet
                                                                                                                                                                                                                        • Copper Ports: 16 × 10/100Base-TX RJ45 ports
                                                                                                                                                                                                                        • Fiber Port: 1 × 100Base-FX Multimode Fiber (LC connector)
                                                                                                                                                                                                                        • Power Supply: 24/28 VDC
                                                                                                                                                                                                                        • Mounting: DIN Rail mounting
                                                                                                                                                                                                                        • Cooling: Natural convection cooling
                                                                                                                                                                                                                        • Operating Temperature: -40°C to +70°C
                                                                                                                                                                                                                        • Dimensions: Approx. 188 × 86 × 56 mm
                                                                                                                                                                                                                        • Cable Type: Cat 5e UTP with RJ45 connectors
                                                                                                                                                                                                                        • Application System: GE Mark VIe turbine control platform

                                                                                                                                                                                                                        Advantages & Features

                                                                                                                                                                                                                        • Designed specifically for GE Mark VIe control systems
                                                                                                                                                                                                                        • Provides reliable industrial Ethernet communication
                                                                                                                                                                                                                        • Supports copper and fiber hybrid network connections
                                                                                                                                                                                                                        • High port density with 16 Ethernet ports
                                                                                                                                                                                                                        • Wide temperature range for harsh industrial environments
                                                                                                                                                                                                                        • Compact DIN rail installation design
                                                                                                                                                                                                                        • Improves network reliability and system availability
                                                                                                                                                                                                                        • Suitable for critical power and automation applications

                                                                                                                                                                                                                        Applications

                                                                                                                                                                                                                        • Gas turbine control systems
                                                                                                                                                                                                                        • Steam turbine control systems
                                                                                                                                                                                                                        • Power generation plants
                                                                                                                                                                                                                        • Oil & gas facilities
                                                                                                                                                                                                                        • Industrial automation networks
                                                                                                                                                                                                                        • GE Speedtronic Mark VIe control systems
                                                                                                                                                                                                                        • Process control communication networks

                                                                                                                                                                                                                        Notes / Precautions

                                                                                                                                                                                                                        • Verify compatibility with GE Mark VIe / Mark VIeS systems before installation
                                                                                                                                                                                                                        • Confirm network configuration and IONet settings
                                                                                                                                                                                                                        • Use correct Ethernet and fiber cable specifications
                                                                                                                                                                                                                        • Ensure stable 24/28 VDC power supply
                                                                                                                                                                                                                        • Avoid installation in environments beyond rated temperature range
                                                                                                                                                                                                                        • Configuration and commissioning should be performed by qualified technicians

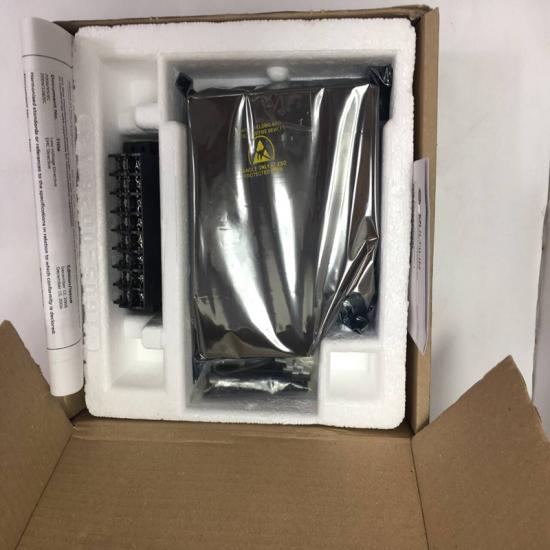

The structure and details of the product：
