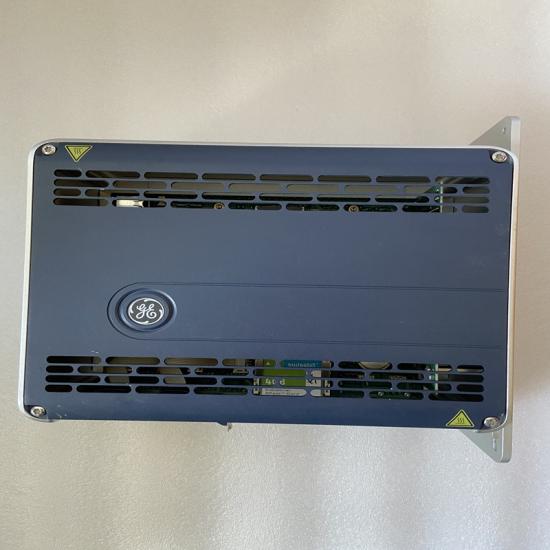

GE IS220PTURH1A Mark VIe Turbine I/O Pack

IS220PTURH1A
IS220PTURH1A

GE IS220PTURH1A Mark VIe Turbine I/O Pack

GE IS220PTURH1A Mark VIe Turbine I/O Pack

  • Item NO.:

    IS220PTURH1A

  • Payment:

    T/T

  • Price:

    $938/

  • Product Origin:

    USA

  • Color:

    NEW

  • Product weight:

    1.21KG

  • Lead Time:

    In stock
Inquire Now

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

                                                                                                                                                                                                                                                                                                                                                                                                                            • https://images.openai.com/static-rsc-4/Vgs6aypqnXz0rXWbEKTg1hxTCPDDD7En3mIlkLTX5VgQXmMQ5b6_k88VkMnUVEvBjyH3_EEB7MfSX7cYX8WE_3WmmEzJYps-IZ-2w4erFkpepkbBbqidKlQrfQF_L6sHJnOqXXuAJdFTlYUu8UBKDZ6Ca7kJSyvx2fc5zrQBnbnLmdGwnlSFGswDzp9X3n0C?purpose=fullsize

                                                                                                                                                                                                                                                                                                                                                                                                                            • GE IS220PTURH1A Mark VIe Primary Turbine Trip I/O Pack

                                                                                                                                                                                                                                                                                                                                                                                                                              Product Overview:
                                                                                                                                                                                                                                                                                                                                                                                                                              The GE IS220PTURH1A is more specifically a PTUR Turbine-Specific Primary Trip I/O Pack, rather than a general-purpose Turbine I/O Pack. It provides the interface between the Mark VIe I/O Ethernet network and turbine protection terminal boards. GE documentation specifies its use with the IS200TRPAH1A terminal board.

                                                                                                                                                                                                                                                                                                                                                                                                                              Key Technical Specifications

                                                                                                                                                                                                                                                                                                                                                                                                                              Parameter Specification
                                                                                                                                                                                                                                                                                                                                                                                                                              Brand GE General Electric
                                                                                                                                                                                                                                                                                                                                                                                                                              Model IS220PTURH1A
                                                                                                                                                                                                                                                                                                                                                                                                                              Functional Acronym PTUR
                                                                                                                                                                                                                                                                                                                                                                                                                              Product Type Turbine-Specific Primary Trip I/O Pack
                                                                                                                                                                                                                                                                                                                                                                                                                              Series Mark VIe
                                                                                                                                                                                                                                                                                                                                                                                                                              Main Function Primary Turbine Protection / Trip
                                                                                                                                                                                                                                                                                                                                                                                                                              Speed Inputs 4 × Passive Magnetic Pickup Inputs
                                                                                                                                                                                                                                                                                                                                                                                                                              Communication 2 × 10/100 Mbps Ethernet IONet
                                                                                                                                                                                                                                                                                                                                                                                                                              Power Supply 28 VDC nominal
                                                                                                                                                                                                                                                                                                                                                                                                                              Supply Range 27.4–28.6 VDC
                                                                                                                                                                                                                                                                                                                                                                                                                              Maximum Current 0.41 A DC
                                                                                                                                                                                                                                                                                                                                                                                                                              TRPA Voltage Inputs 16–140 VDC
                                                                                                                                                                                                                                                                                                                                                                                                                              E-Stop Input 18–140 VDC
                                                                                                                                                                                                                                                                                                                                                                                                                              Speed Input Range -15 to +15 VDC
                                                                                                                                                                                                                                                                                                                                                                                                                              E-Stop Output 28 VDC open-circuit
                                                                                                                                                                                                                                                                                                                                                                                                                              Contact Output 24–28 VDC, up to 7 A
                                                                                                                                                                                                                                                                                                                                                                                                                              Terminal Board IS200TRPAH1A
                                                                                                                                                                                                                                                                                                                                                                                                                              Output Connector DC-62
                                                                                                                                                                                                                                                                                                                                                                                                                              Architecture Simplex / Redundant protection configurations

                                                                                                                                                                                                                                                                                                                                                                                                                              The PTUR pack handles turbine speed signals and, depending on the terminal-board configuration, additional turbine protection signals including voltage, shaft and flame-monitoring functions.

                                                                                                                                                                                                                                                                                                                                                                                                                              Advantages & Features

                                                                                                                                                                                                                                                                                                                                                                                                                              • Dedicated primary turbine trip/protection function
                                                                                                                                                                                                                                                                                                                                                                                                                              • Four high-speed magnetic pickup inputs
                                                                                                                                                                                                                                                                                                                                                                                                                              • Supports turbine speed and zero-speed monitoring
                                                                                                                                                                                                                                                                                                                                                                                                                              • Dual Ethernet interfaces for IONet connectivity
                                                                                                                                                                                                                                                                                                                                                                                                                              • Built-in processor, memory and diagnostic functions
                                                                                                                                                                                                                                                                                                                                                                                                                              • Supports redundant turbine protection architectures
                                                                                                                                                                                                                                                                                                                                                                                                                              • Designed for critical Mark VIe turbine-control applications

                                                                                                                                                                                                                                                                                                                                                                                                                              Typical Applications

                                                                                                                                                                                                                                                                                                                                                                                                                              • Gas turbine protection
                                                                                                                                                                                                                                                                                                                                                                                                                              • Steam turbine protection
                                                                                                                                                                                                                                                                                                                                                                                                                              • Turbine overspeed monitoring
                                                                                                                                                                                                                                                                                                                                                                                                                              • Emergency trip systems
                                                                                                                                                                                                                                                                                                                                                                                                                              • Generator and turbine protection
                                                                                                                                                                                                                                                                                                                                                                                                                              • Power-generation plants
                                                                                                                                                                                                                                                                                                                                                                                                                              • GE Mark VIe Speedtronic control systems
