                                                                                                                                                                                                                                                                                                                                • GE IS220PPROH1A Protection Module

                                                                                                                                                                                                                                                                                                                                  Product Overview

                                                                                                                                                                                                                                                                                                                                  Model: IS220PPROH1A
                                                                                                                                                                                                                                                                                                                                  Series: Mark VIe Turbine Control System
                                                                                                                                                                                                                                                                                                                                  Manufacturer: General Electric (GE)

                                                                                                                                                                                                                                                                                                                                  The GE IS220PPROH1A is a Backup Turbine Protection I/O Pack designed for GE Mark VIe Speedtronic turbine control systems. It provides an independent backup protection function for turbine overspeed monitoring, generator synchronization checking, and emergency protection applications. It works with dedicated terminal boards to provide high-reliability protection for critical rotating equipment.

                                                                                                                                                                                                                                                                                                                                  ---

                                                                                                                                                                                                                                                                                                                                  Technical Specifications

                                                                                                                                                                                                                                                                                                                                  • Product Type: Backup Turbine Protection I/O Module
                                                                                                                                                                                                                                                                                                                                  • Model: IS220PPROH1A
                                                                                                                                                                                                                                                                                                                                  • Series: GE Mark VIe Speedtronic
                                                                                                                                                                                                                                                                                                                                  • Function: Turbine protection and monitoring
                                                                                                                                                                                                                                                                                                                                  • Main Functions:
                                                                                                                                                                                                                                                                                                                                    • Backup overspeed protection
                                                                                                                                                                                                                                                                                                                                    • Generator synchronization monitoring
                                                                                                                                                                                                                                                                                                                                    • Independent watchdog protection
                                                                                                                                                                                                                                                                                                                                    • Emergency trip signal processing
                                                                                                                                                                                                                                                                                                                                  • Power Supply: 28 VDC
                                                                                                                                                                                                                                                                                                                                  • Communication Interface: Dual Ethernet I/O Network (IONet)
                                                                                                                                                                                                                                                                                                                                  • Processor: Local processor for signal processing and diagnostics
                                                                                                                                                                                                                                                                                                                                  • Compatible Terminal Boards:
                                                                                                                                                                                                                                                                                                                                    • IS200SPROH1A
                                                                                                                                                                                                                                                                                                                                    • IS200SPROH2A
                                                                                                                                                                                                                                                                                                                                    • IS200TPROH1C
                                                                                                                                                                                                                                                                                                                                    • IS200TPROH2C
                                                                                                                                                                                                                                                                                                                                    • IS200TREAH1A
                                                                                                                                                                                                                                                                                                                                    • IS200TREAH3A
                                                                                                                                                                                                                                                                                                                                  • Configuration: Simplex / TMR (Triple Modular Redundancy) systems
                                                                                                                                                                                                                                                                                                                                  • Installation: GE Mark VIe control cabinet

                                                                                                                                                                                                                                                                                                                                  ---

                                                                                                                                                                                                                                                                                                                                  Advantages & Features

                                                                                                                                                                                                                                                                                                                                  • Independent Turbine Protection
                                                                                                                                                                                                                                                                                                                                    Provides an additional protection layer independent from the primary turbine control system.
                                                                                                                                                                                                                                                                                                                                  • High Safety Reliability
                                                                                                                                                                                                                                                                                                                                    Designed for critical applications requiring fast fault detection and protective action.
                                                                                                                                                                                                                                                                                                                                  • Overspeed Protection Function
                                                                                                                                                                                                                                                                                                                                    Helps protect turbines from dangerous overspeed conditions.
                                                                                                                                                                                                                                                                                                                                  • Redundant System Support
                                                                                                                                                                                                                                                                                                                                    Supports TMR configurations to improve system availability and fault tolerance.
                                                                                                                                                                                                                                                                                                                                  • Fast Communication
                                                                                                                                                                                                                                                                                                                                    Dual Ethernet interfaces provide reliable communication with Mark VIe controllers.
                                                                                                                                                                                                                                                                                                                                  • Industrial Grade Design
                                                                                                                                                                                                                                                                                                                                    Suitable for continuous operation in demanding power generation environments.

                                                                                                                                                                                                                                                                                                                                  ---

                                                                                                                                                                                                                                                                                                                                  Applications

                                                                                                                                                                                                                                                                                                                                  • Gas Turbine Control Systems
                                                                                                                                                                                                                                                                                                                                  • Steam Turbine Protection Systems
                                                                                                                                                                                                                                                                                                                                  • Power Generation Plants
                                                                                                                                                                                                                                                                                                                                  • Generator Synchronization Systems
                                                                                                                                                                                                                                                                                                                                  • Oil & Gas Turbine Equipment
                                                                                                                                                                                                                                                                                                                                  • Rotating Machinery Protection
                                                                                                                                                                                                                                                                                                                                  • Industrial Safety Control Systems

                                                                                                                                                                                                                                                                                                                                  ---

                                                                                                                                                                                                                                                                                                                                  Precautions

                                                                                                                                                                                                                                                                                                                                  • Confirm compatibility with the GE Mark VIe system before installation.
                                                                                                                                                                                                                                                                                                                                  • Verify terminal board model and wiring configuration.
                                                                                                                                                                                                                                                                                                                                  • Ensure 28 VDC power supply meets requirements.
                                                                                                                                                                                                                                                                                                                                  • Use proper grounding and shielding methods.
                                                                                                                                                                                                                                                                                                                                  • Handle the module with anti-static protection.
                                                                                                                                                                                                                                                                                                                                  • Perform protection testing after installation or replacement.

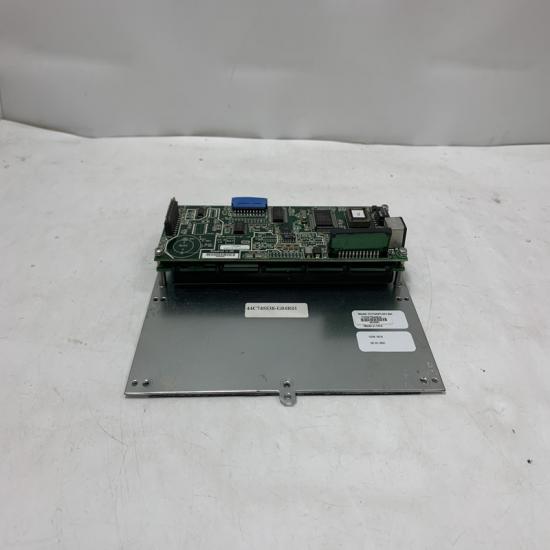

The structure and details of the product：
