                                                                                                                                                                                                                                                                                                                                • GE IS220PAICH1B Analog I/O Module

                                                                                                                                                                                                                                                                                                                                  Product Overview

                                                                                                                                                                                                                                                                                                                                  Model: IS220PAICH1B
                                                                                                                                                                                                                                                                                                                                  Series: Mark VIe Turbine Control System
                                                                                                                                                                                                                                                                                                                                  Manufacturer: General Electric (GE)

                                                                                                                                                                                                                                                                                                                                  The GE IS220PAICH1B is a PAIC Analog Input/Output Module (I/O Pack) designed for GE Mark VIe turbine control systems. It provides the electrical interface between I/O Ethernet networks and analog terminal boards, enabling accurate acquisition and processing of analog field signals for turbine control and monitoring applications.

                                                                                                                                                                                                                                                                                                                                  ---

                                                                                                                                                                                                                                                                                                                                  Technical Specifications

                                                                                                                                                                                                                                                                                                                                  • Product Type: Analog Input/Output Module (PAIC I/O Pack)
                                                                                                                                                                                                                                                                                                                                  • Model: IS220PAICH1B
                                                                                                                                                                                                                                                                                                                                  • Series: GE Mark VIe Speedtronic
                                                                                                                                                                                                                                                                                                                                  • Function: Analog signal acquisition and output control
                                                                                                                                                                                                                                                                                                                                  • Analog Input Channels: Up to 10 channels
                                                                                                                                                                                                                                                                                                                                  • Input Signal Types:
                                                                                                                                                                                                                                                                                                                                    • ±5 VDC
                                                                                                                                                                                                                                                                                                                                    • ±10 VDC
                                                                                                                                                                                                                                                                                                                                    • 0–20 mA current input
                                                                                                                                                                                                                                                                                                                                    • ±1 mA current input (channel dependent)
                                                                                                                                                                                                                                                                                                                                  • Analog Output Channels: 2 channels
                                                                                                                                                                                                                                                                                                                                  • Input Resolution: 16-bit ADC
                                                                                                                                                                                                                                                                                                                                  • Output Resolution: 14-bit DAC
                                                                                                                                                                                                                                                                                                                                  • Communication Interface: Dual Ethernet I/O network ports
                                                                                                                                                                                                                                                                                                                                  • Power Supply: 24–28 VDC nominal
                                                                                                                                                                                                                                                                                                                                  • Power Consumption: Approx. 5.3 W
                                                                                                                                                                                                                                                                                                                                  • Terminal Board Compatibility:
                                                                                                                                                                                                                                                                                                                                    • IS200TBAIH1C
                                                                                                                                                                                                                                                                                                                                    • IS200TAIH1A
                                                                                                                                                                                                                                                                                                                                    • IS200TAIH2A
                                                                                                                                                                                                                                                                                                                                  • System Compatibility: GE Mark VIe turbine control system
                                                                                                                                                                                                                                                                                                                                  • Redundancy Support: Simplex / TMR configuration

                                                                                                                                                                                                                                                                                                                                  ---

                                                                                                                                                                                                                                                                                                                                  Advantages & Features

                                                                                                                                                                                                                                                                                                                                  • High Accuracy Analog Processing
                                                                                                                                                                                                                                                                                                                                    Provides precise acquisition and conversion of field analog signals for reliable turbine control.
                                                                                                                                                                                                                                                                                                                                  • Multiple Signal Compatibility
                                                                                                                                                                                                                                                                                                                                    Supports voltage and current input signals, offering flexible field device integration.
                                                                                                                                                                                                                                                                                                                                  • Fast Data Acquisition
                                                                                                                                                                                                                                                                                                                                    Enables rapid signal processing for real-time monitoring and control.
                                                                                                                                                                                                                                                                                                                                  • Reliable Ethernet Communication
                                                                                                                                                                                                                                                                                                                                    Provides stable communication between I/O networks and control systems.
                                                                                                                                                                                                                                                                                                                                  • TMR System Support
                                                                                                                                                                                                                                                                                                                                    Suitable for high-availability turbine protection and control applications.
                                                                                                                                                                                                                                                                                                                                  • Industrial Grade Reliability
                                                                                                                                                                                                                                                                                                                                    Designed for continuous operation in demanding power generation environments.

                                                                                                                                                                                                                                                                                                                                  ---

                                                                                                                                                                                                                                                                                                                                  Applications

                                                                                                                                                                                                                                                                                                                                  • Gas Turbine Control Systems
                                                                                                                                                                                                                                                                                                                                  • Steam Turbine Control Systems
                                                                                                                                                                                                                                                                                                                                  • Power Generation Plants
                                                                                                                                                                                                                                                                                                                                  • Turbine Monitoring Systems
                                                                                                                                                                                                                                                                                                                                  • Compressor Control Systems
                                                                                                                                                                                                                                                                                                                                  • Industrial Process Automation
                                                                                                                                                                                                                                                                                                                                  • Energy Management Systems

                                                                                                                                                                                                                                                                                                                                  ---

                                                                                                                                                                                                                                                                                                                                  Precautions

                                                                                                                                                                                                                                                                                                                                  • Confirm compatibility with the GE Mark VIe system before installation.
                                                                                                                                                                                                                                                                                                                                  • Verify terminal board type and wiring configuration.
                                                                                                                                                                                                                                                                                                                                  • Check input/output signal type before configuration.
                                                                                                                                                                                                                                                                                                                                  • Ensure correct 24VDC power supply connection.
                                                                                                                                                                                                                                                                                                                                  • Use proper grounding and shielding for analog signals.
                                                                                                                                                                                                                                                                                                                                  • Handle electronic modules with anti-static protection.
                                                                                                                                                                                                                                                                                                                            •

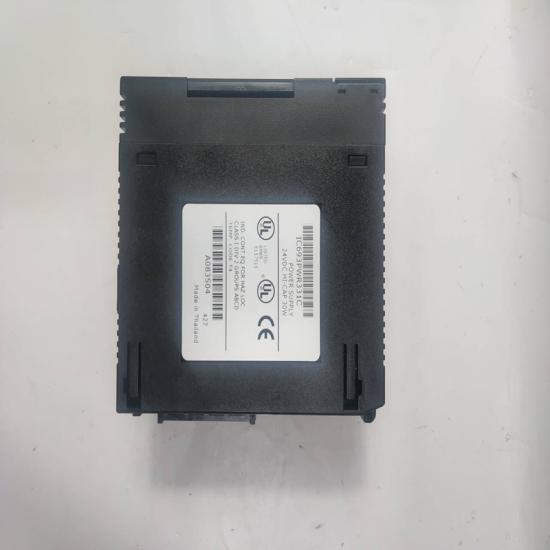

The structure and details of the product：
