                                                                                                                                                                                                                                                                                                                GE IS200TRTDH1CCC RTD Input Board

                                                                                                                                                                                                                                                                                                                Product Description

                                                                                                                                                                                                                                                                                                                GE IS200TRTDH1CCC is an RTD Input Terminal Board (TRTD) manufactured by General Electric for the Mark VI Speedtronic Turbine Control System. It is designed to collect temperature signals from Resistance Temperature Detector (RTD) sensors and transmit processed temperature data to the turbine control system.

                                                                                                                                                                                                                                                                                                                The board is used in GE gas and steam turbine control applications and supports multiple RTD sensor types for accurate temperature monitoring.

                                                                                                                                                                                                                                                                                                                ---

                                                                                                                                                                                                                                                                                                                Specifications

                                                                                                                                                                                                                                                                                                                • Brand: GE (General Electric)
                                                                                                                                                                                                                                                                                                                • Model: IS200TRTDH1CCC
                                                                                                                                                                                                                                                                                                                • Product Type: RTD Input Terminal Board
                                                                                                                                                                                                                                                                                                                • Series: Mark VI / Speedtronic
                                                                                                                                                                                                                                                                                                                • Functional Acronym: TRTD
                                                                                                                                                                                                                                                                                                                • Input Type: RTD Temperature Input
                                                                                                                                                                                                                                                                                                                • Input Channels: 16 × three-wire RTD inputs
                                                                                                                                                                                                                                                                                                                • Supported RTD Types:
                                                                                                                                                                                                                                                                                                                  • Platinum 10Ω / 100Ω / 200Ω
                                                                                                                                                                                                                                                                                                                  • Copper 10Ω
                                                                                                                                                                                                                                                                                                                  • Nickel 120Ω
                                                                                                                                                                                                                                                                                                                • Input Connection: Two barrier-type terminal blocks
                                                                                                                                                                                                                                                                                                                • Terminal Blocks: 2 × 24 screw terminals
                                                                                                                                                                                                                                                                                                                • Cable Connectors: Female 37-pin connectors
                                                                                                                                                                                                                                                                                                                • Signal Processing: Noise suppression circuitry
                                                                                                                                                                                                                                                                                                                • RTD Measurement Range: Approx. 0.3532–4.054 V
                                                                                                                                                                                                                                                                                                                • Maximum Lead Resistance: 15Ω (two-way cable resistance)
                                                                                                                                                                                                                                                                                                                • Operating Temperature: -30°C to +65°C

                                                                                                                                                                                                                                                                                                                ---

                                                                                                                                                                                                                                                                                                                Functions

                                                                                                                                                                                                                                                                                                                • Receives temperature signals from RTD sensors
                                                                                                                                                                                                                                                                                                                • Converts resistance changes into temperature measurement data
                                                                                                                                                                                                                                                                                                                • Provides field wiring termination for RTD sensors
                                                                                                                                                                                                                                                                                                                • Filters electrical noise and surge interference
                                                                                                                                                                                                                                                                                                                • Transfers temperature data to GE Mark VI turbine controllers

                                                                                                                                                                                                                                                                                                                ---

                                                                                                                                                                                                                                                                                                                Advantages & Features

                                                                                                                                                                                                                                                                                                                • Designed specifically for GE Mark VI turbine control systems
                                                                                                                                                                                                                                                                                                                • Supports multiple industrial RTD sensor types
                                                                                                                                                                                                                                                                                                                • 16-channel temperature input capability
                                                                                                                                                                                                                                                                                                                • High reliability for continuous turbine operation
                                                                                                                                                                                                                                                                                                                • Integrated noise reduction for stable measurement
                                                                                                                                                                                                                                                                                                                • Modular terminal design for easier maintenance

                                                                                                                                                                                                                                                                                                                ---

                                                                                                                                                                                                                                                                                                                Applications

                                                                                                                                                                                                                                                                                                                • Gas turbine control systems
                                                                                                                                                                                                                                                                                                                • Steam turbine monitoring systems
                                                                                                                                                                                                                                                                                                                • Power generation plants
                                                                                                                                                                                                                                                                                                                • Turbine bearing temperature monitoring
                                                                                                                                                                                                                                                                                                                • Generator temperature measurement
                                                                                                                                                                                                                                                                                                                • Industrial process temperature control

                                                                                                                                                                                                                                                                                                                ---

                                                                                                                                                                                                                                                                                                                Notes

                                                                                                                                                                                                                                                                                                                • IS200TRTDH1CCC is an RTD input terminal board, not a standalone PLC module
                                                                                                                                                                                                                                                                                                                • Requires compatible GE Mark VI I/O processor modules
                                                                                                                                                                                                                                                                                                                • Confirm RTD sensor type and wiring method before installation
                                                                                                                                                                                                                                                                                                                • Use shielded wiring to reduce temperature signal interference
                                                                                                                                                                                                                                                                                                                • Verify simplex/TMR system configuration compatibility before replacement

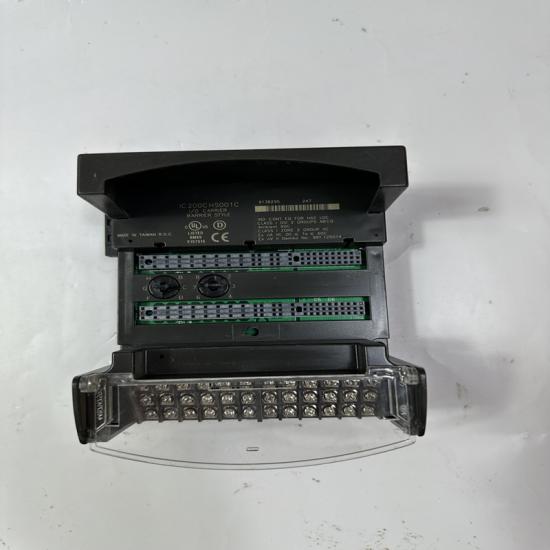

The structure and details of the product：
