                                                                                                                                                                                                                                                                                                                                                      • GE IS200TREGH1BEC Turbine Control Board

                                                                                                                                                                                                                                                                                                                                                        Product Overview

                                                                                                                                                                                                                                                                                                                                                        Model: IS200TREGH1BEC
                                                                                                                                                                                                                                                                                                                                                        Series: Mark VI Speedtronic Turbine Control System
                                                                                                                                                                                                                                                                                                                                                        Manufacturer: General Electric (GE)

                                                                                                                                                                                                                                                                                                                                                        The GE IS200TREGH1BEC is an Emergency Trip Terminal Board (TREG) designed for GE Mark VI turbine control systems. It provides emergency turbine protection interface functions and controls trip solenoid circuits to ensure rapid turbine shutdown during abnormal operating conditions such as overspeed or critical faults.

                                                                                                                                                                                                                                                                                                                                                        ---

                                                                                                                                                                                                                                                                                                                                                        Technical Specifications

                                                                                                                                                                                                                                                                                                                                                        • Product Type: Emergency Trip Terminal Board
                                                                                                                                                                                                                                                                                                                                                        • Model: IS200TREGH1BEC
                                                                                                                                                                                                                                                                                                                                                        • Series: GE Mark VI Speedtronic
                                                                                                                                                                                                                                                                                                                                                        • Function: Turbine emergency trip control interface
                                                                                                                                                                                                                                                                                                                                                        • Main Functions:
                                                                                                                                                                                                                                                                                                                                                          • Emergency overspeed protection
                                                                                                                                                                                                                                                                                                                                                          • Trip solenoid control
                                                                                                                                                                                                                                                                                                                                                          • Emergency shutdown signal processing
                                                                                                                                                                                                                                                                                                                                                          • Turbine protection interface
                                                                                                                                                                                                                                                                                                                                                        • Relay Quantity: 12 relays
                                                                                                                                                                                                                                                                                                                                                          • 9 relays used for trip solenoid voting control
                                                                                                                                                                                                                                                                                                                                                          • 3 relays used for signal voting functions
                                                                                                                                                                                                                                                                                                                                                        • Power Supply: 28 VDC relay coil supply
                                                                                                                                                                                                                                                                                                                                                        • Trip Solenoid Power: 125 VDC circuit interface
                                                                                                                                                                                                                                                                                                                                                        • Compatible System: GE Mark VI turbine control system
                                                                                                                                                                                                                                                                                                                                                        • Architecture Support: Simplex / redundant protection configurations
                                                                                                                                                                                                                                                                                                                                                        • Board Type: PCB terminal board with conformal coating

                                                                                                                                                                                                                                                                                                                                                        ---

                                                                                                                                                                                                                                                                                                                                                        Advantages & Features

                                                                                                                                                                                                                                                                                                                                                        • High-Speed Emergency Protection
                                                                                                                                                                                                                                                                                                                                                          Provides fast response for turbine trip actions during dangerous operating conditions.
                                                                                                                                                                                                                                                                                                                                                        • Independent Safety Function
                                                                                                                                                                                                                                                                                                                                                          Offers an independent protection layer separate from normal turbine control functions.
                                                                                                                                                                                                                                                                                                                                                        • Reliable Trip Solenoid Control
                                                                                                                                                                                                                                                                                                                                                          Controls emergency trip solenoids to quickly shut down fuel or steam valves when required.
                                                                                                                                                                                                                                                                                                                                                        • Redundant Protection Design
                                                                                                                                                                                                                                                                                                                                                          Supports voting logic to improve system reliability and prevent false trips.
                                                                                                                                                                                                                                                                                                                                                        • Industrial Grade Reliability
                                                                                                                                                                                                                                                                                                                                                          Designed for continuous operation in power generation and critical industrial environments.
                                                                                                                                                                                                                                                                                                                                                        • Enhanced Safety Performance
                                                                                                                                                                                                                                                                                                                                                          Helps protect turbines from overspeed, equipment damage, and unsafe operating conditions.

                                                                                                                                                                                                                                                                                                                                                        ---

                                                                                                                                                                                                                                                                                                                                                        Applications

                                                                                                                                                                                                                                                                                                                                                        • Gas Turbine Control Systems
                                                                                                                                                                                                                                                                                                                                                        • Steam Turbine Protection Systems
                                                                                                                                                                                                                                                                                                                                                        • Power Generation Plants
                                                                                                                                                                                                                                                                                                                                                        • Combined Cycle Power Plants
                                                                                                                                                                                                                                                                                                                                                        • Oil & Gas Turbine Equipment
                                                                                                                                                                                                                                                                                                                                                        • Compressor Protection Systems
                                                                                                                                                                                                                                                                                                                                                        • Industrial Safety Control Systems

                                                                                                                                                                                                                                                                                                                                                        ---

                                                                                                                                                                                                                                                                                                                                                        Precautions

                                                                                                                                                                                                                                                                                                                                                        • Verify compatibility with GE Mark VI system before installation.
                                                                                                                                                                                                                                                                                                                                                        • Confirm relay configuration and trip circuit wiring.
                                                                                                                                                                                                                                                                                                                                                        • Check 125 VDC trip power supply connections.
                                                                                                                                                                                                                                                                                                                                                        • Ensure correct grounding and shielding.
                                                                                                                                                                                                                                                                                                                                                        • Handle PCB with anti-static protection.
                                                                                                                                                                                                                                                                                                                                                        • Perform trip function testing after replacement.

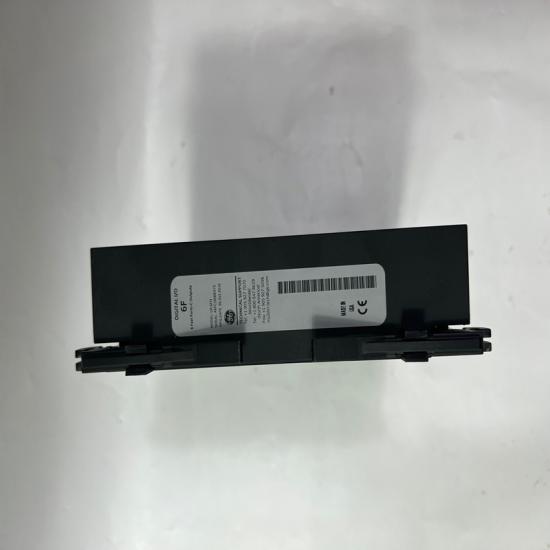

The structure and details of the product：
