                                                                                                                                                                                                                                                                                                                                                  • GE IS200TDBTH6ACD Terminal Board

                                                                                                                                                                                                                                                                                                                                                    Product Overview

                                                                                                                                                                                                                                                                                                                                                    Model: IS200TDBTH6ACD
                                                                                                                                                                                                                                                                                                                                                    Series: Mark VI / Mark VIe Turbine Control System
                                                                                                                                                                                                                                                                                                                                                    Manufacturer: General Electric (GE)

                                                                                                                                                                                                                                                                                                                                                    The GE IS200TDBTH6ACD is a Discrete Input/Output Terminal Board (TDBT) designed for GE Mark VIe turbine control systems. It provides field wiring termination, discrete signal processing, and relay output interfaces for turbine monitoring and control applications. The board supports high-reliability control architectures including TMR (Triple Modular Redundancy) systems.

                                                                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                                                                    Technical Specifications

                                                                                                                                                                                                                                                                                                                                                    • Product Type: Discrete I/O Terminal Board
                                                                                                                                                                                                                                                                                                                                                    • Model: IS200TDBTH6ACD
                                                                                                                                                                                                                                                                                                                                                    • Series: GE Mark VI / Mark VIe Speedtronic
                                                                                                                                                                                                                                                                                                                                                    • Function: Digital input and relay output interface
                                                                                                                                                                                                                                                                                                                                                    • Discrete Inputs: 24 group-isolated contact inputs
                                                                                                                                                                                                                                                                                                                                                    • Relay Outputs: 12 Form-C relay outputs
                                                                                                                                                                                                                                                                                                                                                    • Wetting Voltage: 24 / 48 / 125 VDC selectable
                                                                                                                                                                                                                                                                                                                                                    • Input Type: Dry contact / discrete field signals
                                                                                                                                                                                                                                                                                                                                                    • Output Type: Relay contact output
                                                                                                                                                                                                                                                                                                                                                    • Compatible System: GE Mark VIe Turbine Control System
                                                                                                                                                                                                                                                                                                                                                    • Communication Interface: Connects with GE PDIO I/O Packs
                                                                                                                                                                                                                                                                                                                                                    • Mounting: DIN rail or cabinet panel mounting
                                                                                                                                                                                                                                                                                                                                                    • Protection Features: Signal filtering, surge suppression, electrical isolation

                                                                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                                                                    Advantages & Features

                                                                                                                                                                                                                                                                                                                                                    • High Reliability Digital I/O Control
                                                                                                                                                                                                                                                                                                                                                      Provides stable acquisition and output control of discrete field signals.
                                                                                                                                                                                                                                                                                                                                                    • TMR System Support
                                                                                                                                                                                                                                                                                                                                                      Designed for high-availability turbine control applications requiring redundancy.
                                                                                                                                                                                                                                                                                                                                                    • Multiple Channel Integration
                                                                                                                                                                                                                                                                                                                                                      Combines 24 contact inputs and 12 relay outputs in one compact terminal board.
                                                                                                                                                                                                                                                                                                                                                    • Electrical Isolation Design
                                                                                                                                                                                                                                                                                                                                                      Reduces signal interference and improves system stability.
                                                                                                                                                                                                                                                                                                                                                    • Industrial Grade Performance
                                                                                                                                                                                                                                                                                                                                                      Suitable for continuous operation in power generation and harsh industrial environments.
                                                                                                                                                                                                                                                                                                                                                    • Flexible Installation
                                                                                                                                                                                                                                                                                                                                                      Supports cabinet and DIN rail mounting for easy system integration.

                                                                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                                                                    Applications

                                                                                                                                                                                                                                                                                                                                                    • Gas Turbine Control Systems
                                                                                                                                                                                                                                                                                                                                                    • Steam Turbine Control Systems
                                                                                                                                                                                                                                                                                                                                                    • Power Generation Plants
                                                                                                                                                                                                                                                                                                                                                    • Generator Protection Systems
                                                                                                                                                                                                                                                                                                                                                    • Turbine Emergency Shutdown Systems
                                                                                                                                                                                                                                                                                                                                                    • Industrial Automation Systems
                                                                                                                                                                                                                                                                                                                                                    • Process Control Applications

                                                                                                                                                                                                                                                                                                                                                    ---

                                                                                                                                                                                                                                                                                                                                                    Precautions

                                                                                                                                                                                                                                                                                                                                                    • Verify compatibility with GE Mark VI/Mark VIe system before installation.
                                                                                                                                                                                                                                                                                                                                                    • Confirm input voltage and relay output specifications.
                                                                                                                                                                                                                                                                                                                                                    • Check terminal wiring configuration carefully.
                                                                                                                                                                                                                                                                                                                                                    • Ensure correct grounding and shielding.
                                                                                                                                                                                                                                                                                                                                                    • Handle PCB with anti-static protection.
                                                                                                                                                                                                                                                                                                                                                    • Perform I/O testing after replacement or maintenance.

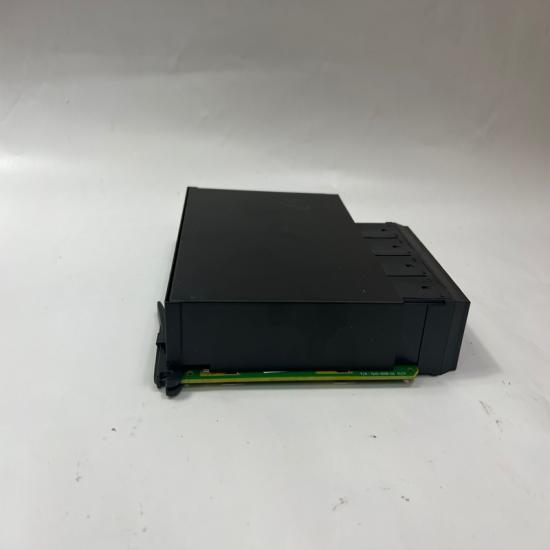

The structure and details of the product：
