                                                                                                                                                                                                                                                                                                                                          • GE IS200SSCAH2AEC Serial Communication Board

                                                                                                                                                                                                                                                                                                                                            Product Overview

                                                                                                                                                                                                                                                                                                                                            Model: IS200SSCAH2AEC
                                                                                                                                                                                                                                                                                                                                            Series: Mark VI / Mark VIe Turbine Control System
                                                                                                                                                                                                                                                                                                                                            Manufacturer: General Electric (GE)

                                                                                                                                                                                                                                                                                                                                            The GE IS200SSCAH2AEC is a Simplex Serial Communication I/O Terminal Board (SSCA) designed for GE Mark VIe turbine control systems. It provides multiple serial communication channels for connecting external devices using RS-232C, RS-422, or RS-485 communication protocols. It works with the GE PSCA I/O Pack to provide reliable serial data exchange between field devices and the turbine control system.

                                                                                                                                                                                                                                                                                                                                            ---

                                                                                                                                                                                                                                                                                                                                            Technical Specifications

                                                                                                                                                                                                                                                                                                                                            • Product Type: Serial Communication I/O Terminal Board
                                                                                                                                                                                                                                                                                                                                            • Model: IS200SSCAH2AEC
                                                                                                                                                                                                                                                                                                                                            • Series: GE Mark VI / Mark VIe
                                                                                                                                                                                                                                                                                                                                            • Communication Channels: 6 channels
                                                                                                                                                                                                                                                                                                                                            • Supported Protocol Interfaces:
                                                                                                                                                                                                                                                                                                                                              • RS-232C
                                                                                                                                                                                                                                                                                                                                              • RS-422
                                                                                                                                                                                                                                                                                                                                              • RS-485
                                                                                                                                                                                                                                                                                                                                            • Terminal Connections:
                                                                                                                                                                                                                                                                                                                                              • Signal lines A, B, C, D
                                                                                                                                                                                                                                                                                                                                              • Signal Return (RET)
                                                                                                                                                                                                                                                                                                                                              • Shield Common (SCOM)
                                                                                                                                                                                                                                                                                                                                            • Communication Mode: Simplex
                                                                                                                                                                                                                                                                                                                                            • Compatible I/O Pack: GE PSCA I/O Pack
                                                                                                                                                                                                                                                                                                                                            • Connector Interface: DC-37 pin connector
                                                                                                                                                                                                                                                                                                                                            • Network Communication: Ethernet communication through I/O Pack
                                                                                                                                                                                                                                                                                                                                            • Mounting: DIN rail or control cabinet installation
                                                                                                                                                                                                                                                                                                                                            • Operating Temperature: Approx. -30°C to +65°C
                                                                                                                                                                                                                                                                                                                                            • Application: Turbine control and industrial serial communication systems

                                                                                                                                                                                                                                                                                                                                            ---

                                                                                                                                                                                                                                                                                                                                            Advantages & Features

                                                                                                                                                                                                                                                                                                                                            • Multi-Channel Serial Communication
                                                                                                                                                                                                                                                                                                                                              Provides up to 6 independent serial communication channels for flexible system integration.
                                                                                                                                                                                                                                                                                                                                            • Multiple Interface Support
                                                                                                                                                                                                                                                                                                                                              Compatible with RS-232C, RS-422, and RS-485 devices, improving connection flexibility.
                                                                                                                                                                                                                                                                                                                                            • Reliable Data Transmission
                                                                                                                                                                                                                                                                                                                                              Designed for stable communication between GE control systems and external equipment.
                                                                                                                                                                                                                                                                                                                                            • Industrial Grade Design
                                                                                                                                                                                                                                                                                                                                              Suitable for continuous operation in demanding turbine and automation environments.
                                                                                                                                                                                                                                                                                                                                            • Easy System Integration
                                                                                                                                                                                                                                                                                                                                              Works with GE Mark VIe control architecture through PSCA I/O Pack.
                                                                                                                                                                                                                                                                                                                                            • Flexible Installation
                                                                                                                                                                                                                                                                                                                                              Supports DIN rail and cabinet mounting configurations.

                                                                                                                                                                                                                                                                                                                                            ---

                                                                                                                                                                                                                                                                                                                                            Applications

                                                                                                                                                                                                                                                                                                                                            • GE Mark VI / Mark VIe Turbine Control Systems
                                                                                                                                                                                                                                                                                                                                            • Gas Turbine Automation
                                                                                                                                                                                                                                                                                                                                            • Steam Turbine Control Systems
                                                                                                                                                                                                                                                                                                                                            • Power Generation Plants
                                                                                                                                                                                                                                                                                                                                            • Industrial Communication Networks
                                                                                                                                                                                                                                                                                                                                            • SCADA and Monitoring Systems
                                                                                                                                                                                                                                                                                                                                            • Process Automation Equipment

                                                                                                                                                                                                                                                                                                                                            ---

                                                                                                                                                                                                                                                                                                                                            Precautions

                                                                                                                                                                                                                                                                                                                                            • Confirm compatibility with GE Mark VI/Mark VIe system before installation.
                                                                                                                                                                                                                                                                                                                                            • Verify communication protocol (RS-232, RS-422, or RS-485) before wiring.
                                                                                                                                                                                                                                                                                                                                            • Use shielded twisted-pair cables for serial communication.
                                                                                                                                                                                                                                                                                                                                            • Check terminal wiring and grounding connections carefully.
                                                                                                                                                                                                                                                                                                                                            • Avoid static discharge when handling the PCB.
                                                                                                                                                                                                                                                                                                                                            • Backup communication settings before replacing the module.

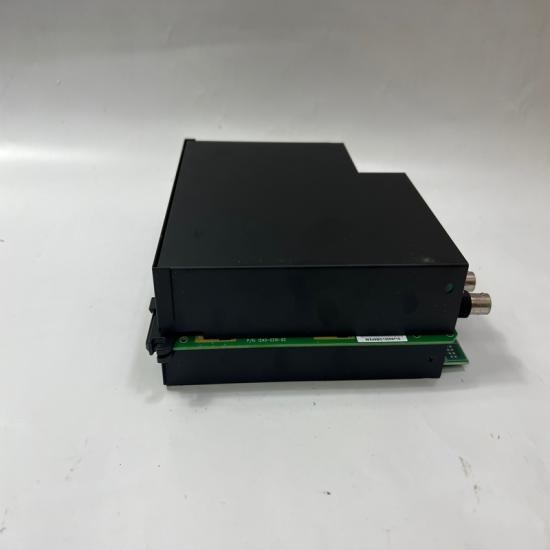

The structure and details of the product：
