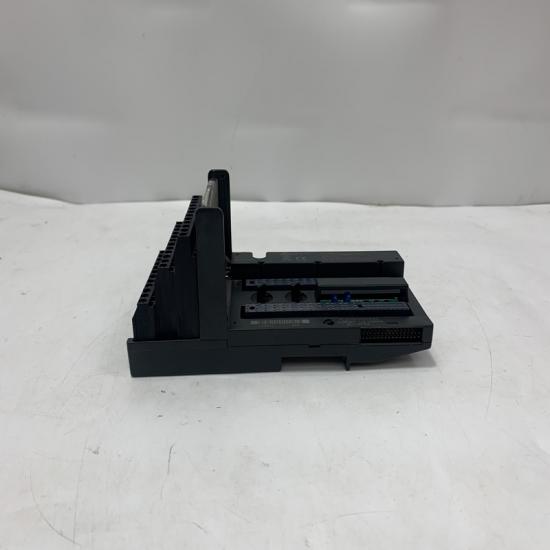

                                                                                                                                                                                                                                                                                                                                                                                                                            • GE IS200JPDBG1A Mark VI JPDB AC Power Distribution Board

                                                                                                                                                                                                                                                                                                                                                                                                                              Key Technical Specifications

                                                                                                                                                                                                                                                                                                                                                                                                                              Parameter Specification
                                                                                                                                                                                                                                                                                                                                                                                                                              Brand GE General Electric
                                                                                                                                                                                                                                                                                                                                                                                                                              Model IS200JPDBG1A
                                                                                                                                                                                                                                                                                                                                                                                                                              Functional Acronym JPDB
                                                                                                                                                                                                                                                                                                                                                                                                                              Product Type AC Power Distribution Board
                                                                                                                                                                                                                                                                                                                                                                                                                              System Mark VI Speedtronic
                                                                                                                                                                                                                                                                                                                                                                                                                              Main Function AC power conditioning, distribution and monitoring
                                                                                                                                                                                                                                                                                                                                                                                                                              Module IS2020JPDB
                                                                                                                                                                                                                                                                                                                                                                                                                              AC Circuits 2 independent circuits
                                                                                                                                                                                                                                                                                                                                                                                                                              Circuit Rating Up to 20 A per circuit
                                                                                                                                                                                                                                                                                                                                                                                                                              AC Input 115 VAC / 230 VAC
                                                                                                                                                                                                                                                                                                                                                                                                                              Branch Outputs Multiple fused / switched outputs
                                                                                                                                                                                                                                                                                                                                                                                                                              Fuses 8 onboard fuses
                                                                                                                                                                                                                                                                                                                                                                                                                              Switches 6 ON/OFF switches
                                                                                                                                                                                                                                                                                                                                                                                                                              Connectors JAC1–JAC6, JAF1, AC Input and ribbon connectors
                                                                                                                                                                                                                                                                                                                                                                                                                              DC Supply Function Provides bulk 28 VDC control power through the associated power-distribution assembly
                                                                                                                                                                                                                                                                                                                                                                                                                              Mounting Cabinet-mounted PCB

                                                                                                                                                                                                                                                                                                                                                                                                                              The JPDB board is part of the Mark VI power-distribution module. Its circuitry handles incoming AC distribution, branch-circuit protection and power-status monitoring; GE documentation describes two AC circuits, each rated up to 20 A at 115/230 VAC.

                                                                                                                                                                                                                                                                                                                                                                                                                              Advantages & Features

                                                                                                                                                                                                                                                                                                                                                                                                                              • Designed for GE Mark VI Speedtronic turbine control systems
                                                                                                                                                                                                                                                                                                                                                                                                                              • Dual AC power distribution circuits
                                                                                                                                                                                                                                                                                                                                                                                                                              • Multiple fused and switched branch outputs
                                                                                                                                                                                                                                                                                                                                                                                                                              • Built-in circuit protection
                                                                                                                                                                                                                                                                                                                                                                                                                              • Passive monitoring of AC levels and fuse status
                                                                                                                                                                                                                                                                                                                                                                                                                              • Six manual ON/OFF switches
                                                                                                                                                                                                                                                                                                                                                                                                                              • Interfaces with associated Mark VI power-distribution components
                                                                                                                                                                                                                                                                                                                                                                                                                              • Suitable for continuous industrial turbine-control applications

                                                                                                                                                                                                                                                                                                                                                                                                                              Typical Applications

                                                                                                                                                                                                                                                                                                                                                                                                                              • GE gas turbine control systems
                                                                                                                                                                                                                                                                                                                                                                                                                              • GE steam turbine control systems
                                                                                                                                                                                                                                                                                                                                                                                                                              • Mark VI control cabinets
                                                                                                                                                                                                                                                                                                                                                                                                                              • Turbine control-rack power distribution
                                                                                                                                                                                                                                                                                                                                                                                                                              • Power-generation plants
                                                                                                                                                                                                                                                                                                                                                                                                                              • Mark VI system refurbishment and maintenance

                                                                                                                                                                                                                                                                                                                                                                                                                              Important Precautions

                                                                                                                                                                                                                                                                                                                                                                                                                              • Verify the complete part number IS200JPDBG1A and revision before replacement.
                                                                                                                                                                                                                                                                                                                                                                                                                              • This is a power-distribution board, not a processor or conventional I/O board.
                                                                                                                                                                                                                                                                                                                                                                                                                              • Verify whether the system uses 115 VAC or 230 VAC input.
                                                                                                                                                                                                                                                                                                                                                                                                                              • Check all fuse and switch positions before energizing.
                                                                                                                                                                                                                                                                                                                                                                                                                              • Proper protective-earth grounding is required for the associated power-distribution module.
                                                                                                                                                                                                                                                                                                                                                                                                                              • Follow the original cabinet wiring and GE installation documentation when replacing the board.
