                                                                                                                                                                                                                                                      • GE IC755CSW07CDA QuickPanel+ HMI

                                                                                                                                                                                                                                                        Product Description

                                                                                                                                                                                                                                                        The GE IC755CSW07CDA QuickPanel+ HMI is a 7-inch touchscreen Human Machine Interface (HMI) Operator Interface Terminal designed for industrial automation applications. It provides real-time visualization, machine operation, data monitoring, and communication between operators and control systems. The unit is part of the GE Intelligent Platforms QuickPanel+ series (now supported by Emerson Automation Solutions).

                                                                                                                                                                                                                                                        The IC755CSW07CDA features an ARM Cortex-A8 processor, widescreen TFT display, multi-touch capability, Ethernet communication, serial communication, and USB interfaces, making it suitable for machine control and process monitoring applications.

                                                                                                                                                                                                                                                        Detailed Specifications

                                                                                                                                                                                                                                                        Parameter	Specification
                                                                                                                                                                                                                                                        Manufacturer	GE Intelligent Platforms / Emerson
                                                                                                                                                                                                                                                        Model	IC755CSW07CDA
                                                                                                                                                                                                                                                        Product Type	QuickPanel+ HMI Operator Interface
                                                                                                                                                                                                                                                        Display Size	7-inch widescreen TFT LCD
                                                                                                                                                                                                                                                        Resolution	800 × 480 pixels (WVGA)
                                                                                                                                                                                                                                                        Touch Type	Projected Capacitive Multi-Touch
                                                                                                                                                                                                                                                        Processor	Freescale i.MX535 1 GHz ARM Cortex-A8
                                                                                                                                                                                                                                                        RAM Memory	512 MB DDR2 SDRAM
                                                                                                                                                                                                                                                        Flash Memory	256 MB SLC NAND Flash
                                                                                                                                                                                                                                                        SRAM	512 KB Battery-Backed SRAM
                                                                                                                                                                                                                                                        Operating System	Windows Embedded Compact 7
                                                                                                                                                                                                                                                        Ethernet	1 × 10/100Base-T RJ45
                                                                                                                                                                                                                                                        Serial Port	1 × RS-232
                                                                                                                                                                                                                                                        USB	2 × USB 2.0 Host + 1 × USB Mini-B Device
                                                                                                                                                                                                                                                        Storage	1 × SD/SDHC Card Slot
                                                                                                                                                                                                                                                        Power Supply	24 VDC ±20%
                                                                                                                                                                                                                                                        Power Consumption	Max. 15 W
                                                                                                                                                                                                                                                        Mounting	Panel Mount / VESA Mount
                                                                                                                                                                                                                                                        Weight	Approx. 0.8 kg



                                                                                                                                                                                                                                                        Advantages & Features

                                                                                                                                                                                                                                                        • 7-inch high-resolution industrial touchscreen display
                                                                                                                                                                                                                                                        • Two-point projected capacitive multi-touch operation
                                                                                                                                                                                                                                                        • Powerful ARM Cortex-A8 processor for smooth HMI performance
                                                                                                                                                                                                                                                        • Supports Ethernet and serial communication with PLC systems
                                                                                                                                                                                                                                                        • Built-in USB and SD card interfaces for data transfer and storage
                                                                                                                                                                                                                                                        • Supports visualization, machine control, and process monitoring
                                                                                                                                                                                                                                                        • Compact design for control cabinet installation
                                                                                                                                                                                                                                                        • Battery-backed SRAM for retaining important data during power interruption



                                                                                                                                                                                                                                                        Applications

                                                                                                                                                                                                                                                        • Industrial automation systems
                                                                                                                                                                                                                                                        • Machine control panels
                                                                                                                                                                                                                                                        • Factory production lines
                                                                                                                                                                                                                                                        • Packaging machinery
                                                                                                                                                                                                                                                        • Process monitoring systems
                                                                                                                                                                                                                                                        • PLC operator stations
                                                                                                                                                                                                                                                        • Manufacturing equipment
                                                                                                                                                                                                                                                        • Building and energy management systems

                                                                                                                                                                                                                                                        Precautions

                                                                                                                                                                                                                                                        • Confirm communication protocol compatibility with the PLC before installation.
                                                                                                                                                                                                                                                        • Verify the correct HMI project software and firmware version.
                                                                                                                                                                                                                                                        • Ensure stable 24 VDC power supply.
                                                                                                                                                                                                                                                        • Protect the touchscreen from strong impact and corrosive environments.
                                                                                                                                                                                                                                                        • Back up the HMI application program before replacement.

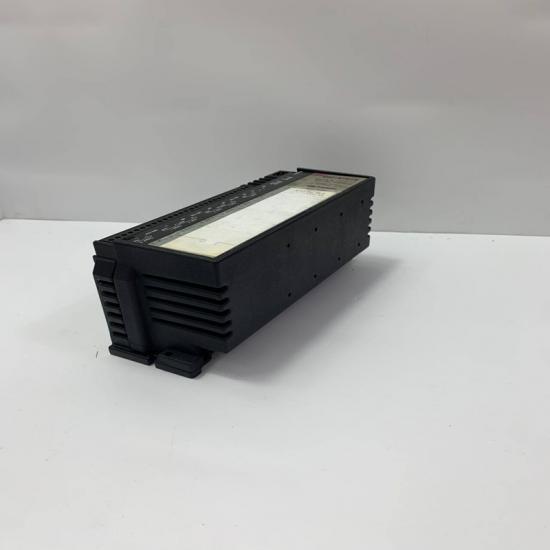

The structure and details of the product：
