                                                                                                                                                                                                                                                                                    • GE IC695PSD040H Power Supply Module

                                                                                                                                                                                                                                                                                      Product Description

                                                                                                                                                                                                                                                                                      GE IC695PSD040H is a PACSystems RX3i DC Power Supply Module manufactured by GE Intelligent Platforms (now Emerson Automation). It provides stable DC power for GE RX3i PLC control systems and is installed on the RX3i universal backplane.

                                                                                                                                                                                                                                                                                      The module converts an external 24VDC input into regulated internal voltages required by RX3i CPU and I/O modules, ensuring reliable operation of industrial automation systems.

                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                      Specifications

                                                                                                                                                                                                                                                                                      • Brand: GE Fanuc / Emerson
                                                                                                                                                                                                                                                                                      • Model: IC695PSD040H
                                                                                                                                                                                                                                                                                      • Product Type: PLC Power Supply Module
                                                                                                                                                                                                                                                                                      • Series: PACSystems RX3i
                                                                                                                                                                                                                                                                                      • Input Voltage:
                                                                                                                                                                                                                                                                                        • Start: 18–30 VDC
                                                                                                                                                                                                                                                                                        • Run: 12–30 VDC
                                                                                                                                                                                                                                                                                      • Nominal Input Voltage: 24 VDC
                                                                                                                                                                                                                                                                                      • Input Power: 60 W maximum
                                                                                                                                                                                                                                                                                      • Output Power: 40 W maximum
                                                                                                                                                                                                                                                                                      • Output Voltage:
                                                                                                                                                                                                                                                                                        • 5.1 VDC
                                                                                                                                                                                                                                                                                        • 3.3 VDC
                                                                                                                                                                                                                                                                                        • 24 VDC auxiliary output
                                                                                                                                                                                                                                                                                      • Output Current:
                                                                                                                                                                                                                                                                                        • 5.1 VDC: 0–6 A
                                                                                                                                                                                                                                                                                        • 3.3 VDC: 0–9 A
                                                                                                                                                                                                                                                                                      • Mounting: RX3i Universal Backplane
                                                                                                                                                                                                                                                                                      • Slot Location: Slot 0
                                                                                                                                                                                                                                                                                      • LED Indicators: 4 status LEDs
                                                                                                                                                                                                                                                                                      • Ride Through Time: Approx. 10 ms

                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                      Functions

                                                                                                                                                                                                                                                                                      • Supplies power to GE PACSystems RX3i PLC racks
                                                                                                                                                                                                                                                                                      • Provides regulated DC outputs for CPU and I/O modules
                                                                                                                                                                                                                                                                                      • Supports 24VDC relay circuit power
                                                                                                                                                                                                                                                                                      • Monitors power supply status and reports faults to the controller
                                                                                                                                                                                                                                                                                      • Maintains stable operation during short input interruptions



                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                      Advantages & Features

                                                                                                                                                                                                                                                                                      • Designed specifically for GE PACSystems RX3i systems
                                                                                                                                                                                                                                                                                      • Reliable industrial-grade power conversion
                                                                                                                                                                                                                                                                                      • Supports high-performance PLC applications
                                                                                                                                                                                                                                                                                      • Compact rack-mounted design
                                                                                                                                                                                                                                                                                      • Provides multiple regulated output voltages
                                                                                                                                                                                                                                                                                      • Suitable for continuous automation operation

                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                      Applications

                                                                                                                                                                                                                                                                                      • Factory automation systems
                                                                                                                                                                                                                                                                                      • Process control equipment
                                                                                                                                                                                                                                                                                      • Industrial PLC cabinets
                                                                                                                                                                                                                                                                                      • Manufacturing lines
                                                                                                                                                                                                                                                                                      • Power and energy automation systems
                                                                                                                                                                                                                                                                                      • Machine control systems

                                                                                                                                                                                                                                                                                      ---

                                                                                                                                                                                                                                                                                      Notes

                                                                                                                                                                                                                                                                                      • IC695PSD040H is a PLC power supply module, not a CPU or I/O module
                                                                                                                                                                                                                                                                                      • Must be installed on a compatible RX3i universal backplane
                                                                                                                                                                                                                                                                                      • Confirm input voltage polarity before wiring
                                                                                                                                                                                                                                                                                      • Check total rack power consumption before installation
                                                                                                                                                                                                                                                                                      • Not designed for redundant power supply configurations

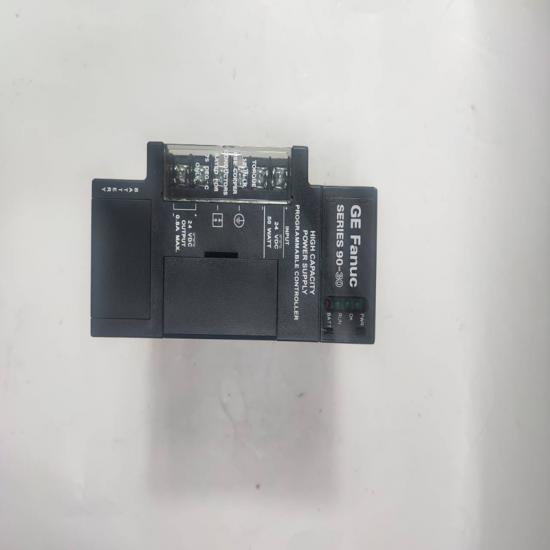

The structure and details of the product：
