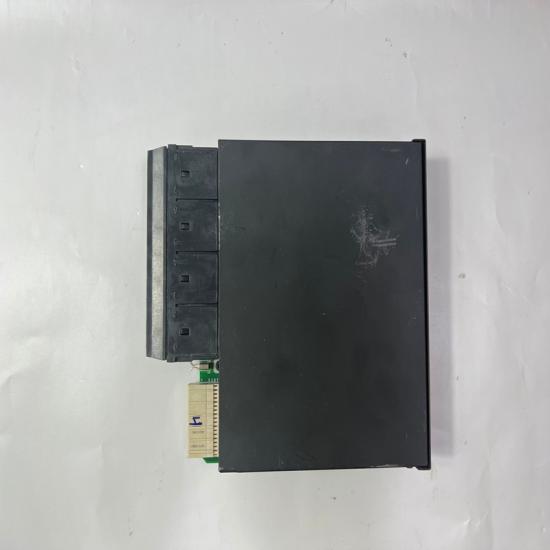

GE IC695CMM002 Communication Module

Item NO.:
IC695CMM002
Payment:
T/T
Price:
$938/
Product Origin:
USA
Color:
NEW
Product weight:
1.21KG
Lead Time:
In stock

- - - - GE IC695CMM002 PACSystems RX3i Communication Module

        Product Overview

        Brand: GE Fanuc / Emerson
        Series: PACSystems RX3i
        Model: IC695CMM002
        Product Type: Serial Communication Module
        Function: A serial communication expansion module designed for PACSystems RX3i PLC systems. It provides two independent isolated serial ports for communication with external devices such as HMIs, SCADA systems, intelligent instruments, drives, and other PLC controllers.

        Technical Specifications

        Module Type: Serial Communication Module

        Series Compatibility: GE PACSystems RX3i

        Installation: RX3i Universal Backplane

        Slot Occupation: 1 slot

        Serial Ports:

        2 × Independent isolated serial ports

        Connector Type: RJ-45

        Communication Interface:

        RS-232

        RS-485 / RS-422

        Communication Mode:

        Full duplex

        Half duplex

        Supported Protocols:

        Modbus Master

        Modbus Slave

        DNP3 Master

        DNP3 Slave

        CCM Slave

        Serial I/O

        Custom protocols

        Communication Parameters

        Baud Rate:

        1200

        2400

        4800

        9600

        19.2K

        38.4K

        57.6K

        115.2K bps

        Data Bits: 7 / 8

        Stop Bits: 1 / 2

        Parity: Even / Odd / None

        Power Requirements

        Backplane Power Consumption:

        3.3 VDC: 0.7 A maximum

        5 VDC: 0.115 A maximum

        Diagnostics

        Module OK LED

        Port fault indication

        Port status LEDs

        Fault status reporting

        Isolation

        Port-to-port isolation

        Port-to-backplane isolation

        250 VAC continuous isolation

        1500 VAC withstand for 1 minute

        Advantages & Features

        Dual Independent Serial Communication

        Provides two isolated serial communication channels, allowing multiple external devices to connect to the RX3i PLC system.

        Multiple Protocol Support

        Supports Modbus, DNP3, CCM, and custom serial protocols, providing flexible integration with different industrial devices.

        Electrical Isolation Protection

        Independent isolation between ports and backplane improves system stability and protects equipment from electrical interference.

        Flexible RS Communication

        Supports RS-232, RS-422, and RS-485 communication modes for compatibility with various industrial equipment.

        High Reliability Industrial Design

        Designed for continuous operation in industrial automation environments with strong communication stability.

        Easy System Expansion

        Allows RX3i systems to add additional serial communication capability without changing the CPU module.

        Typical Applications

        Industrial PLC communication systems

        SCADA monitoring systems

        HMI communication

        Remote terminal units (RTU)

        Motor drives and controllers

        Smart sensors and instruments

        Energy management systems

        Water treatment automation

        Oil & gas process control

        Factory automation equipment

        Precautions

        Confirm compatibility with GE PACSystems RX3i Universal Backplane before installation.

        Configure communication parameters correctly before operation.

        Verify RS-232 / RS-485 / RS-422 wiring methods.

        Use shielded cables in high-noise industrial environments.

        Confirm protocol settings match connected devices.

        Disconnect power before installation or replacement.

        Check LED indicators after startup to confirm communication status.

        Backup PLC configuration before replacing the module.
