                                                                                                                                                                                                • GE IC695ALG616 Analog Input Module

                                                                                                                                                                                                  Product Description

                                                                                                                                                                                                  GE IC695ALG616 is a PACSystems RX3i Non-Isolated Differential Analog Input Module designed for GE Fanuc / Emerson RX3i PLC systems. It provides high-precision analog signal acquisition for industrial process monitoring and control applications.

                                                                                                                                                                                                  The module supports 16 single-ended analog inputs or 8 differential analog inputs and can measure both voltage and current signals, making it suitable for applications such as pressure, temperature, flow, level, and speed monitoring.

                                                                                                                                                                                                  ---

                                                                                                                                                                                                  Technical Parameters

                                                                                                                                                                                                  • Brand: GE Fanuc / Emerson Automation
                                                                                                                                                                                                  • Model: IC695ALG616
                                                                                                                                                                                                  • Series: PACSystems RX3i
                                                                                                                                                                                                  • Product Type: Analog Input Module
                                                                                                                                                                                                  • Input Type: Non-isolated differential analog input
                                                                                                                                                                                                  • Input Channels:
                                                                                                                                                                                                    • 16 × single-ended inputs
                                                                                                                                                                                                    • 8 × differential inputs
                                                                                                                                                                                                  • Analog Input Signals:
                                                                                                                                                                                                    • Current:
                                                                                                                                                                                                      • 0–20 mA
                                                                                                                                                                                                      • 4–20 mA
                                                                                                                                                                                                      • ±20 mA
                                                                                                                                                                                                    • Voltage:
                                                                                                                                                                                                      • ±10 VDC
                                                                                                                                                                                                      • 0–10 VDC
                                                                                                                                                                                                      • ±5 VDC
                                                                                                                                                                                                      • 0–5 VDC
                                                                                                                                                                                                      • 1–5 VDC
                                                                                                                                                                                                  • ADC Resolution: 24-bit conversion
                                                                                                                                                                                                  • Data Format:
                                                                                                                                                                                                    • 32-bit IEEE floating point
                                                                                                                                                                                                    • 16-bit integer stored in 32-bit field
                                                                                                                                                                                                  • Input Filter Settings:
                                                                                                                                                                                                    • 8 Hz
                                                                                                                                                                                                    • 12 Hz
                                                                                                                                                                                                    • 16 Hz
                                                                                                                                                                                                    • 40 Hz
                                                                                                                                                                                                    • 200 Hz
                                                                                                                                                                                                    • 500 Hz
                                                                                                                                                                                                  • Current Input Impedance: 249 Ω ±1%
                                                                                                                                                                                                  • Voltage Input Impedance: >100 kΩ
                                                                                                                                                                                                  • Backplane Installation: RX3i Universal Backplane
                                                                                                                                                                                                  • Power Consumption: Approx. 3.3 VDC / 5 VDC internal supply
                                                                                                                                                                                                  • Operating Temperature: 0–60°C
                                                                                                                                                                                                  • Mounting: One RX3i rack slot

                                                                                                                                                                                                  ---

                                                                                                                                                                                                  Advantages & Features

                                                                                                                                                                                                  • Original GE Fanuc RX3i high-performance analog input module
                                                                                                                                                                                                  • High-resolution 24-bit ADC conversion for accurate measurement
                                                                                                                                                                                                  • Supports multiple voltage and current input ranges
                                                                                                                                                                                                  • Software configurable without hardware jumpers
                                                                                                                                                                                                  • Automatic calibration during startup
                                                                                                                                                                                                  • Built-in diagnostics and fault reporting
                                                                                                                                                                                                  • Supports channel alarm monitoring
                                                                                                                                                                                                  • Provides open-circuit detection and overcurrent/overvoltage protection
                                                                                                                                                                                                  • Suitable for demanding industrial process applications

                                                                                                                                                                                                  ---

                                                                                                                                                                                                  Applications

                                                                                                                                                                                                  • Industrial automation systems
                                                                                                                                                                                                  • Process control systems
                                                                                                                                                                                                  • Power generation equipment
                                                                                                                                                                                                  • Oil & gas automation
                                                                                                                                                                                                  • Chemical processing systems
                                                                                                                                                                                                  • Water treatment facilities
                                                                                                                                                                                                  • Temperature and pressure monitoring
                                                                                                                                                                                                  • Flow and level measurement systems
                                                                                                                                                                                                  • Machine control applications

                                                                                                                                                                                                  ---

                                                                                                                                                                                                  Notes

                                                                                                                                                                                                  • IC695ALG616 is an analog input module, not an analog output module.
                                                                                                                                                                                                  • Requires a compatible GE RX3i Universal Backplane.
                                                                                                                                                                                                  • Terminal block is ordered separately and must match the wiring requirements.
                                                                                                                                                                                                  • Confirm CPU firmware and Proficy Machine Edition compatibility before replacement.
                                                                                                                                                                                                  •

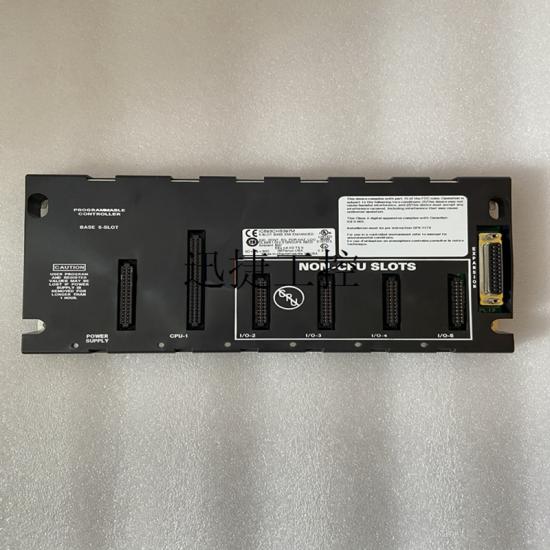

The structure and details of the product：
