GE IC694PWR330B PACSystems RX3i Power Supply

IC694PWR330B
IC694PWR330B

GE IC694PWR330B PACSystems RX3i Power Supply

GE IC694PWR330B PACSystems RX3i Power Supply

  • Item NO.:

    IC694PWR330B

  • Payment:

    T/T

  • Price:

    $938/

  • Product Origin:

    USA

  • Color:

    NEW

  • Product weight:

    1.21KG

  • Lead Time:

    In stock
Inquire Now

We will arrange delivery within 3-5 days after receiving the payment.

Our express delivery: DHL and FedEx.

Quality packing for each product

Destination country all taxes & duty to be paid by buyer

Only part of the brand and model, if you have other product needs, please contact us.

                                                                                                                                                                                                                                                                                                                                                                                                                            • https://images.openai.com/static-rsc-4/tOZVLoNMcBIaRN3Vmz3NG67Iof992Bw2h9coR86QqmIwAD-cY5FmUt-hn5ROVyz-KVabUfSpxqF8Steb34f6om-tccRJ3hE8tNfQrPbpuvtgRdNi9g6CNe6it7FueNqptS6X71xSgjXLFDMBHSDOXoRk0PNED3Y134MJum9piYM7yhwfX9KtBybjJIbrtDzI?purpose=fullsize

                                                                                                                                                                                                                                                                                                                                                                                                                            • GE IC694PWR330B PACSystems RX3i Power Supply

                                                                                                                                                                                                                                                                                                                                                                                                                              The GE IC694PWR330B is a PACSystems RX3i High-Capacity Power Supply Module designed for IC694 Series Serial Expansion Backplanes. It accepts 120/240 VAC or 125 VDC nominal input and provides up to 30 W total output power.

                                                                                                                                                                                                                                                                                                                                                                                                                              Key Technical Specifications

                                                                                                                                                                                                                                                                                                                                                                                                                              Parameter Specification
                                                                                                                                                                                                                                                                                                                                                                                                                              Brand GE Fanuc / GE
                                                                                                                                                                                                                                                                                                                                                                                                                              Model IC694PWR330B
                                                                                                                                                                                                                                                                                                                                                                                                                              Product Type PACSystems RX3i Power Supply Module
                                                                                                                                                                                                                                                                                                                                                                                                                              Series PACSystems RX3i
                                                                                                                                                                                                                                                                                                                                                                                                                              Application Serial Expansion Backplane
                                                                                                                                                                                                                                                                                                                                                                                                                              Nominal Input 120/240 VAC or 125 VDC
                                                                                                                                                                                                                                                                                                                                                                                                                              AC Input Range 85–264 VAC
                                                                                                                                                                                                                                                                                                                                                                                                                              DC Input Range 100–300 VDC
                                                                                                                                                                                                                                                                                                                                                                                                                              Frequency 50/60 Hz
                                                                                                                                                                                                                                                                                                                                                                                                                              Total Output Power 30 W max.
                                                                                                                                                                                                                                                                                                                                                                                                                              5 VDC Output 5.0–5.2 VDC, 30 W max.
                                                                                                                                                                                                                                                                                                                                                                                                                              Relay 24 VDC Output 24–28 VDC, 15 W max.
                                                                                                                                                                                                                                                                                                                                                                                                                              Isolated 24 VDC Output 21.5–28 VDC, 20 W max.
                                                                                                                                                                                                                                                                                                                                                                                                                              5 VDC Overcurrent Limit 7 A max.
                                                                                                                                                                                                                                                                                                                                                                                                                              Isolation 1500 VAC for 1 minute
                                                                                                                                                                                                                                                                                                                                                                                                                              Ride-Through Time 20 ms minimum
                                                                                                                                                                                                                                                                                                                                                                                                                              Mounting RX3i IC694 Expansion Backplane
                                                                                                                                                                                                                                                                                                                                                                                                                              Indicators PWR / OK / RUN

                                                                                                                                                                                                                                                                                                                                                                                                                              The three outputs share a 30 W total power limit; the isolated 24 VDC output can also provide power for external 24 VDC input modules within the specified limits.

                                                                                                                                                                                                                                                                                                                                                                                                                              Features & Advantages

                                                                                                                                                                                                                                                                                                                                                                                                                              • High-capacity 30 W power supply
                                                                                                                                                                                                                                                                                                                                                                                                                              • Supports both AC and high-voltage DC input
                                                                                                                                                                                                                                                                                                                                                                                                                              • Provides 5 VDC, relay 24 VDC and isolated 24 VDC outputs
                                                                                                                                                                                                                                                                                                                                                                                                                              • Built-in overcurrent and overvoltage protection
                                                                                                                                                                                                                                                                                                                                                                                                                              • 1500 VAC input-to-backplane isolation
                                                                                                                                                                                                                                                                                                                                                                                                                              • Designed specifically for GE PACSystems RX3i expansion systems

                                                                                                                                                                                                                                                                                                                                                                                                                              Typical Applications

                                                                                                                                                                                                                                                                                                                                                                                                                              • GE PACSystems RX3i PLC systems
                                                                                                                                                                                                                                                                                                                                                                                                                              • Serial expansion I/O backplanes
                                                                                                                                                                                                                                                                                                                                                                                                                              • Industrial automation
                                                                                                                                                                                                                                                                                                                                                                                                                              • Factory control systems
                                                                                                                                                                                                                                                                                                                                                                                                                              • Process control
                                                                                                                                                                                                                                                                                                                                                                                                                              • Distributed I/O systems

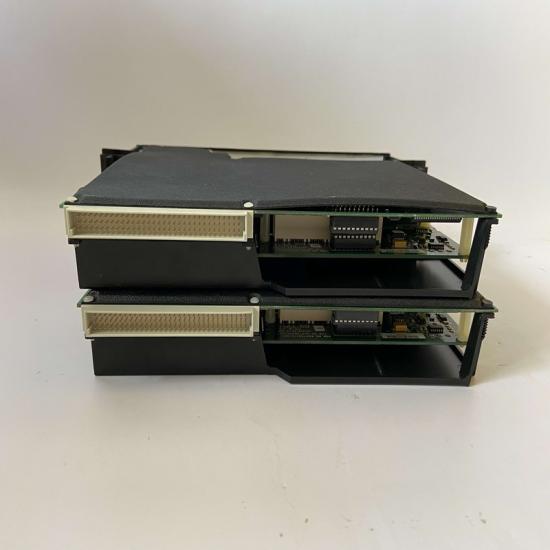

The structure and details of the product：
