                                                                • GE IC694MDL754 Digital Output Module

                                                                  Overview

                                                                  IC694MDL754 is a 32-point sinking digital output module belonging to GE Series 90-30 PLC product line. It supports mixed installation on PACSystems RX3i dual-bus backplanes, enabling reuse of original Series 90-30 field wiring during system upgrades. The module receives logic commands from the CPU and outputs 24VDC transistor signals to drive on-site auxiliary relays, indicator lights and small solenoid valves.

                                                                  Specifications

                                                                  • Total output channels: 32 points, split into two isolated groups of 16 channels each
                                                                  • Output type: Sinking transistor, rated operating voltage 24VDC
                                                                  • Single channel rated load: 0.5 A maximum per point
                                                                  • Galvanic isolation: Isolation between two 16-point groups and backplane bus
                                                                  • Per-channel short-circuit and overcurrent hardware protection
                                                                  • Single-slot rack design, hot-swappable on RX3i backplanes
                                                                  • Independent LED status indicator for each output channel
                                                                  • Operating temperature range: 0°C ~ +60°C (indoor cabinet only)
                                                                  • Backplane power consumption: Low load for multi-module rack configuration

                                                                  Key Functions

                                                                  1. Field actuator driving

                                                                     Convert PLC internal logic signals into 24VDC switching signals to control cabinet status lights, alarm buzzers, small solenoid valves and intermediate relays.
                                                                  2. Fault isolation protection

                                                                     Short circuit or overload fault on one 16-point group will not spread to the other group or damage the rack backplane and CPU.
                                                                  3. Independent channel overcurrent protection

                                                                     Each channel has built-in current limiting circuit; automatically cuts output when overload occurs to prevent module burnout.
                                                                  4. Visual field debugging

                                                                     Channel LEDs directly display on/off status, convenient for wiring inspection, commissioning and fault troubleshooting.
                                                                  5. Cost-effective system reconstruction

                                                                     Compatible with RX3i CPU and IC695 series modules, no need to replace all field cables when upgrading old Series 90-30 control systems.

                                                                  Compatible Equipment

                                                                  • RX3i universal backplanes: IC695CHS007 (7-slot), IC695CHS012 (12-slot)
                                                                  • RX3i CPU modules: IC695CPE305, IC695CPE305BGAE
                                                                  • IC695PSD140 rack power supply module
                                                                  • Proficy Machine Edition programming & configuration software
                                                                  • 24VDC signal lamps, auxiliary control relays, small solenoid valves

                                                                  Applications

                                                                  General industrial discrete control systems:
                                                                  • Thermal power plant auxiliary cabinet indicator light and valve control
                                                                  • Petrochemical process solenoid valve interlock drive
                                                                  • Water treatment pump, valve and alarm circuit control
                                                                  • Factory assembly line equipment status indication and alarm output

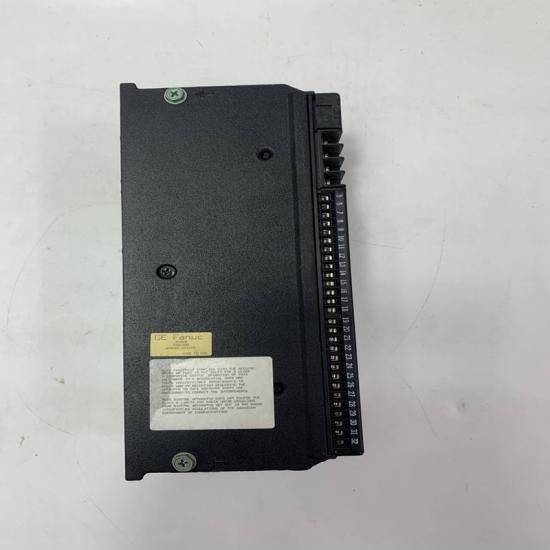

The structure and details of the product：
