GE IC693PWR331E Power Supply

• • • • • • • • • • • • • •

                            • GE IC693PWR331E

                              Power Supply Module (Series 90-30 PLC)

                              Manufacturer: GE Fanuc (GE Automation)



                              Model: IC693PWR331E



                              Type: High-Capacity DC Power Supply



                              Series: Series 90-30 PLC System

                              Specifications

                              • Input Voltage: 21–56 VDC (starts ≥21 VDC; operates down to 18 VDC)
                              • Total Output Power: 30 W (max)
                              • Outputs:
                                • +5 VDC: 30 W (CPU/logic power)
                                • +24 VDC (Relay): 15 W (relay output modules)
                                • +24 VDC (Isolated): 20 W (external sensors/inputs)
                              • Input Power Consumption: 50 W max
                              • Inrush Current: 4 A peak, <100 ms
                              • Holdup Time: ≥10–14 ms
                              • Communication: Front-panel RS‑485 port (for programming/diagnostics)
                              • Indicators: PWR, OK, RUN, BATT (battery-backed RAM)
                              • Operating Temp: −20°C to +60°C; Storage: −40°C to +85°C
                              • Certifications: UL, CE
                              • Mounting: Leftmost slot on 90-30 baseplate

                              Key Features

                              • High Capacity: Delivers full 30 W to +5 V logic rail for high‑I/O systems
                              • Triple Output: Separated +5 V, +24 V relay, and isolated +24 V sensor power
                              • Wide Input Range: 21–56 VDC, suitable for 24 VDC industrial systems
                              • Diagnostics & LEDs: Real‑time status monitoring and fault indication
                              • Battery Backup: Retains RAM data during power loss

                              Applications

                              • GE Series 90-30 PLC Systems: Powers CPU, I/O modules, and external sensors
                              • Industrial Control Panels: 24 VDC‑based automation systems
                              • Machine Automation: Packaging, material handling, and process machinery

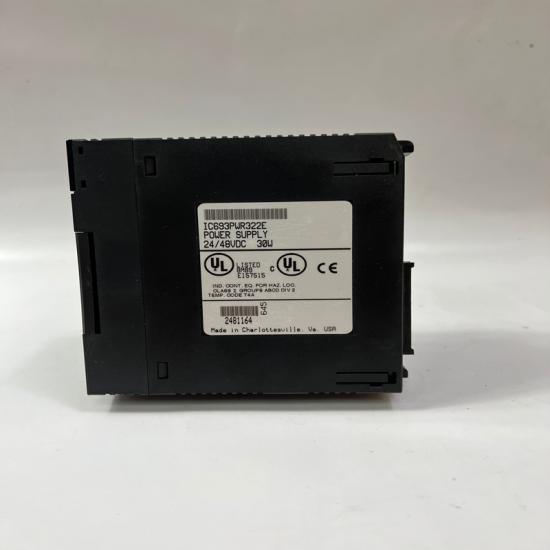

The structure and details of the product：
